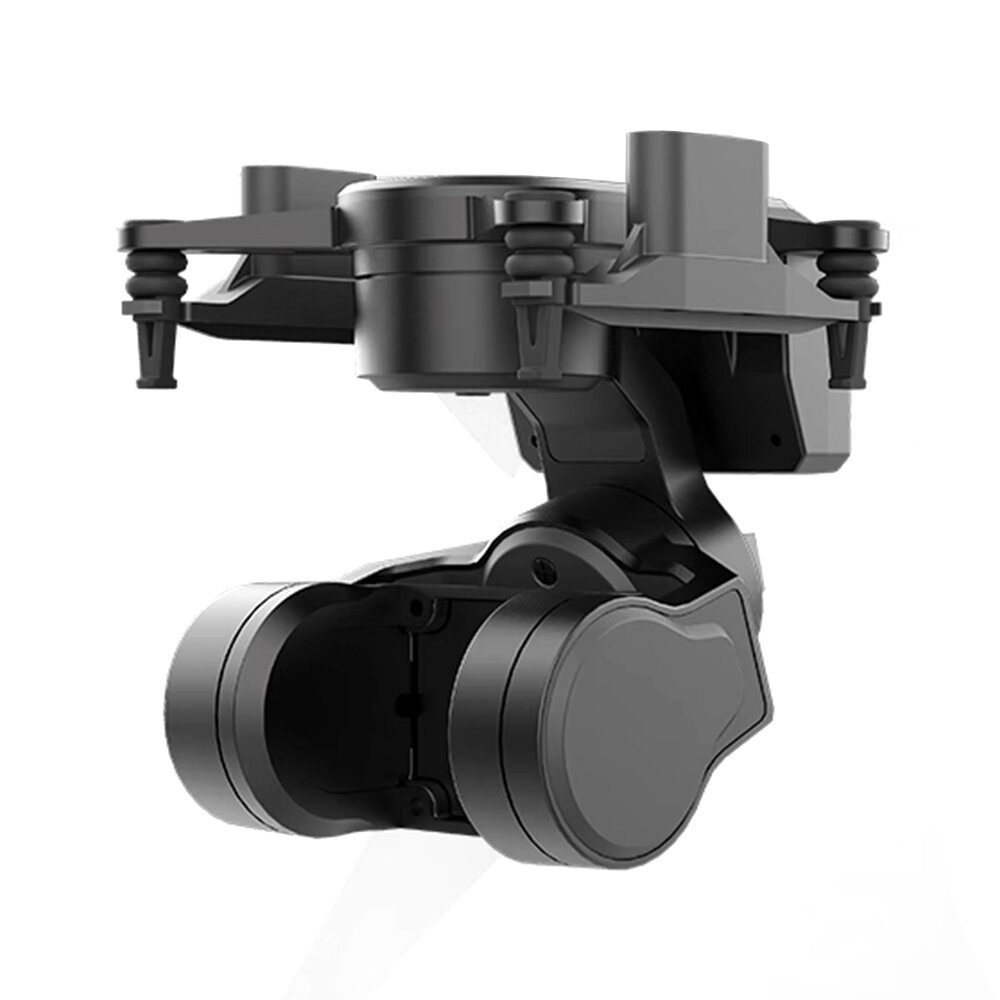

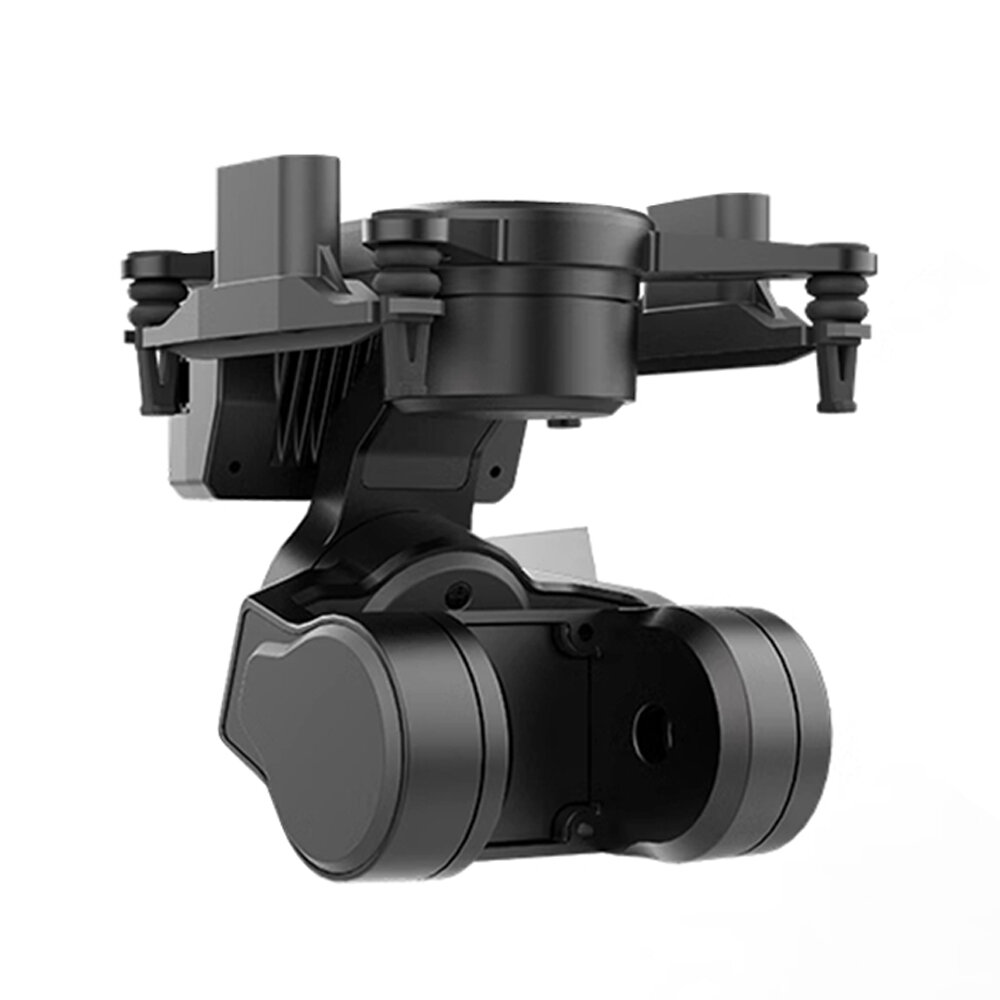

XF C-20T 3-Axis FPV Gimbal for DJI O4/ O4 Pro USB Adjustable Stabilizer with HeadTracking & High-Speed Control( Fixed-Wing/ Racing Drones)
4
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296
XF - Precision Motion Control for FPV
XF specializes in advanced stabilization systems for FPV and drone applications. With years of experience in gimbal technology, we engineer solutionss that meet the demands of professional pilots and content creators. The C-20T 3-Axis Gimbal represents our commitment to high-performance stabilization, designed specifically fo
r DJI O4 and O4 Pro Air Units.
Built for fixed-wing and racing drones, this gimbal delivers smooth, cinematic footage while maintaining the agilityy required for high-speed flight.
Features
- Wide Compatibility:
Works with DJI O4 Pro, DJI O4 and 19mm wide analog cameras or similar devices.
- Durablee Materials:
Crafted from aluminum magnesiumm alloy, ensuring a lightweight and compact design.
- Advanced Stabilization:
Features a 3-axis nonorthogonal mechanical stabilization structure with high-torque motors for exceptional stability against vibrations and high-speed air impacts.
- Multiple Stabilization Modes:
Suitable for various platforms including RC cars, FPV fixed-wing planes, and realistic RC planes.
- Immersive Experience:
When paired with a Headtracker, delivers an immersive, high-quality first-person control experience.
- Versatile Control Options:
Supports Headtracker, UART (private protocol & MAVLink), S.BUS, CRSF, and PWM control.
- Flexible Mounting:

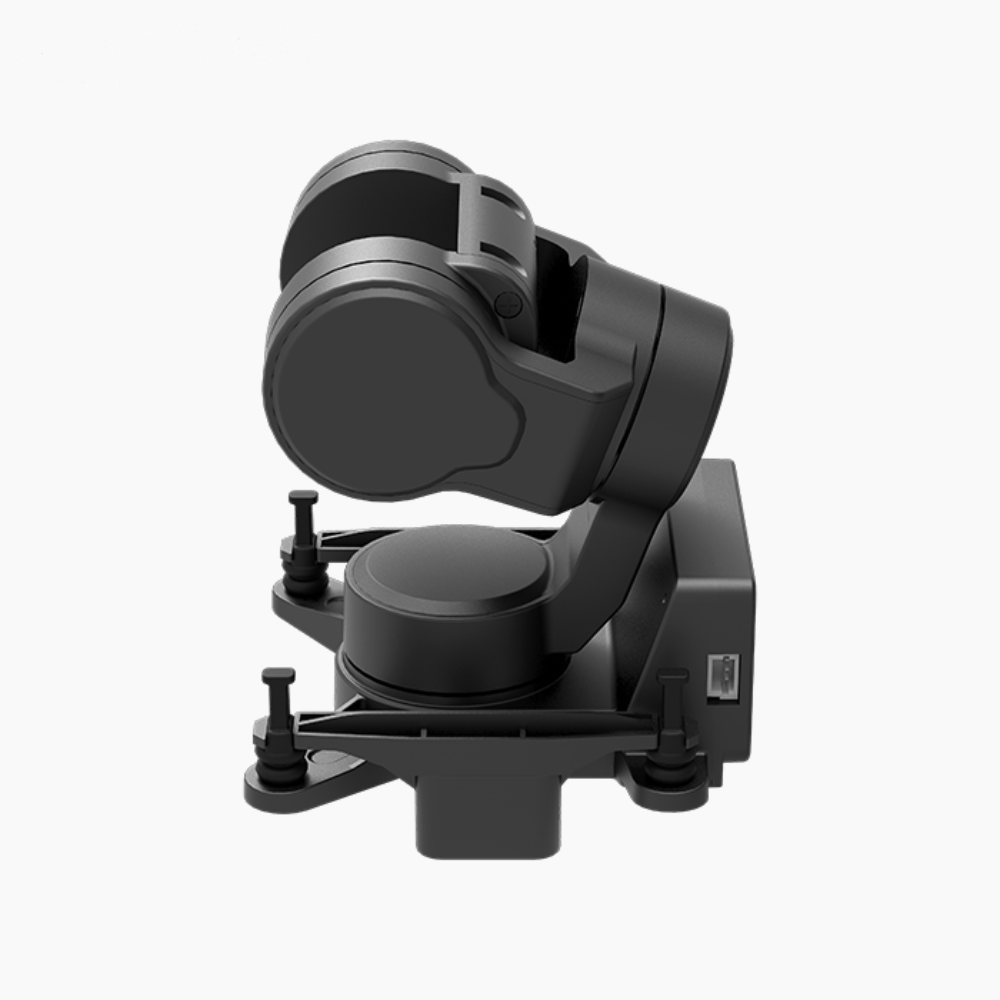

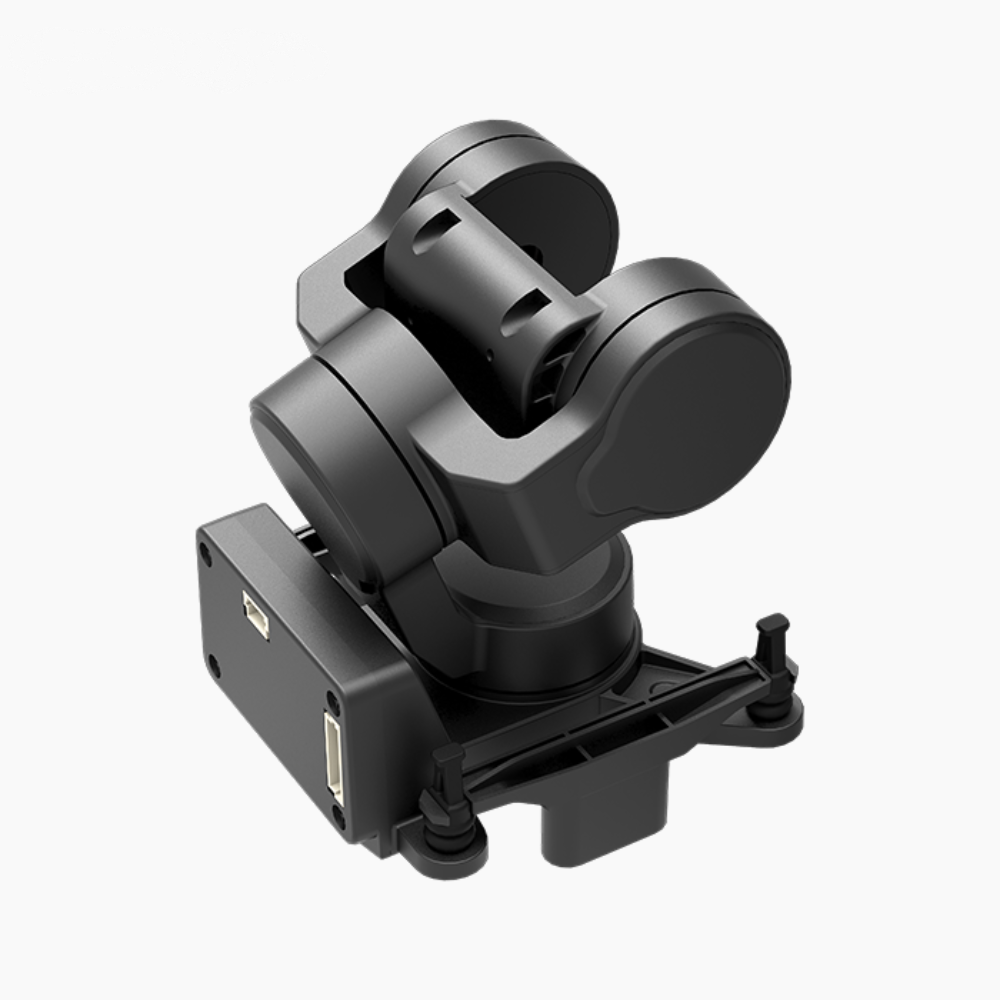

Can be mounted either downward or upward to suit different application needs.
- The XF C-20T 3-Axis FPV Gimbal for DJI O4/O4 Pro works seamlessly with the HeadTracker Integrated Baseboard All-In-
One Edition, enabling integrated operation.
- Wide Voltage Input: Compatible with 7.4~26.4 V DC input, making it versatile for various power sources.
1. Advanced 3-Axis Stabilization
- High-torque brushless motors for precise camera control
- Ultra-responsive stabilization for smooth footage in aggressive maneuvers
- Optimized for high-speed FPV and fixed-wing applications
2. DJI O4/O4 Pro Compatibility
- Direct integration with DJI O4 and O4 Pro Air Units
- USB-adjustable settings for fine-tuning performance
- Plug-and-play installation with secure mounting
3. H
ead Tracking & High-Speed Control
- Supports head tracking for immersive FPV piloting
- Adjustable follow speed for racing and cinematic use
- Low-latency performance for real-time stabilization
4. Durablee & Lightweight Construction
- Aircraft-grade aluminum and carbon fiber components
- Compact design minimizes drag and weight penalty
- Vibration-dampening system for clean footage
5. Easy Configuration & Customization
- User-adjustable PID settings via USB interface
- Multiple stabilization modes for different flight styles
- Firmware upgradable for future enhancements
6. Technical Specifications
|
|
|
|
|
|
|
|
|
|
|
|
|
|
7. Ideal Applications
- FPV Racing: Smooth footage while maintaining agilityy
- Fixed-Wing Cinematography: Stabilized aerial shots
- Freestyle & Long-Range FPV: Professional-grade stabilization
General | |||
Product Name | C-20 T O4/ O4 Pro | ||
Dimensions (with damper) |
| ||
Weight (with damper) |
| ||
Operating Voltage | 7.4 ~ 26.4 VDC | ||
Power | 1.5W ( Static ) / 14W (Stall) | ||
Mounting |
| ||
Control Port | Headtracker / UART (private protocol & MAVLink) / S.BUS / CRSF / PWM | ||
Gimbal | |||
Gimbal Type | 3-axis Nonorthogonal Mechanical Stabilization | ||
Angular Accuracy | ±0.005° | ||
Controllable Range | Pitch: -105°~+145°, Roll: ±60°, Yaw: ±160° | ||
Max Rotation Speed | ±1500°/s | ||
Camera Suitability | |||
Maximum Weight | 20g | ||
Maximum Width |
| ||
The C-20T O4 and C-20T O three are designed for two different DJI transmission systems. The only difference between them is the coaxial cable and lens mount.
Package Includeduff1a

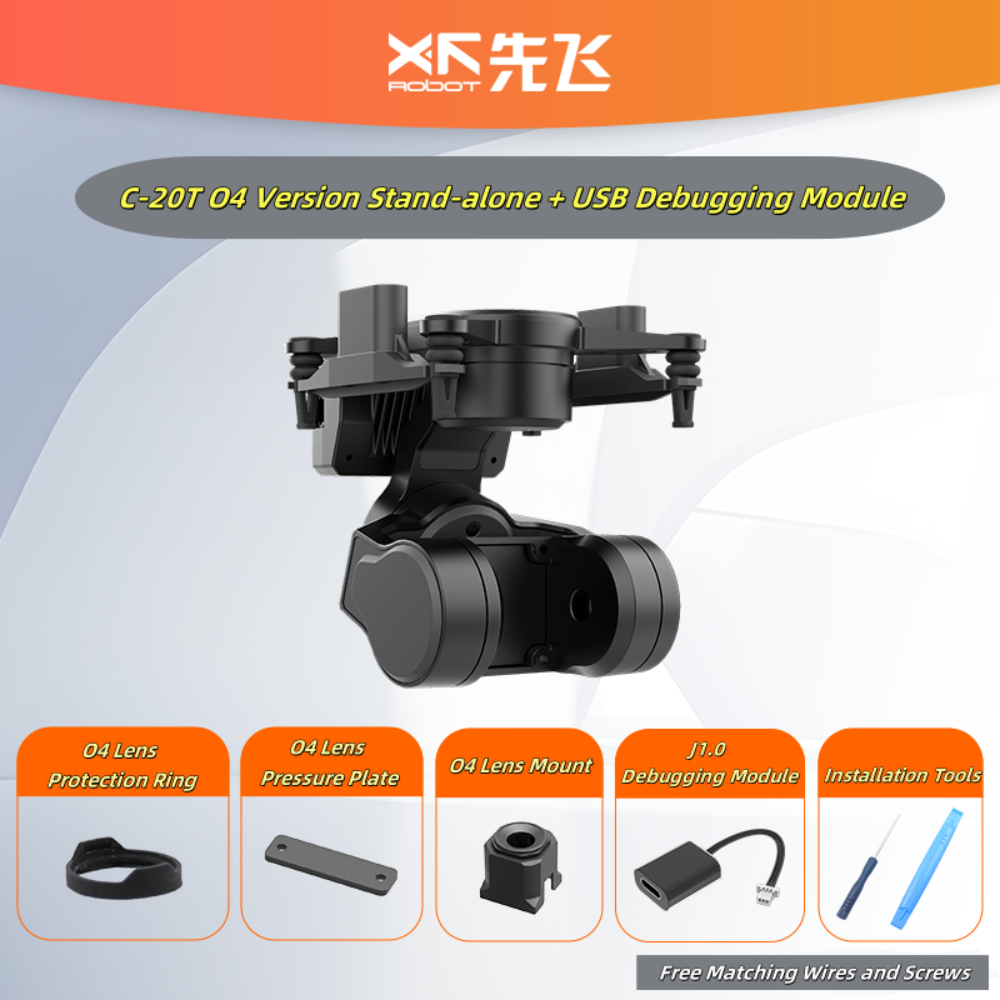

C-20T O4 Versionuff1a
1x O4 Lens Protection Ring
1x O4 Lens Pressure Plate
1x O4 Lens Mount
1x J1.0 Debugging Module
Installation Tools
Free Matching Wires and Screws

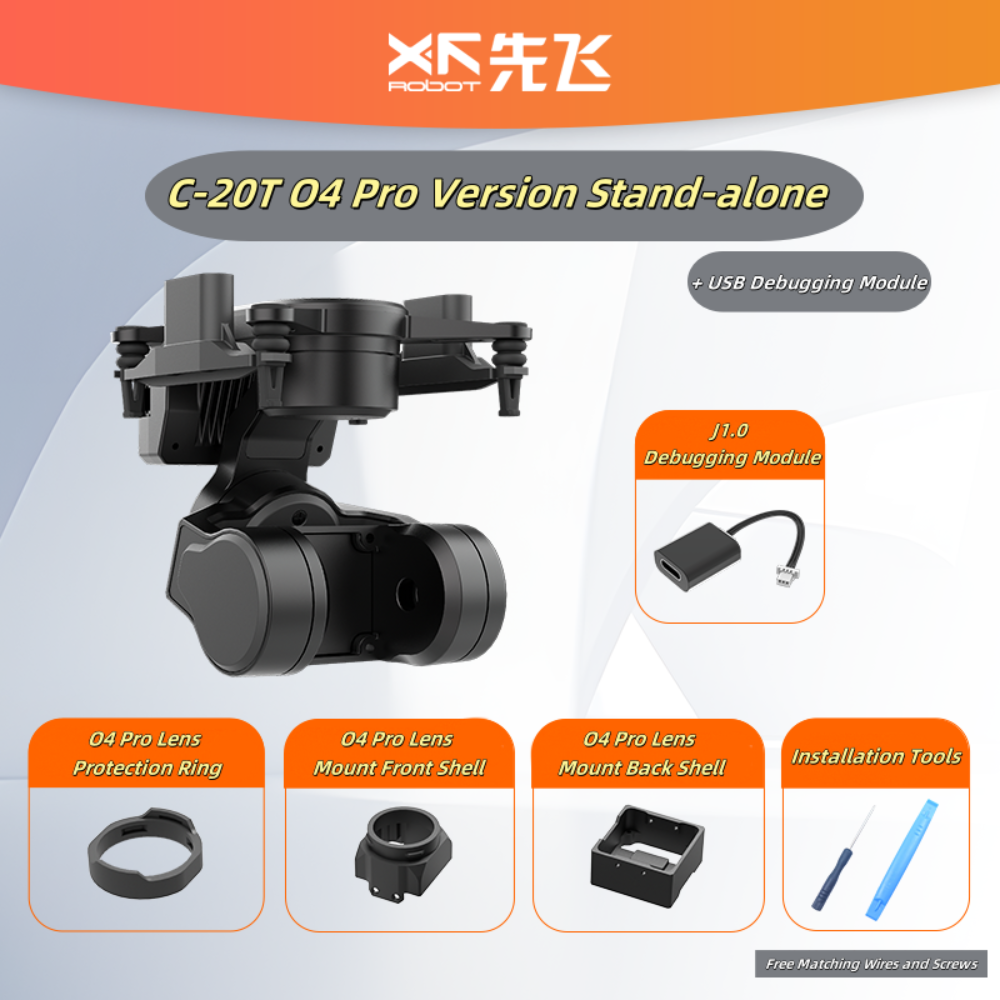

C-20T O4Pro
Version
:
1x O4 Pro Lens Protection Ring
1x O4 Pro Lens Mount Front Shell
1x O4 Pro Lens Mount Back Shell
1x J1.0 Debugging Module
Installation Tools
Free Matching Wires and Screws Included
Q&A.
1.
What is gimbal sensitivity adjustment?
The sensitivity of the gimbal is the speed of the gimbal response in the mode of tracking the axis angle of the gimbal. When the sensitivity of the gimbal is lowered, the gimbal responds sluggishly to the shaking of the fuselage, and more fuselage shaking can be filtered out. When the sensitivity of the gimbal is increased, the gimbal responds sensitively to the shaking of the fuselage, and the gimbal filters out less fuselage shaking.
The C-20T supports gimbal sensitivity, which can be adjusted in real time through the sensitivity PWM channel.
Examples of use cases:
The gimbal is mounted on a fixed-wing aircraft, and when taking off and landing, the sensitivity of the gimbal can be increased, and the gimbal response is sensitive, which is conducive to judging the fuselage attitude through the screen and facilitating the control of the aircraft. When cruising in the air, you can turn down the sensitivity of the gimbal so that the image doesn"t shake much, making it easy to shoot silky smooth videos.
The gimbal is mounted on the remote control car, which can reduce the sensitivity of the gimbal, which is more conducive to the gimbal to filter out more body shaking.
2. After the gimbal is powered on, the picture is not level, and it is a little crooked, how to deal with it?
After the gimbal is powered on, the default working mode is follow mode, in this mode, the gimbal takes its own base as the coordinate system, if the gimbal base is not horizontal, the camera is not horizontal. When the gimbal switches the working mode to the roll lock mode, the earth is used as the coordinate system, and the camera remains horizontal.
3. When the plane disc rotates and bends, the picture is not level, how to deal with this?
When the aircraft or model car turns quickly or pans sideways, the gimbal roll axis will be offsett at a certain angle, which is normal.
4. Is it normal for the gimbal to heat up on the surface after working for a period of time?
The gimbal IMU sensor has a constant temperature control, and there will be a certain amount of heat during normal operation, which will cause the surface of the gimbal body to heat up, which is normal.
