Please click to download the manual

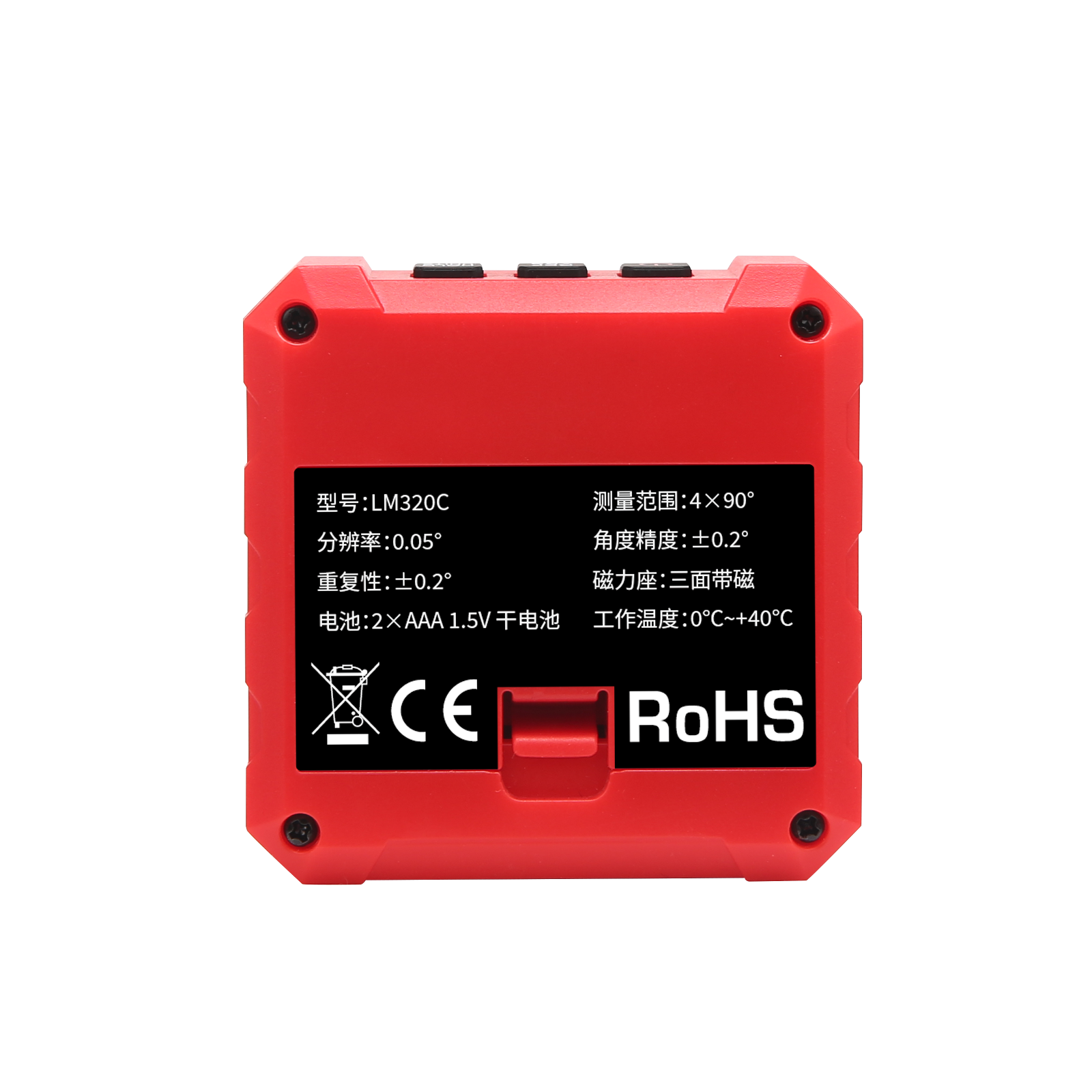

Specifications:

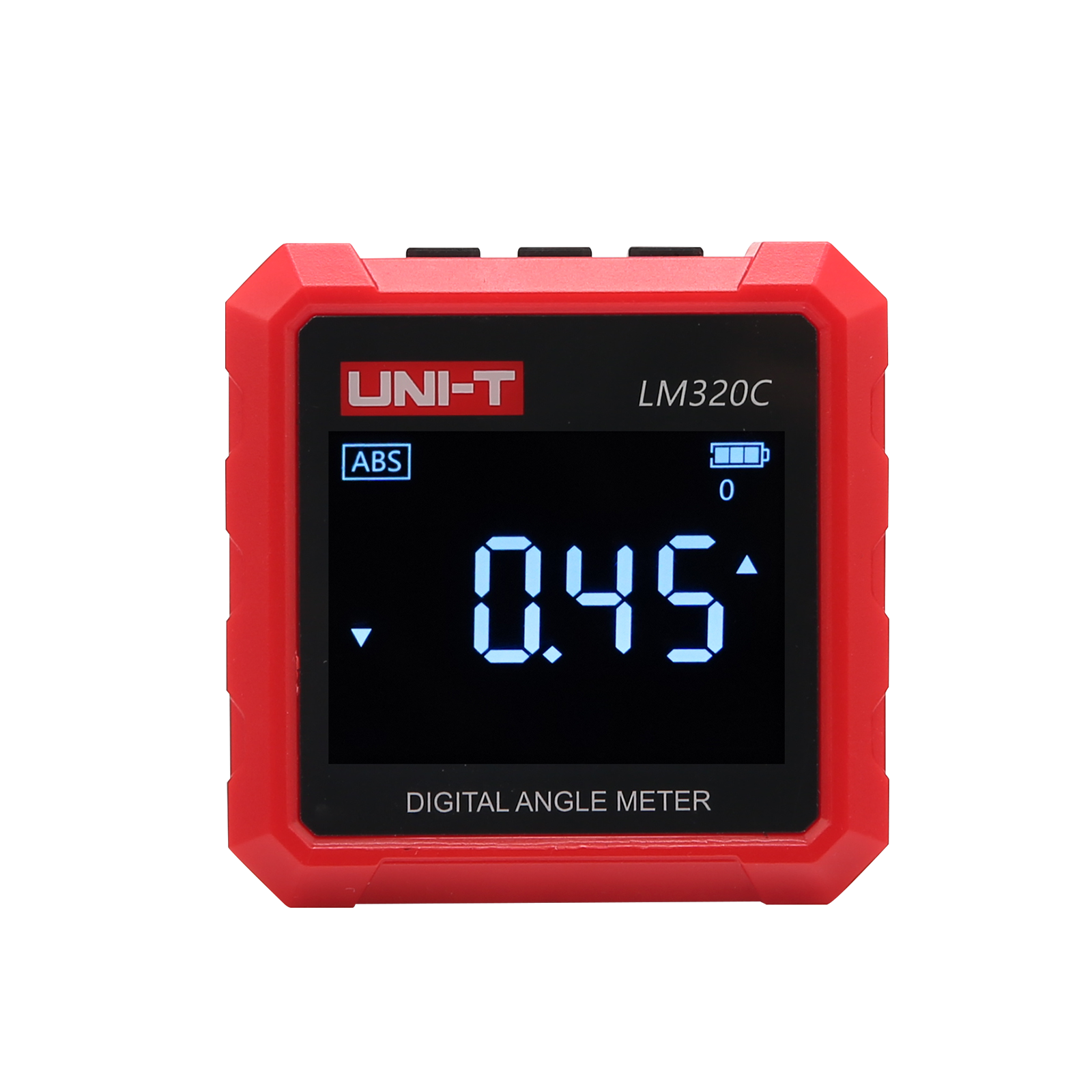

Model: LM320C

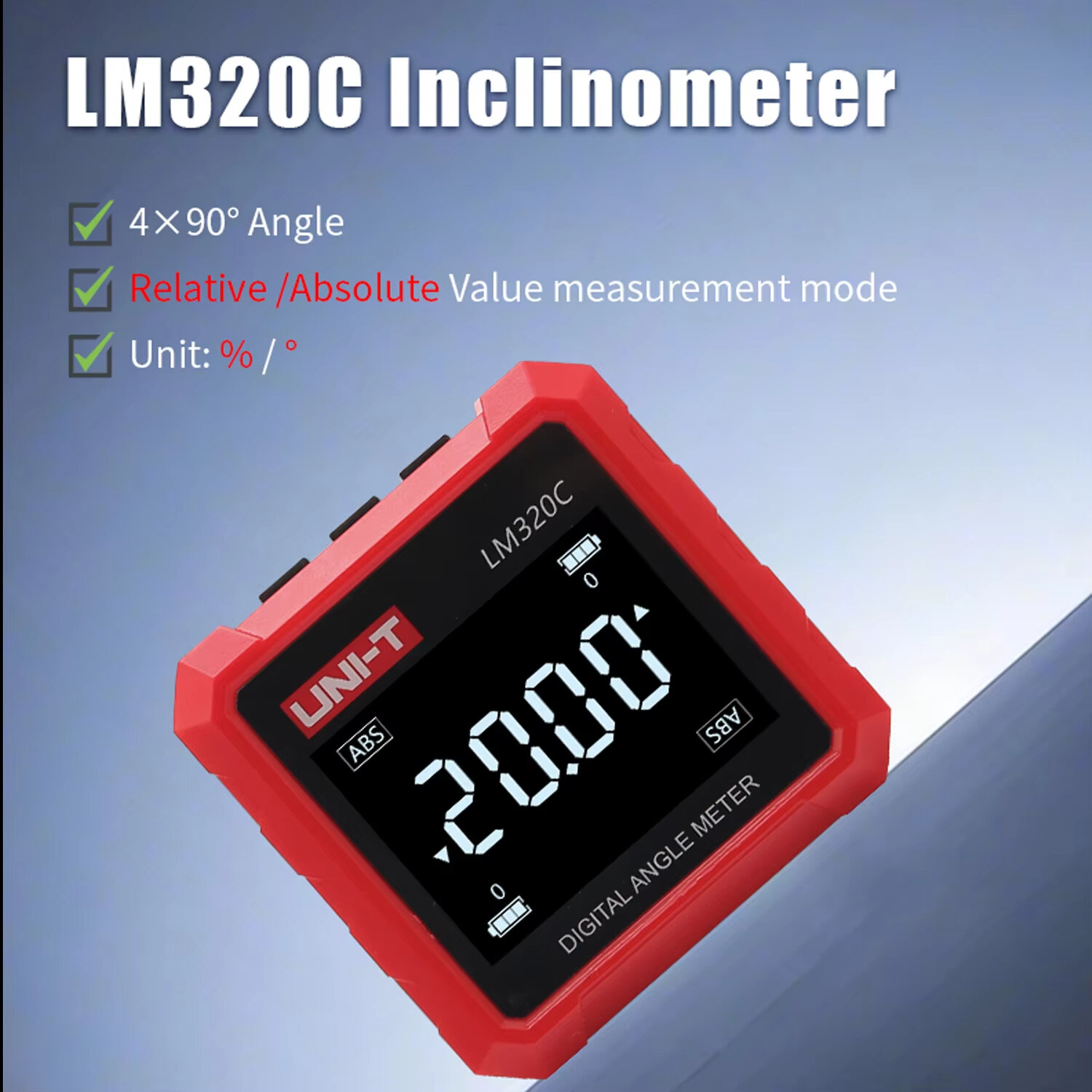

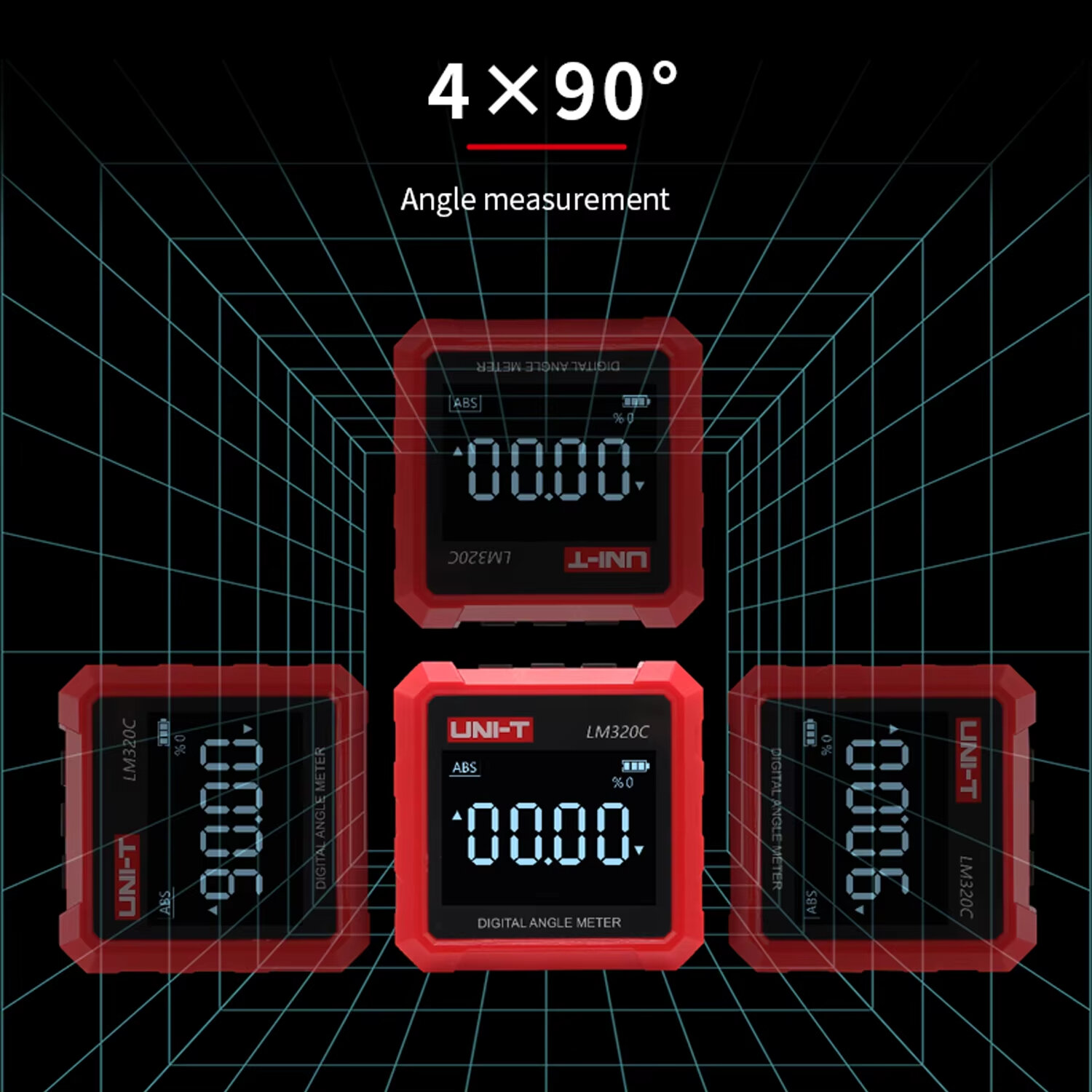

Measurement Range: 0° to 360° (4x90°)
Resolution: ±0.05°
Angle Accuracy: ±0.2°
Repeatability: ±0.2°
Units: % / °
Magnetic Sides: 3 sides
Relative/Absolute Angle Measurement: Supported

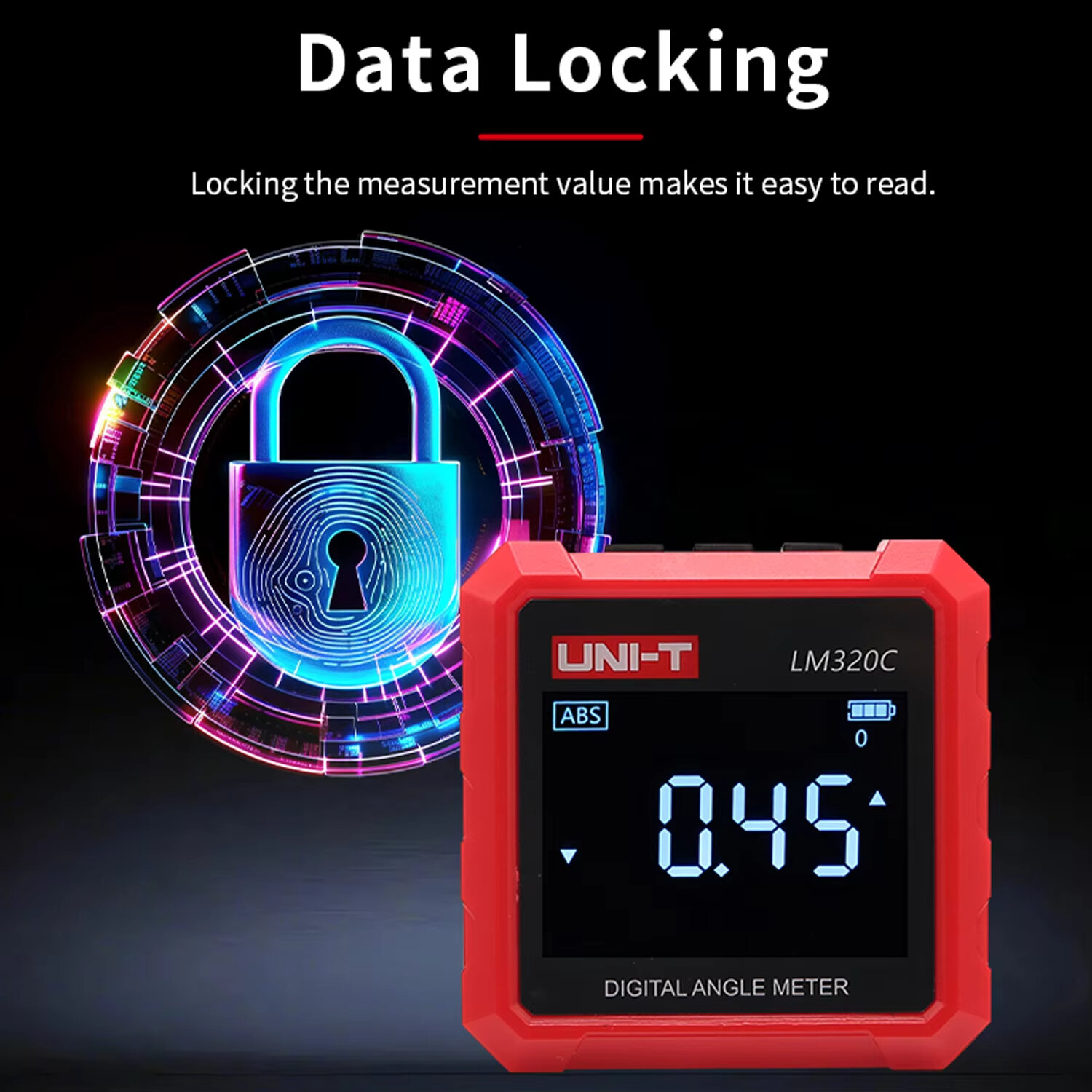

Angle Holding Function: Supported
Screen Flipping: Supported
Auto Shutdown: After 3 minutes of inactivity
Power Supply: 2x AAA 1.5V batteries (not included)
Material: PC + 15% Glass Fiber
Working Temperature: 0°C to 50°C
Humidity Range: 40% to 80% RH
Working Time: Up to 24 hours continuously
Dimensions: 62mm x 62mm x 25mm
Weight: Approx. 88g
Features:
1.High Precision Measurement
Provides highly accurate measurements with an angle accuracy of ±0.2° and resolution of ±0.05°, making it ideal for applications requiring precise angle determination.

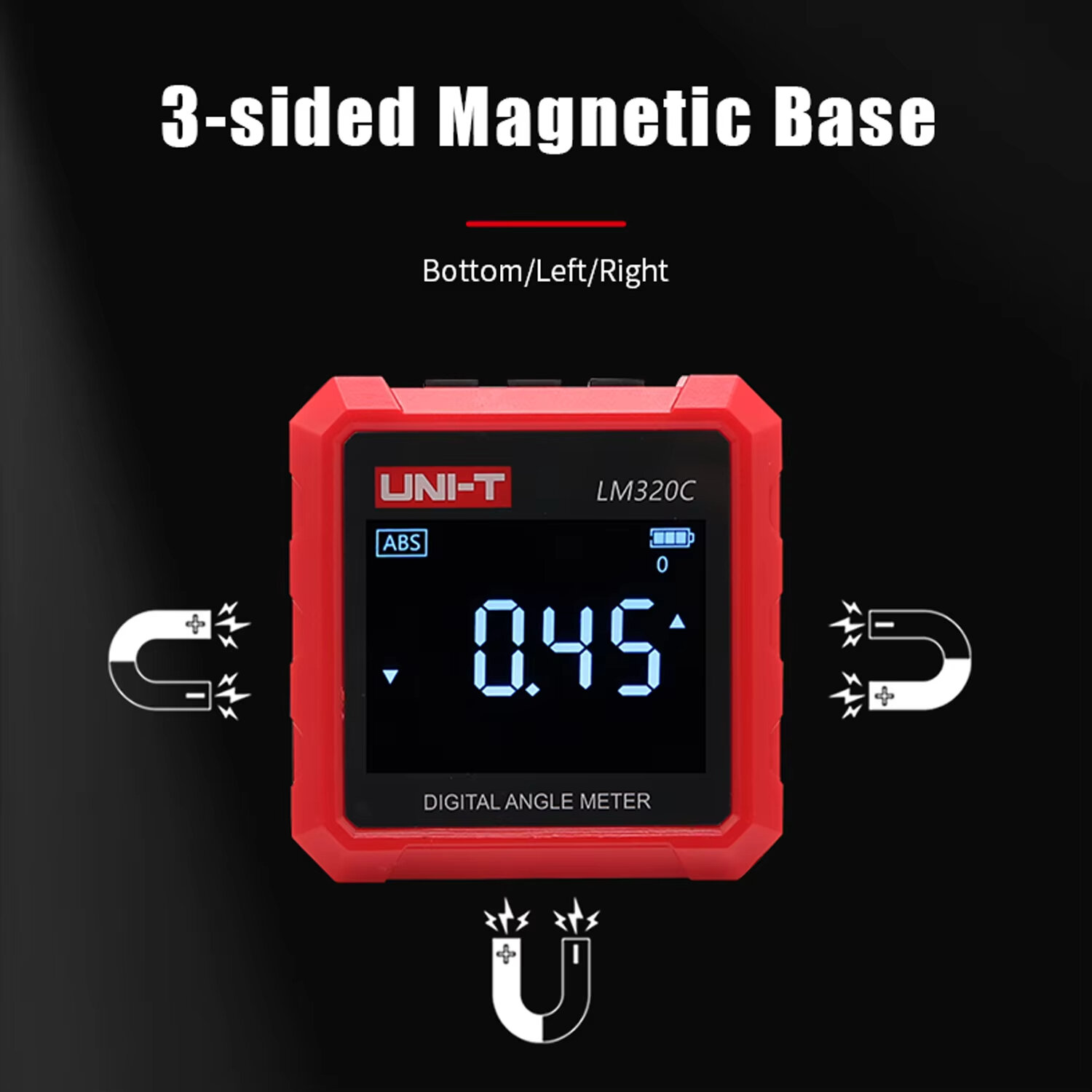

2.Magnetic Base for Versatility
Features three magnetic sides that allow secure attachment to metal surfaces, making tasks like leveling and alignment more efficient.

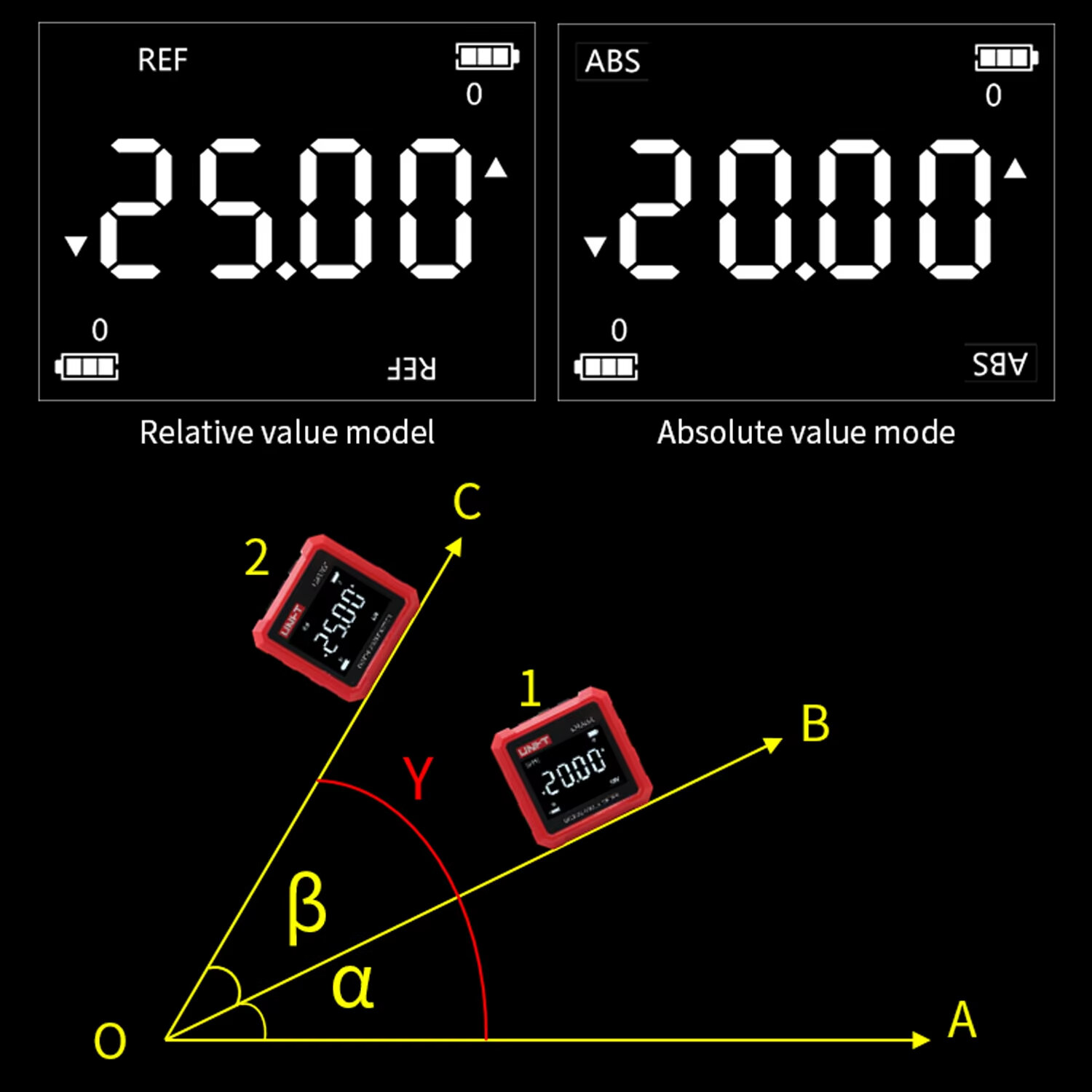

3.Dual Angle Modes
Supports both absolute and relative angle measurements, accommodating diverse needs in construction, machinery setup, and DIY projects.
4.Clear LCD Display
Equipped with a high-definition LCD screen with screen-flipping capability, ensuring easy readability from any angle.
5.Compact & Lightweight Design
Designed with portability in mind, it weighs only 88g and is small enough to fit in your pocket, offering convenience on the go.

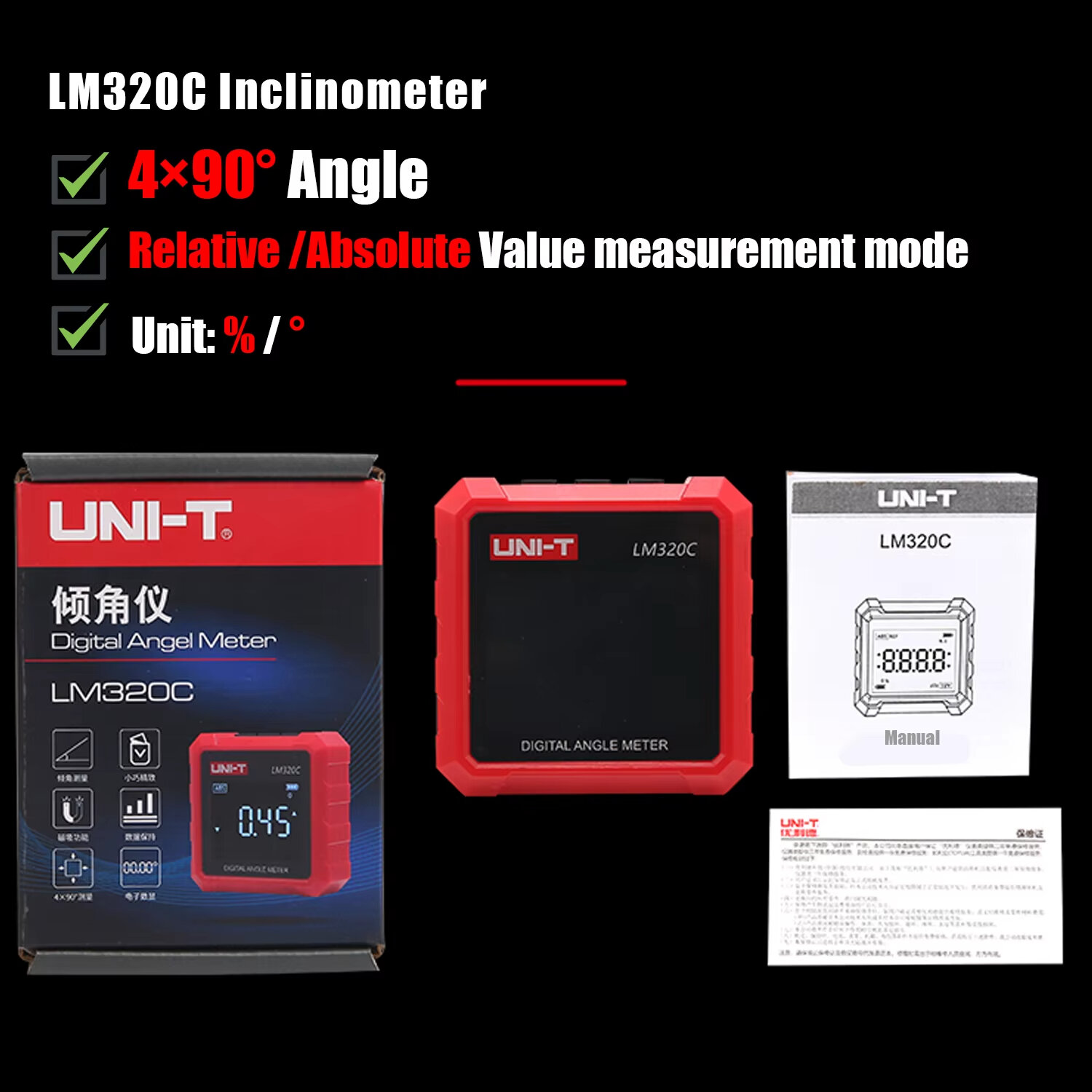

Package Included:
1 x LM320C Magnetic Inclinometer
