Description:
SpeedyBee Bee25Frame - Exclusive EXT module for effortless Bluetooth tuning! Modular design for easy assembly, upgraded 2.0 meteor LED strip, reinforced injection-molded head with an integrated crash-resistant ring, efficient cooling, and compatibility with mainstream VTX/receivers for a smoother, more enjoyable flight
!
Specification
:
Brand: SpeedyBee
Model: Bee25
Item Name: 2.5 Inch 4-6S Frame Kit
Version: Standard Version / Bee25 Pro Version (Optional)
Product Name | SpeedyBee Bee25 Frame |
Wheelbase | 120mm |
Carbon Plate Thickness | 2mm |
Camera Mounting Distance | 19/20mm |
Mounting Height of Electronic Equipment | 18mm |
Stack Mounting Holes | 25.5*25.5mm |
Compatible VTX | DJI O3 Air Unit / Link / TX800 / TXULTRA (Except for DJI O3, other modules require additional 3D printed par.) |
Propeller Size | 2.5 inch |
Motor Mounting Holes | 9*9mm |
Weight | 68±2g |
Recommended Motor | 1404/1504/1505 |
Recommended KV | 4S 4300-4800KV |
Recommended Battery | 4S 650-1100mAh |
Package Included:
Version | Included |

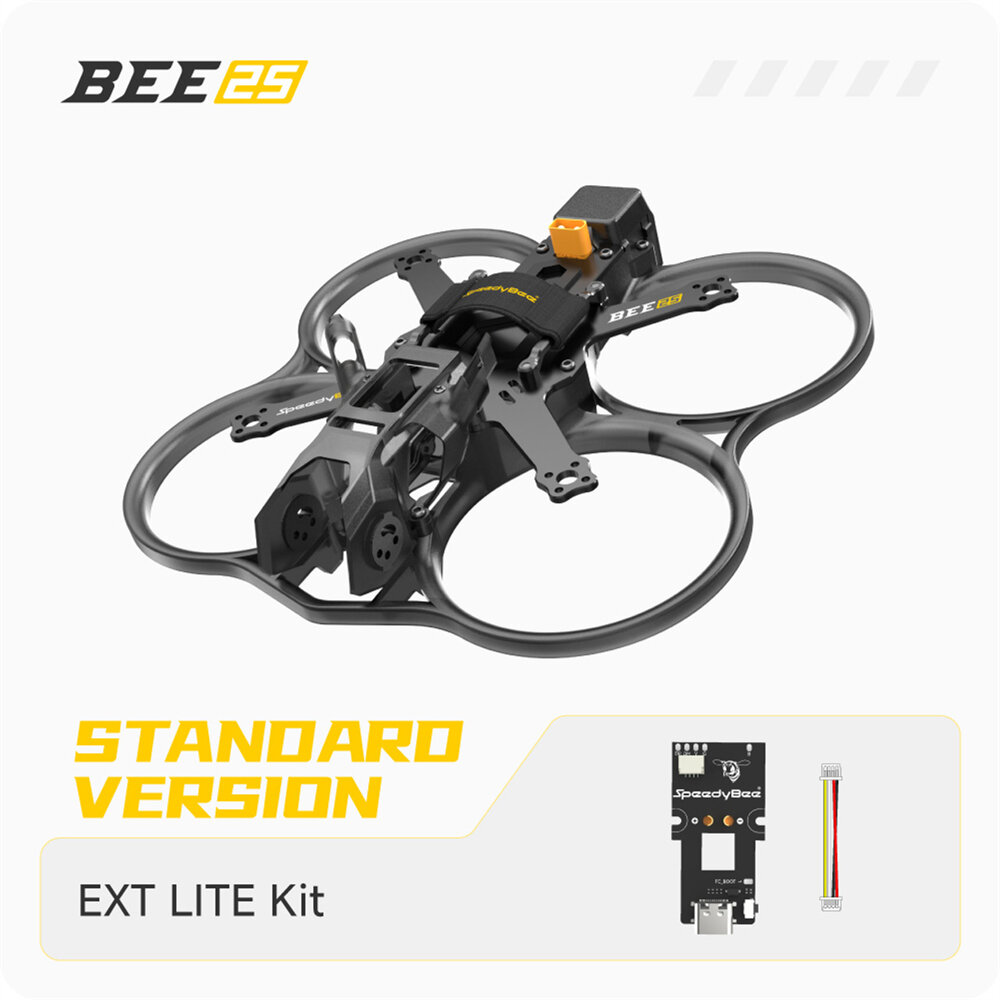

Bee25 Standard Version | 1 x Carbon Plate 1 x Protective ring 1 x EXT LITE Kit 1 x Antenna Mounting R 1 x Antenna Mounting L 1 x Camera Dampening Silicone 1 x Receiver Cover 1 x Injection Molding Head 1 x GPS Cover 5 x M2 Anti-Slip Nuts 20 x Button Head Screws M2*6mm 18 x Button Head Screws M2*4mm 10 x Button Head Screws M2*7mm 4 x Flat Head Hex Socket screws M2*12mm 4 x Flat Head Screws M1.6*4mm 6 x Button Head Screws M2*8mm 6 x Hex Socket Cap Screws M1.6*8mm 1 x Type-C Connector 4Pin*40mm 1 x Male SH1.25-4P*25mm 1 x Female SH1.25-4P*25mm 1 x Micro USB Connector 4Pin*40mm 1 x Double-Ended SH1.0-6P*35mm 1 x Battery Nylon Strap 150mm 1 x Battery Elastic Strap 35mm 1 x CNC for Securing Strap 4 x Motor Wire Sleeves 1 x DJI O3 Copper Tube Antenna 1 x Service Card 1 x Screwdriver Set 1 x Battery Anti-Slip Pad 1 x Black Power Cable 35mm 1 x Red Power Cable 35mm |

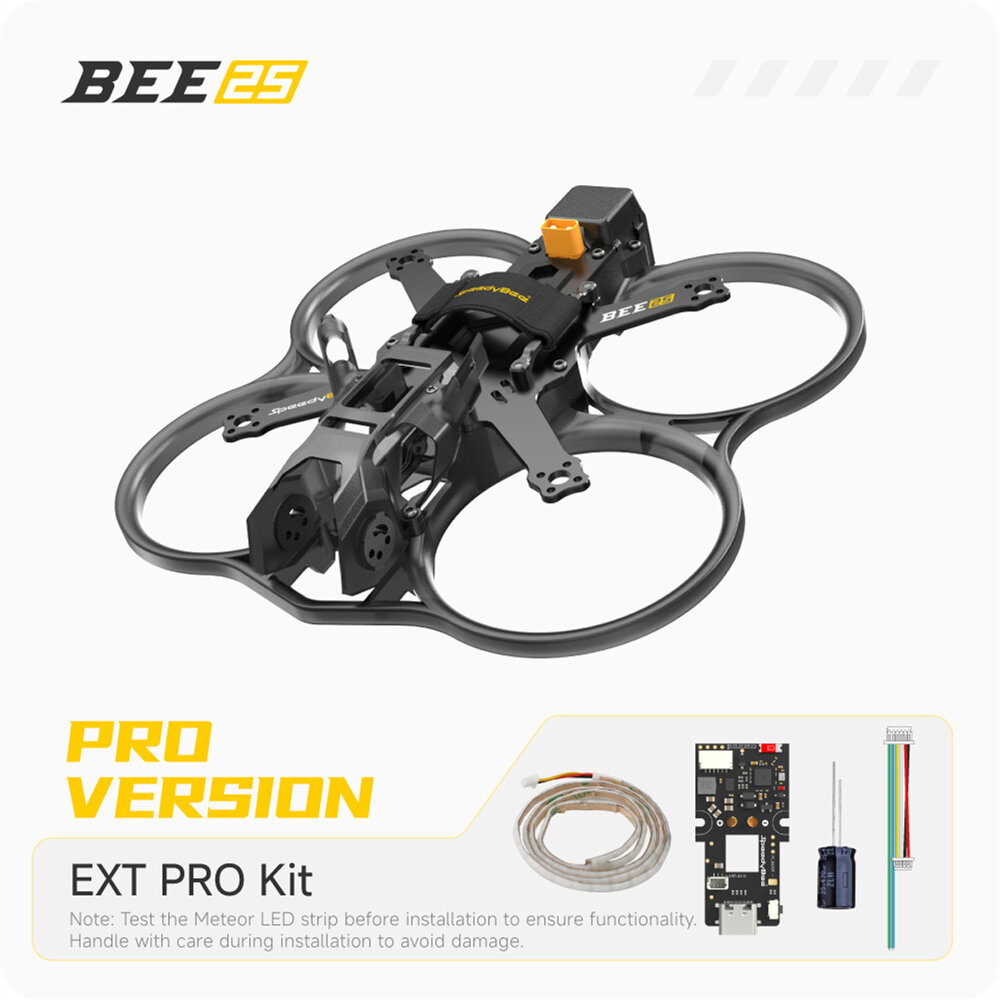

Bee25 Pro Version | 1 x Carbon Plate 1 x Protective ring 1 x EXT PRO Kit 1 x Antenna Mounting R 1 x Antenna Mounting L 1 x Camera Dampening Silicone 1 x Receiver Cover 1 x Injection Molding Head 1 x GPS Cover 5 x M2 Anti-Slip Nuts 20 x Button Head Screws M2*6mm 18 x Button Head Screws M2*4mm 10 x Button Head Screws M2*7mm 4 x Flat Head Hex Socket screws M2*12mm 4 x Flat Head Screws M1.6*4mm 6 x Button Head Screws M2*8mm 6 x Hex Socket Cap Screws M1.6*8mm 1 x Type-C Connector 4Pin*40mm 1 x Male SH1.25-4P*25mm 1 x Female SH1.25-4P*25mm 1 x Micro USB Connector 4Pin*40mm 1 x Double-Ended SH1.0-6P*35mm 1 x Battery Nylon Strap 150mm 1 x Battery Elastic Strap 35mm 1 x CNC for Securing Strap 4 x Motor Wire Sleeves 1 x DJI O3 Copper Tube Antenna 1 x Service Card 1 x Screwdriver Set 1 x Battery Anti-Slip Pad 1 x Black Power Cable 35mm 1 x Red Power Cable 35mm 1 x Bee25 Meteor LED |
