Specifications:
Base Material: 5mm epoxy board, precision CNC cut, robust and highly insulated
Fixed Rod Material: Solid aluminum alloy with CNC processing, anodized surface treatment
Fixed Rod Dimensions: Length 102mm, diameter 22mm, inner threads of 1/4" and 3/8"
U-Clamp Material: National standard 304 stainless steel, 6mm thickness
Supported Clamp Size: Standard U-clamp fits 20-25mm poles, maximum support up to 35mm with larger clamps
Thread Compatibility: Compatible with 1/4" and 3/8" threads on tripods and light stands
Features:
1.High Insulation and Robust Base
CNC-cut base made from 5mm epoxy board offers excellent insulation properties and exceptional structural integrity.
2.Tool-Free Setup and Adjustment
Equipped withbutterfly hand-tightened U-clamp nuts, allowing for quick and convenient assembly without the need for additional tools.
3.Wide Compatibility with Standard Supports
Designed with universal 1/4" and 3/8" inner threads, enabling seamless installation on most photography tripods and light stands.
4.Versatile U-Clamp Design
Accommodates poles ranging from 20mm to 35mm in diameter (with larger clamps), supporting diverse setups for antennas in various environments.
5.Anti-Slip and Long-Term Performance
Solid 102mm aluminum alloy fixed rod features a knurled surface and anodized finish to prevent slippage while maintaining reliable performance during outdoor use.
Package Included:

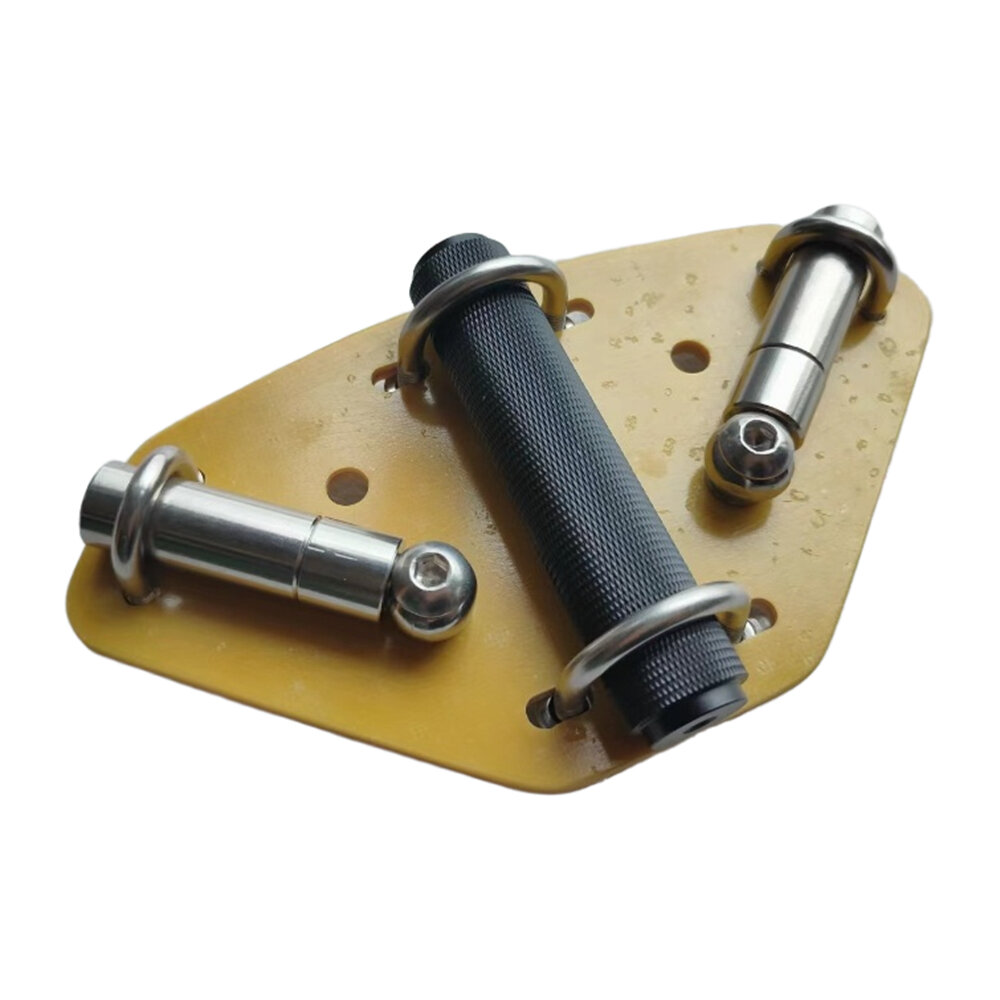

#a: 1 x Shortwave Pull Rod V Base with Black Aluminum Alloy Fixed Rod

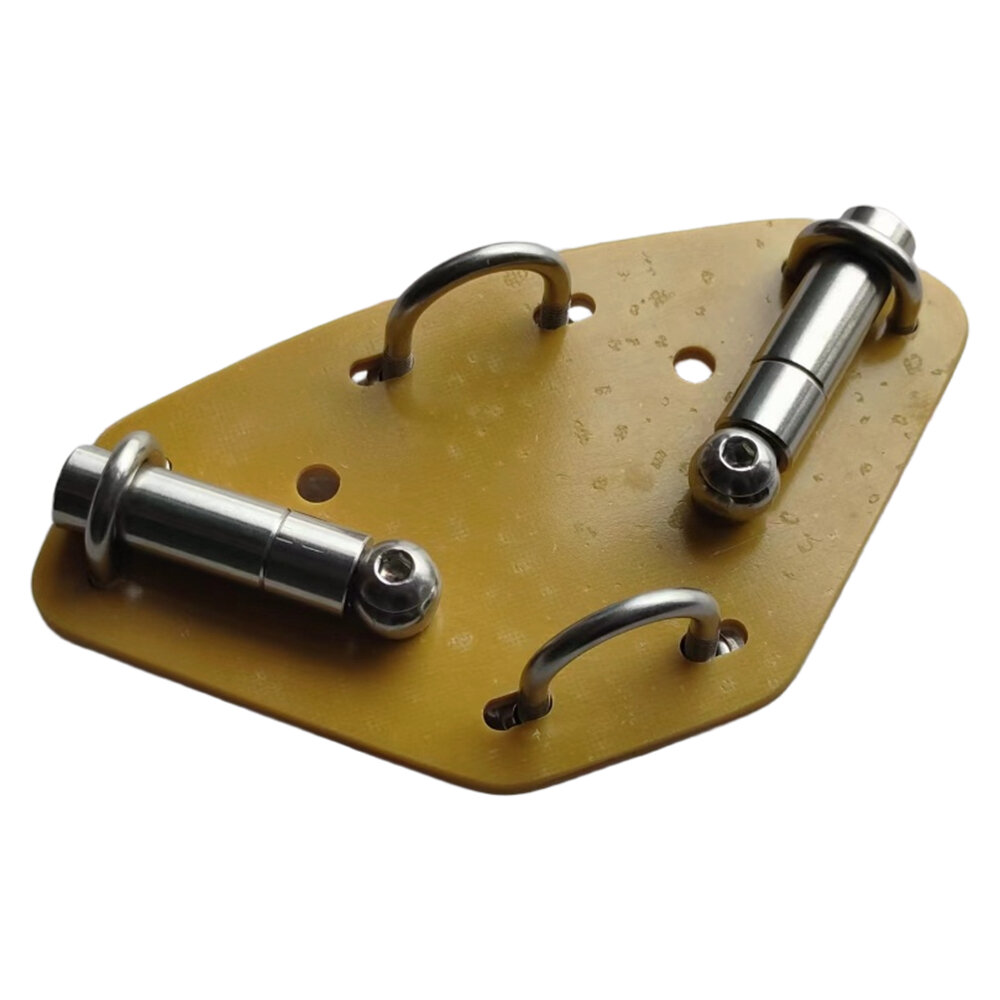

#b: 1 x Shortwave Pull Rod V Base without Black Aluminum Alloy Fixed Rod

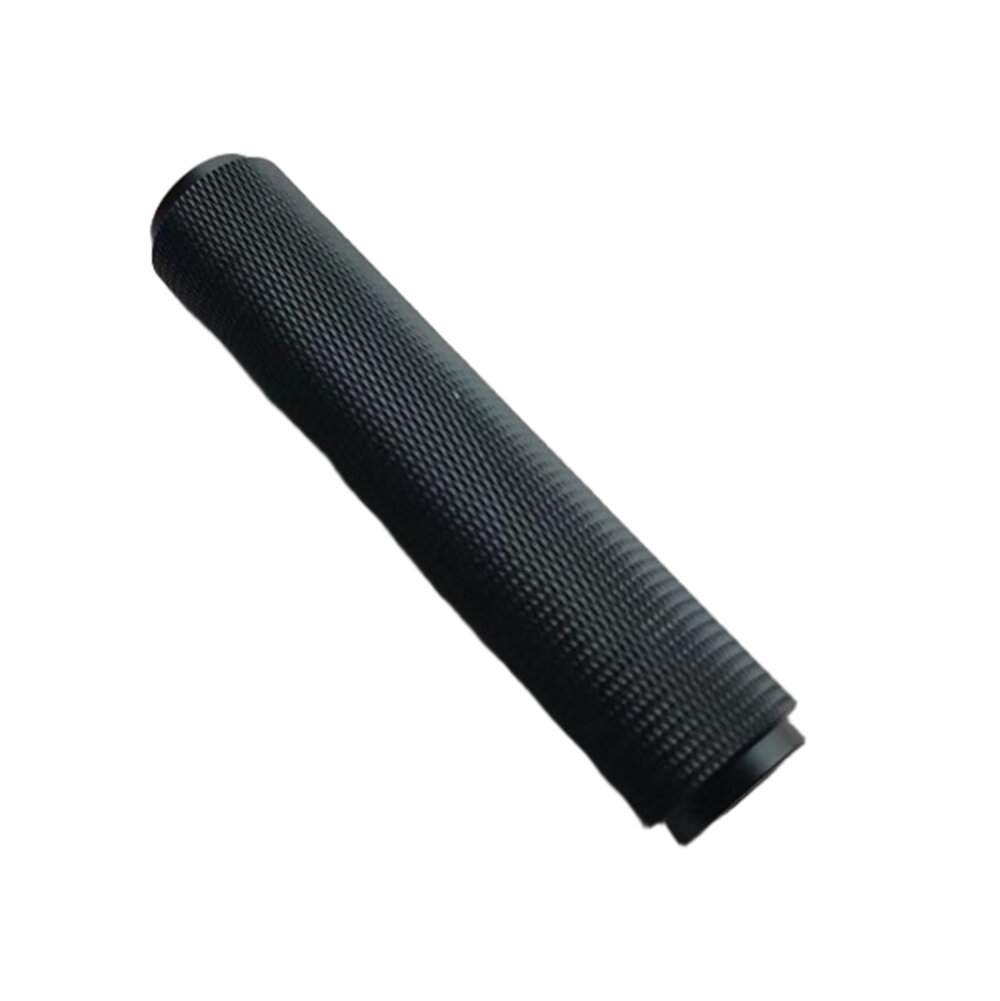

#c: 1 x Black Aluminum Alloy Fixed Rod
