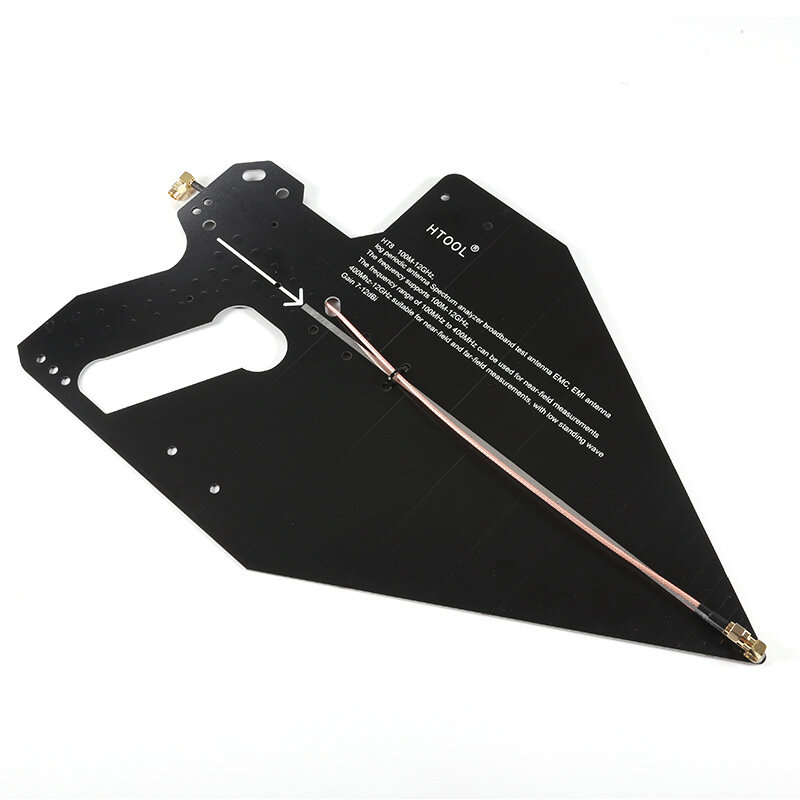

HT8 Logarithmic Periodic Antenna 0.6-10GHz Direction Finding Antenna for Spectrum Analyzer Signal Analysis Positioning EMC
1
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296
Features:
1. Direction Measuring Function: The logarithmic periodic antenna is able to realize the measurement of the directional and angular information of the signal, which can be used to determine the direction of the source of the signal.
2. Directional reception and transmission: This antenna is designed to be more directional and can focus on receiving and transmitting signals to improve signal quality and coverage.
3. High gain: Logarithmic periodic antennas have high gain, which can enhance the reception sensitivity and transmission power of the signal and improve the communication quality.
4. Widely used: logarithmic periodic antenna has a wide range of applications in the field of communication, radar, radio reconnaissance and so on. It is especially suitable for the scenarios that need to measure the signal direction of multiple frequency bands in a wide range.
5. Multi-frequency band support: The logarithmic periodic antenna is able to cover a wide bandwidth range of 0.1-12GHz, which enables it to adapt to the signal measurement needs of different frequency bands.
6. Passive Design: The logarithmic periodic antenna is a passive design that does not require external power supply, making it easy to install and use.
7. Convenient to carry: Due to the handheld design, this antenna is compact and lightweight, which is convenient for users to carry and use.
8. Simplify System Complexity: Log-periodic antennas can reduce the number of components and complexity in the system, reducing system costs.
Specification:
(1) Spectral range: 100MHz - 12GHz
(2) Polarization: Horizontal Polarization / Vertical Polarization
(3) Directional gain: 7-12dBi
(4) Voltage VSWR: u22642

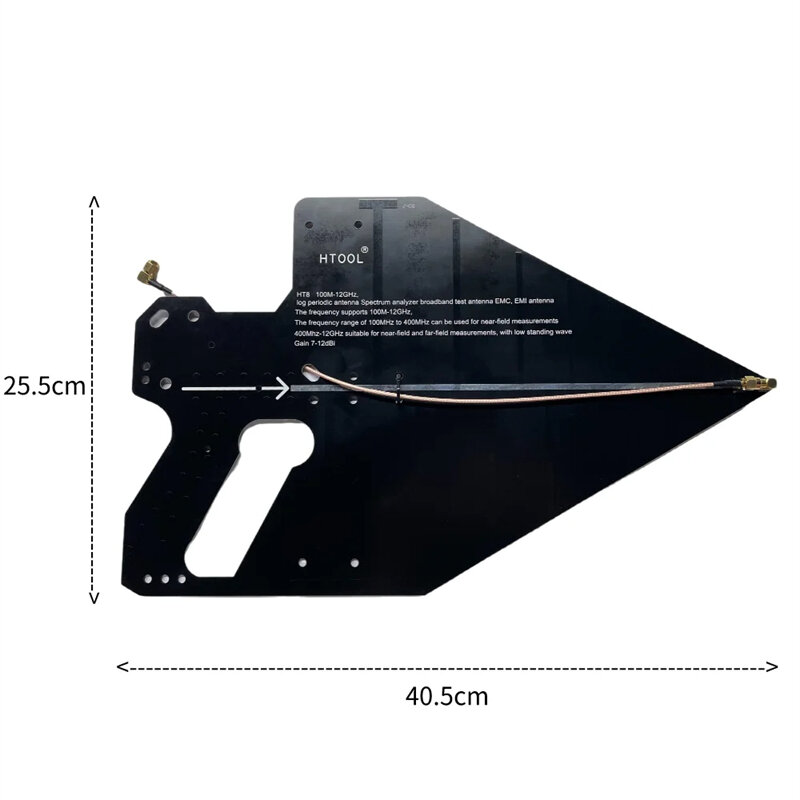

(5) Antenna size: 40.5*25.5cm / 15.94*10.04inch
(6) Weight: 205g

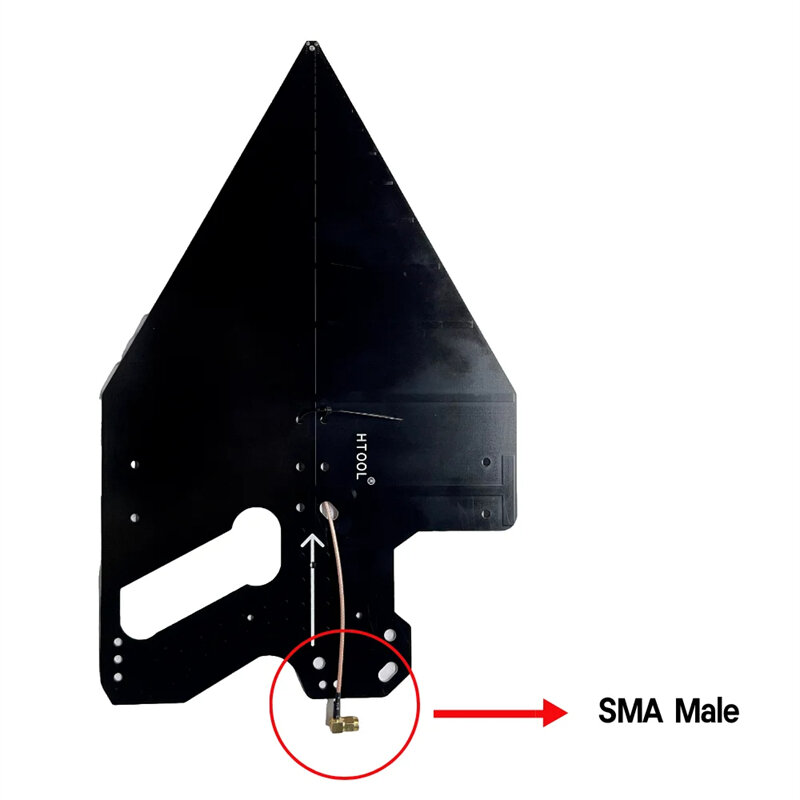

(7) Output Connector: SMA
(8) Output Impedance: 50u03a9
Application:
EMC Testing
Environmental Requirements:
Working Temperature: -45u2103~+65
Note: The equipment works in a high temperature and high humidity environment where the temperature is not less than 40u2103 and the relative humidity is not less than 95%.
Package Included:
Antenna Only:
1 x HT8 Log Periodic Antenna
Handle Kit:
1 x HT8 Directional Antenna Handle Kit (The antenna is not includes)
(The Spectrum Analyzer is not includes)
