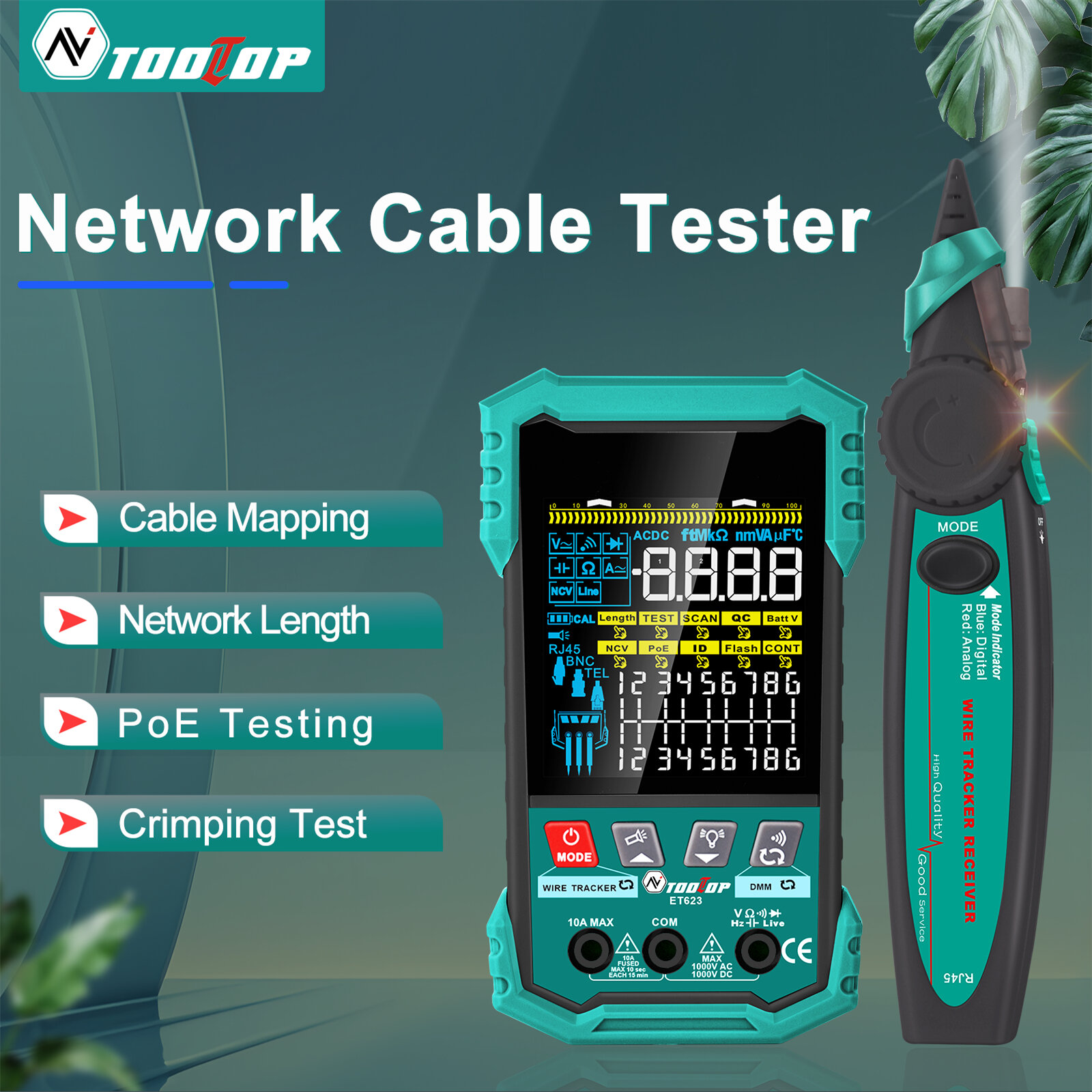

ET622 ET623 Wire Tracker Cable Tester Multimeter Adjustable NCV POE Voltage Testing 6000 Count Screen Network Cable Measurement 400m Accurate
65
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296
Specifications:

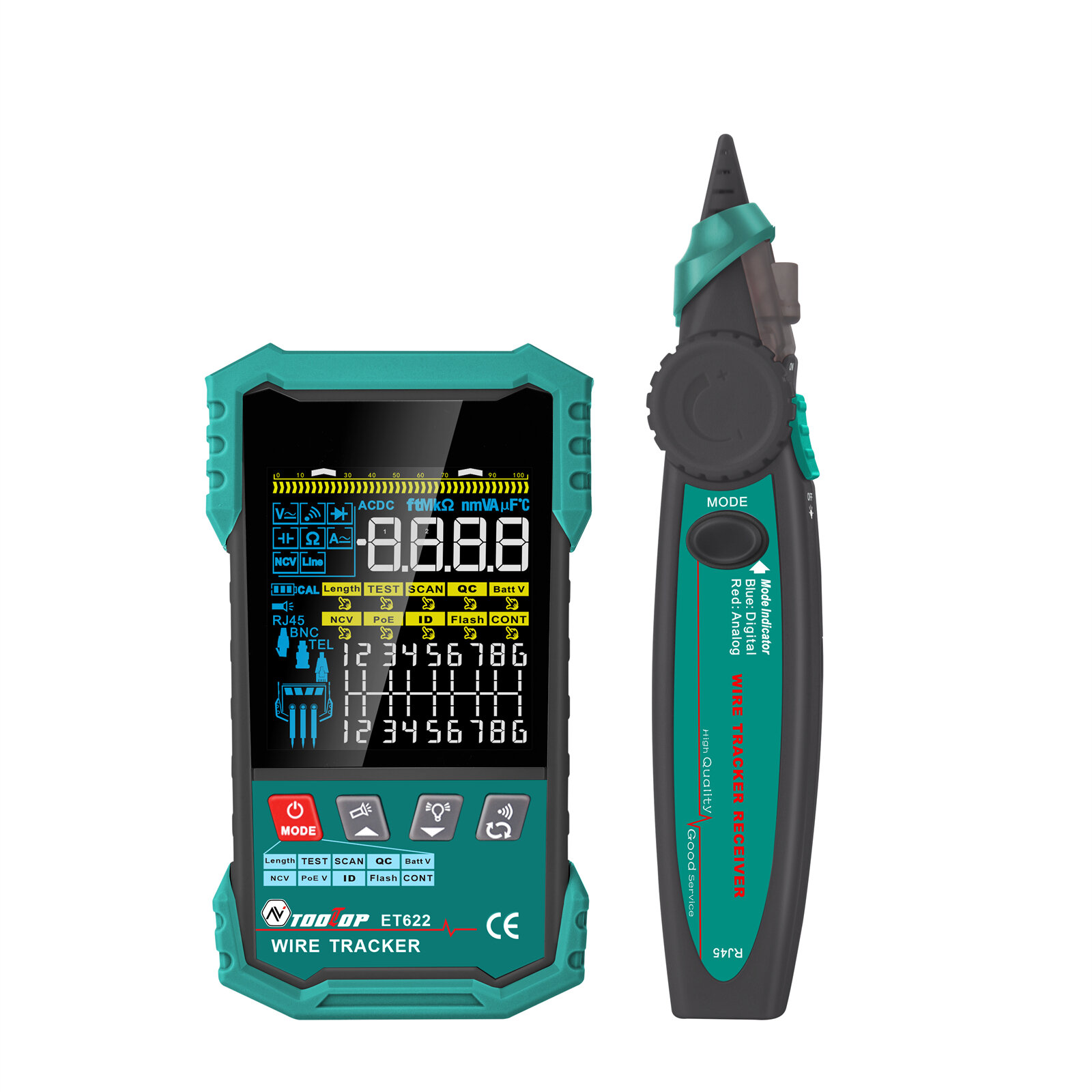

ET622
LCD Size: 55x57mm Color Screen
Cable Mapping: Supported
Network Cable Length: 2.5-400m
Length Accuracy: ±2% ±1m
Voltage Testing: Supported
Power Source: Main Body: 1250mA.h Rechargeable Lithium Battery | Receiver: 9V Battery
Functions:

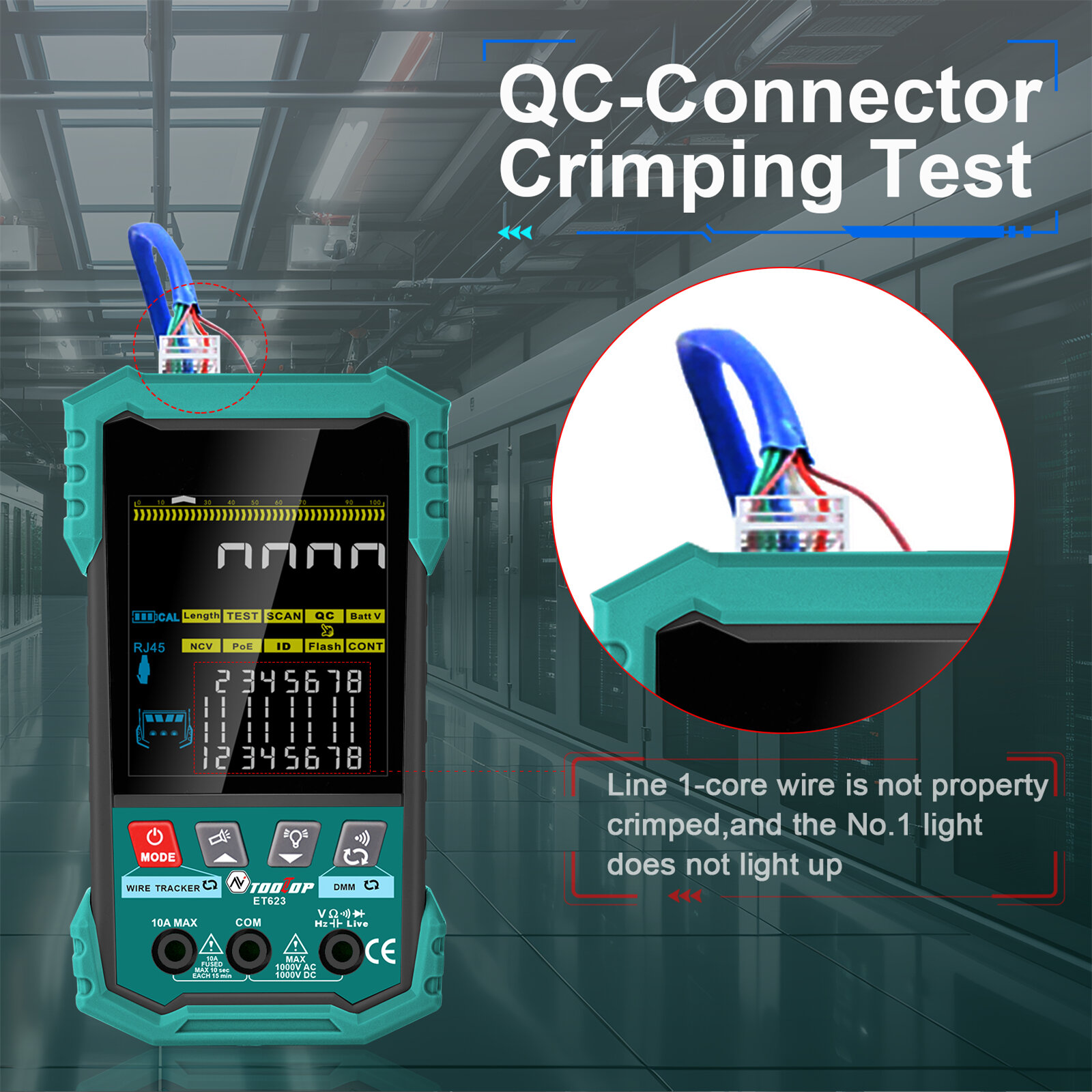

Crystal Head Crimp Test (QC)
Enter Connection Prompt
Switch Training (W/POE)
Network Cable Short/Open Circuit Test
Network Cable Breakpoint Measurement
NCV Testing/Digital Tracing Sensitivity Adjustable
POE Voltage Value/Polarity Testing
Flashlight
Auto Power Off

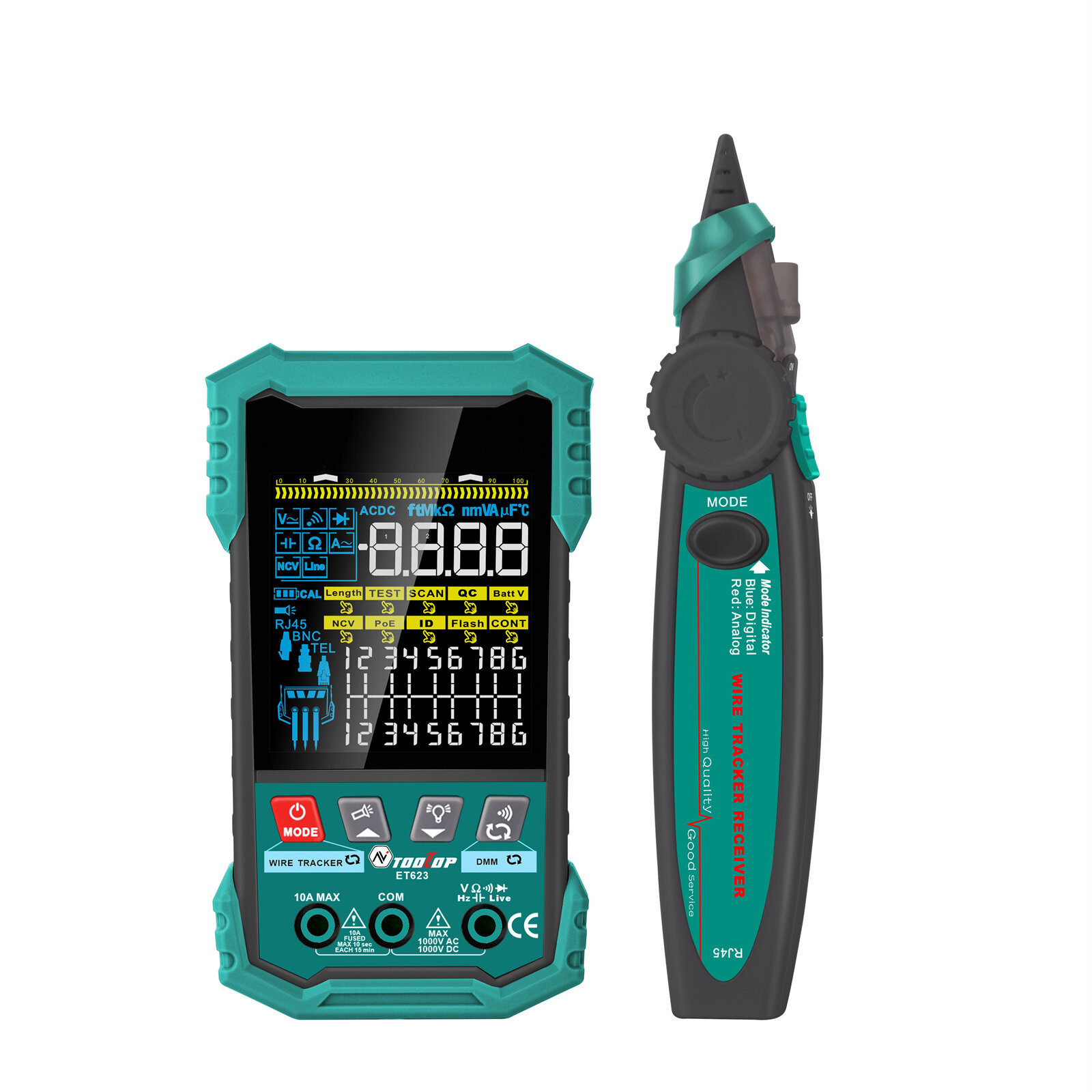

ET623
Multimeter (6000 Count):
DC Voltage: 600.0mV-1000V ± (0.5%+3)
AC Voltage: 6V-600V ± (1%+3)
DC Current: 600.0mA-10A ± (1.2%+3)
AC Current: 600.0mA-10A ± (1.5%+3)
Resistance: 600.0Ω-60.00MΩ ± (1.5%+5)
Capacitance: 6.000nF-60.00mF ± (5%+6)
Continuity & Diode Testing: Supported
LCD Size: 55x57mm Color Screen
Cable Mapping: Supported
Network Cable Length: 2.5-400m
Length Accuracy: ±2% ±1m
Battery: Main Body: 1250mA.h Rechargeable Lithium Battery | Receiver: 9V Battery
Functions:
All ET622 Functions + Digital/Mechanical Multimeter
Features:
1. Advanced LCD Display
The 55x57mm color screen provides sharp and clear visual output, enabling seamless access to data and readings in real-time for a more efficient workflow.

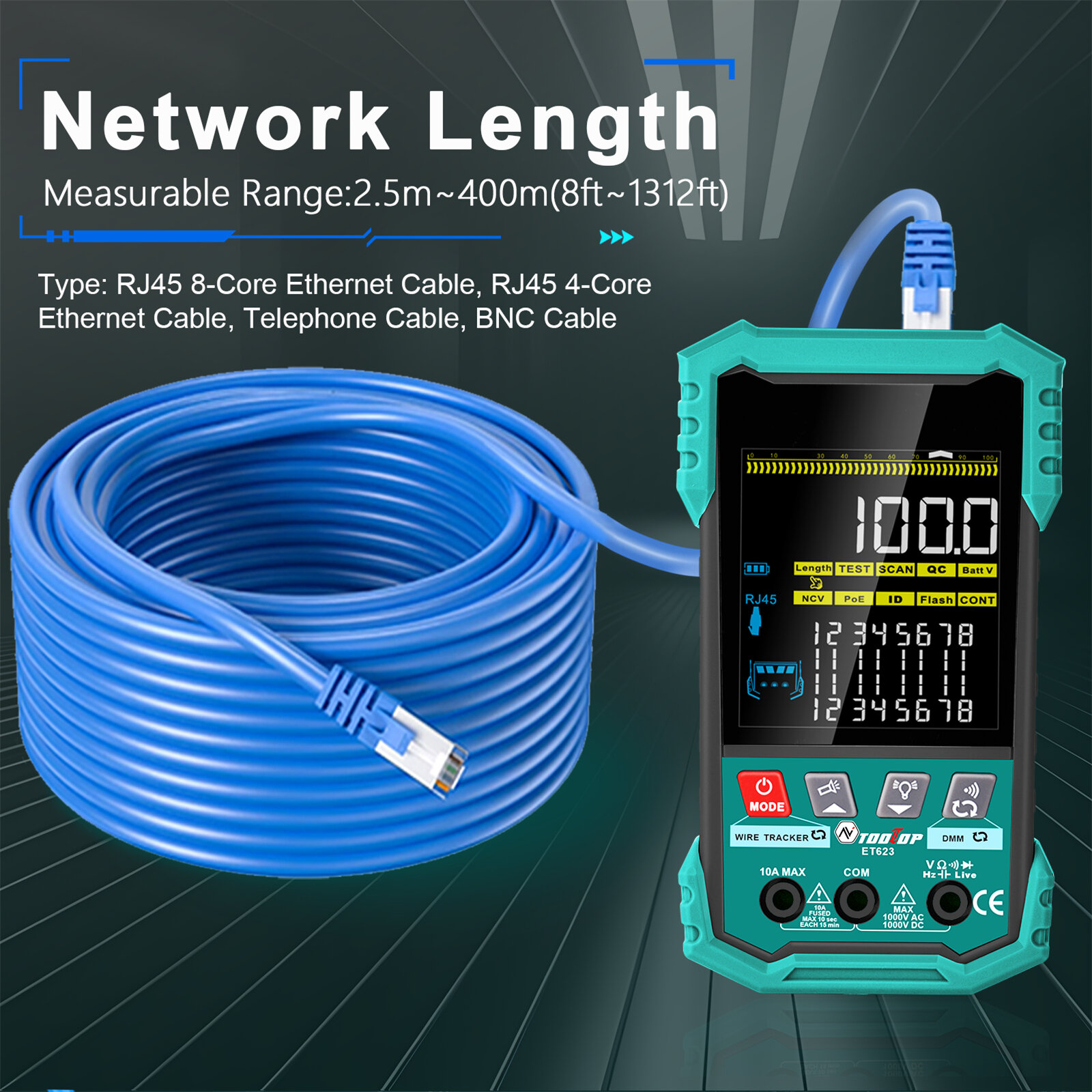

2. Precise Network Cable Measurement
Supports cable length measurement up to 400 meters with an accuracy of ±2%, ensuring reliable performance for professional applications.
3. Versatile Connectivity Testing
Comprehensive test functionality for crystal head crimping, circuit connection, and cable mapping, simplifying troubleshooting and diagnosis tasks.
4. Integrated Multimeter Functions (ET623)
ET623 includes a 6000-count multimeter for voltage, current, resistance, and capacitance measurements, making it an all-in-one tool suitable for electrical and networking professionals.
5. User-Friendly Features
Equipped with features like auto power off, low battery indication, flashlight, and sensitivity-adjustable tracing to enhance convenience during extended usage.
Package Included:
ET622
1 x Wire Tracker Main Unit
1 x Receiver Probe
1 x RJ45 Cable
1 x Crocodile Clip
1 x Type-C Charging Cable
1 x Carrying Case
1 x User Manual
ET623
1 x Wire Tracker Main Unit
1 x Receiver Probe
1 x RJ45 Cable
1 x Crocodile Clip
1 x Type-C Charging Cable
2 x Multimeter Probe
1 x Carrying Case
1 x User Manual
