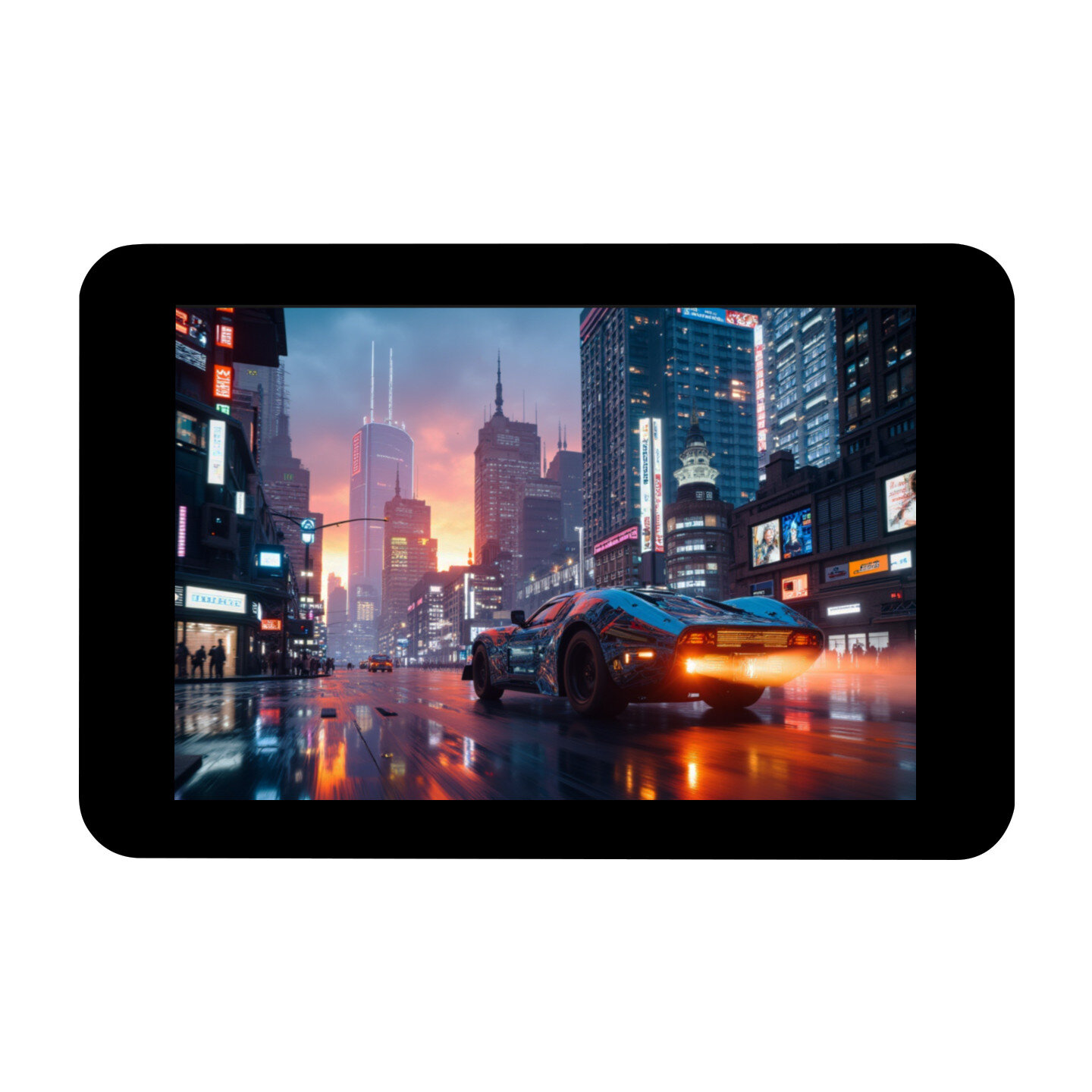

ESP32-S3 3.5inch Capacitive Touch Display Development Board Supports Wi-Fi and Bluetooth 5 ESP32 Support Xiaozhi AI DeepSeek
143
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296Feature:

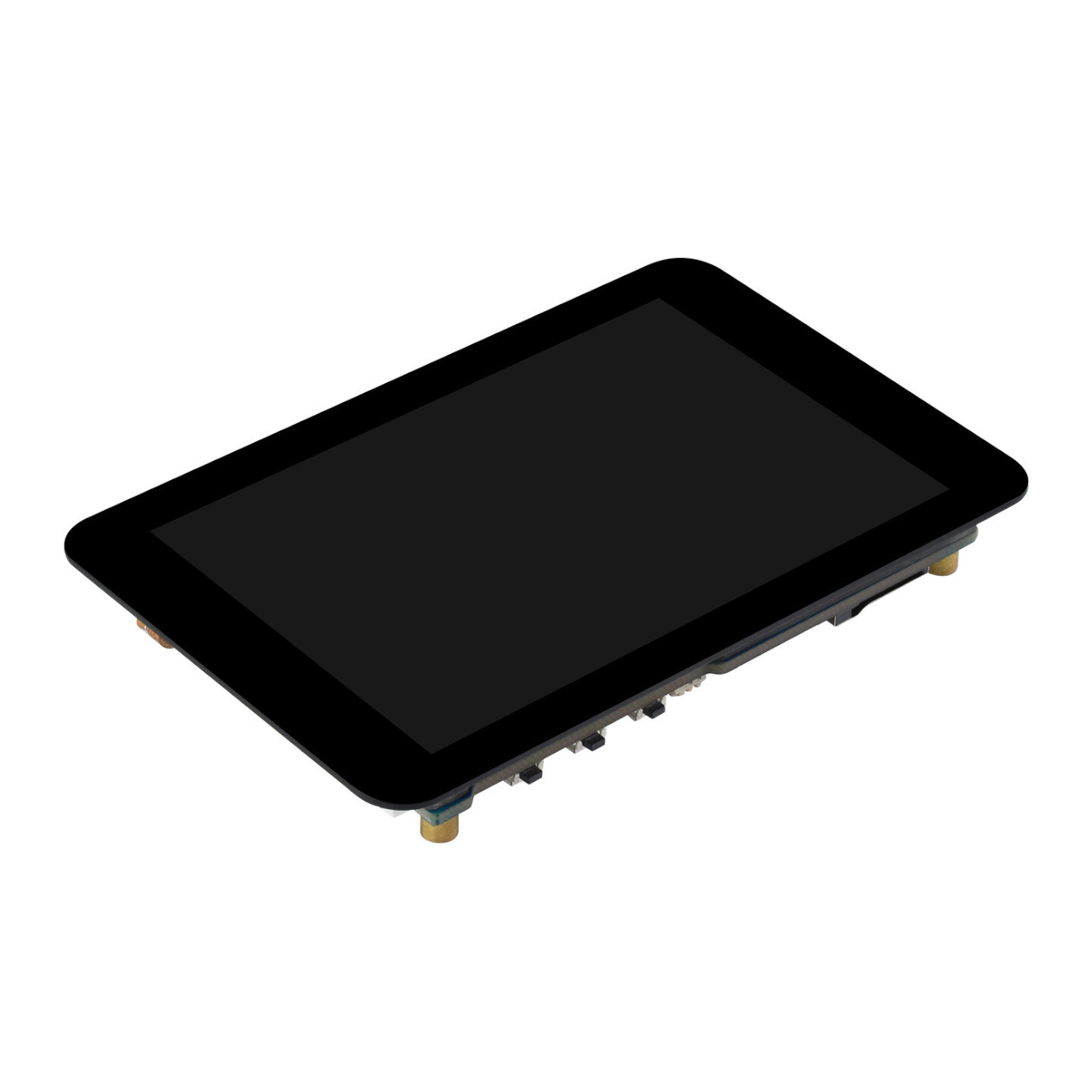

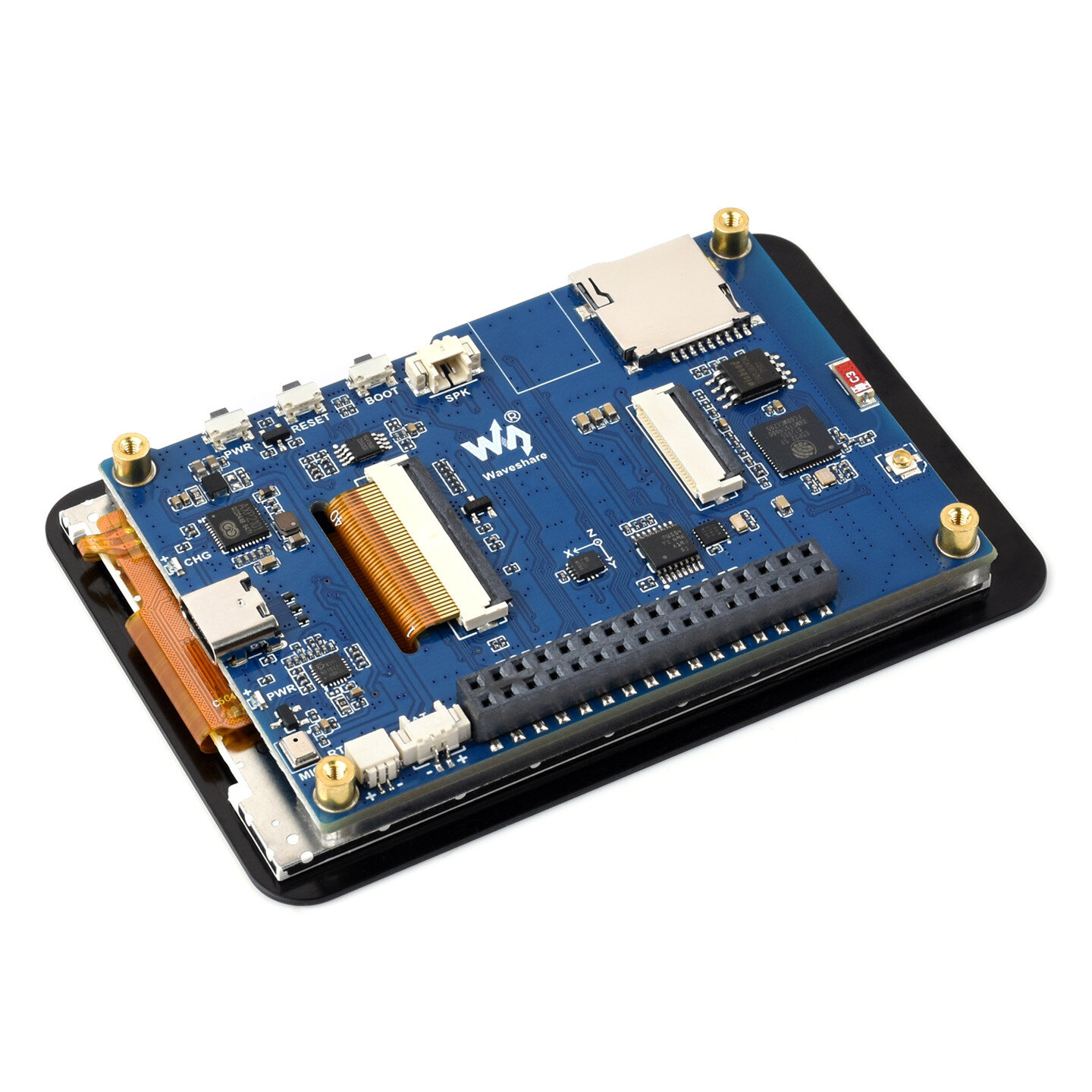

ESP32-S3-Touch-LCD-3.5B is a high-performance, highly integrated MCU board designed by Waveshare. Onboard 3.5inch capacitive touch IPS display, power management IC, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RTC, low power audio codec, and so on, which makes it easy for you to develop and integrate into the products quickly.
Key features include:
1. Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
2. Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
3. Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
4. Type-C connector, improving device compatibility, easier to use

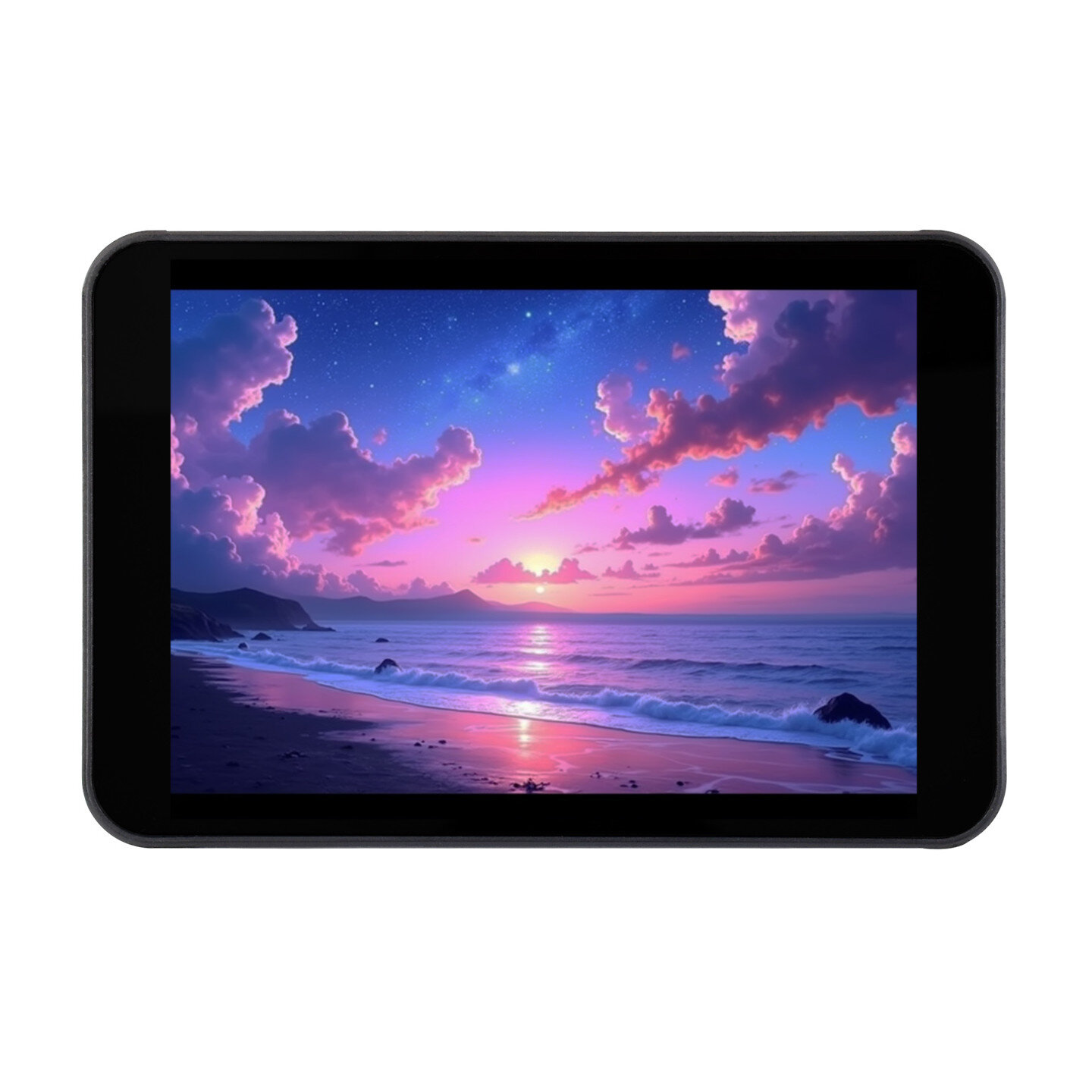

5. Onboard 3.5inch IPS capacitive touch display for clear color picture display, 320 u00d7 480 resolution, 262K color
6. Built-in AXS15231B LCD & touch controller, using QSPI and I2C communication respectively
7. Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc.
8. Onboard PCF85063 RTC chip, powered by main Lithium battery through AXP2101 chip, with reserved RTC battery header for connecting a backup battery, ensuring RTC function during the replacement of the main battery
9. Onboard PWR and BOOT programmable buttons for easy custom function development
10. Onboard 3.7V MX1.25 Lithium battery recharge/discharge header
11. Adapting I2C, UART, USB, and multiple GPIO pins, for connecting peripherals and debugging
12. Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design
13. Onboard camera interface, compatible with mainstream cameras such as OV2640 and OV5640
14. Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc.
LCD Parameters:
| Display Panel | IPS | Display Size | 3.5 inch |
| Resolution | 320 u00d7 480 pixels | Display Colors | 262K |
| Brightness | 210 cd/ u33a1 | Contrast Ratio | 1000:01:00 |
| Driver IC | AXS15231B | Touch Type | Capacitive |
| Display Interface | QSPI | Touch Interface | I2C |

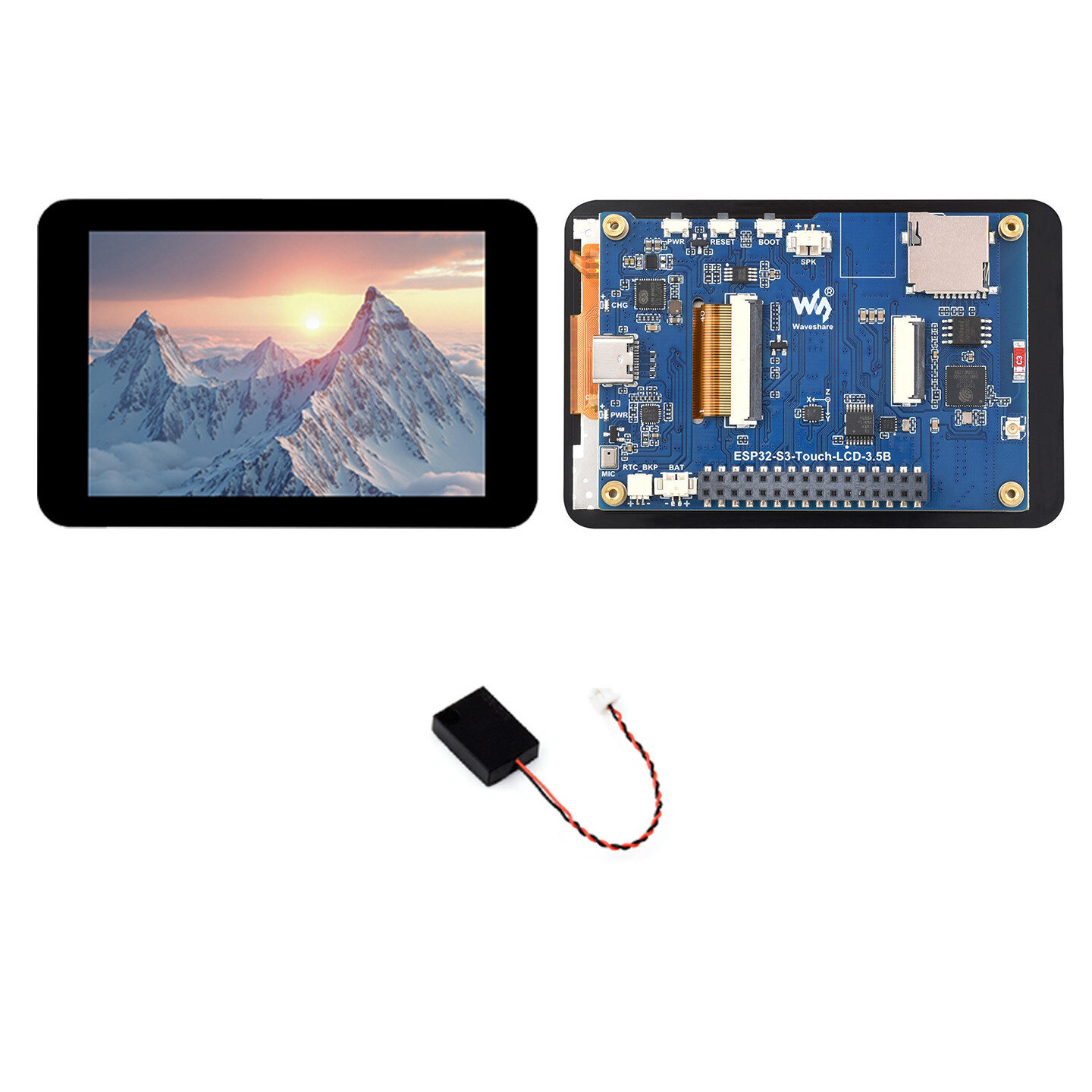

Package includes:
1 x ESP32-S3-Touch-LCD-3.5B
1 x 6u03a9 1W speaker
or

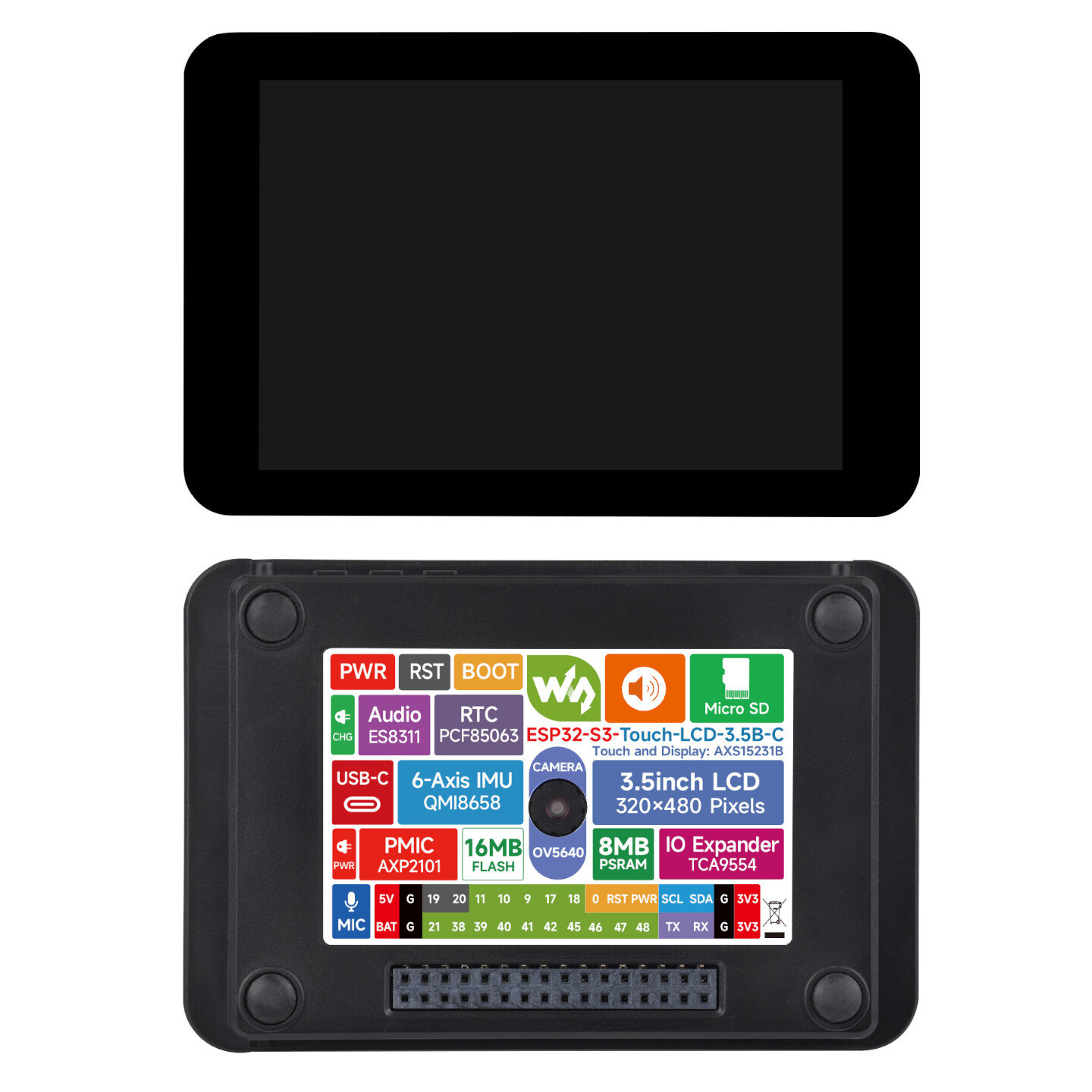

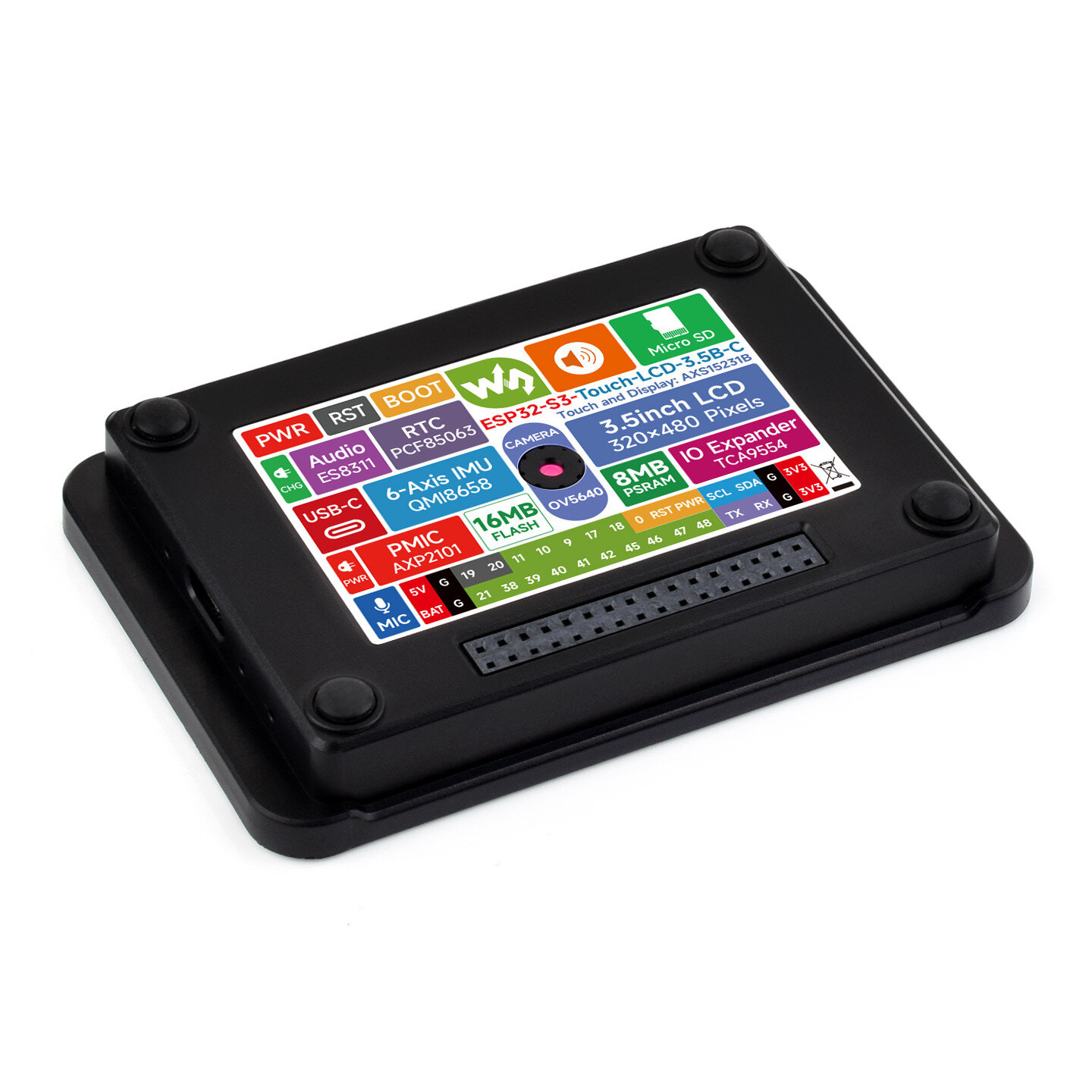

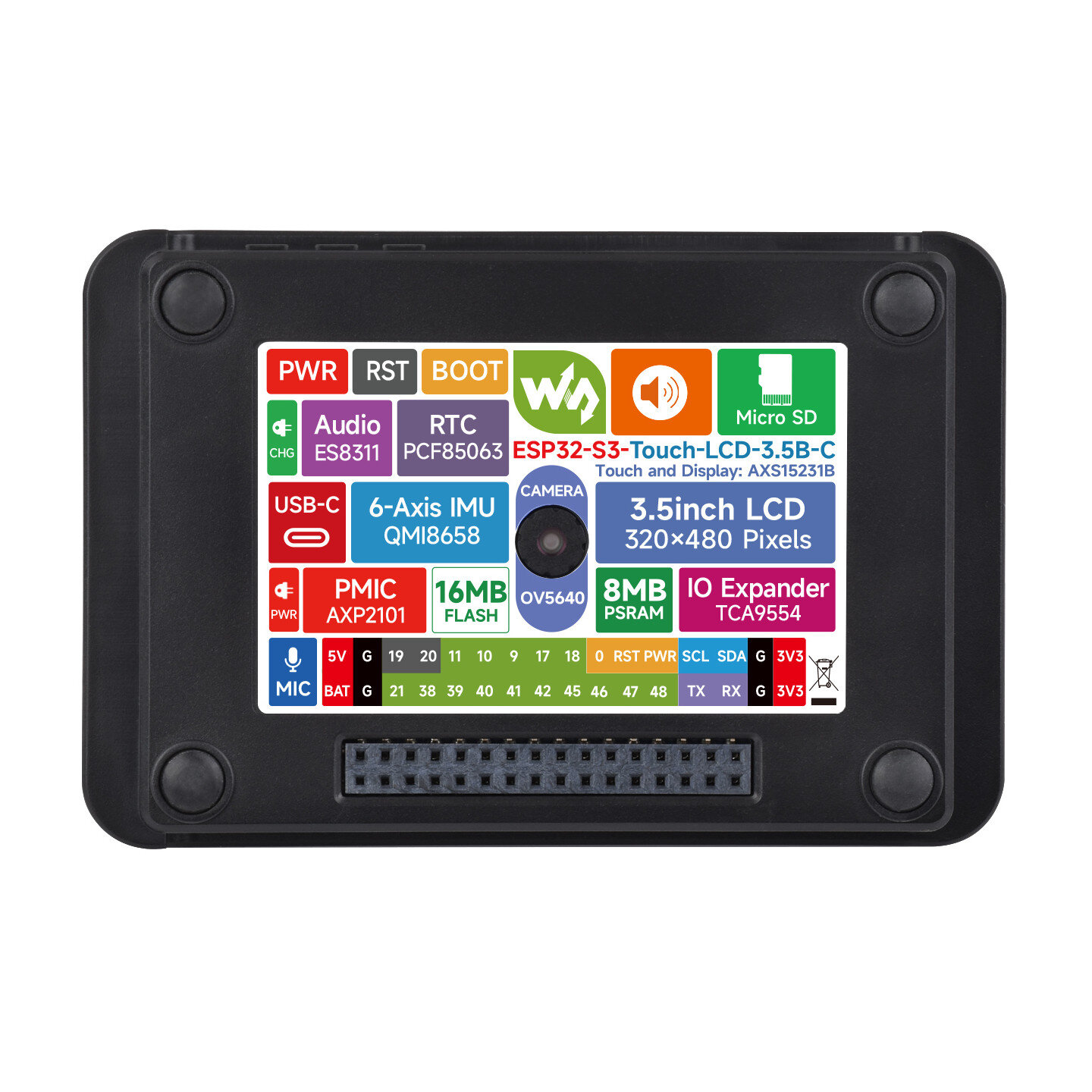

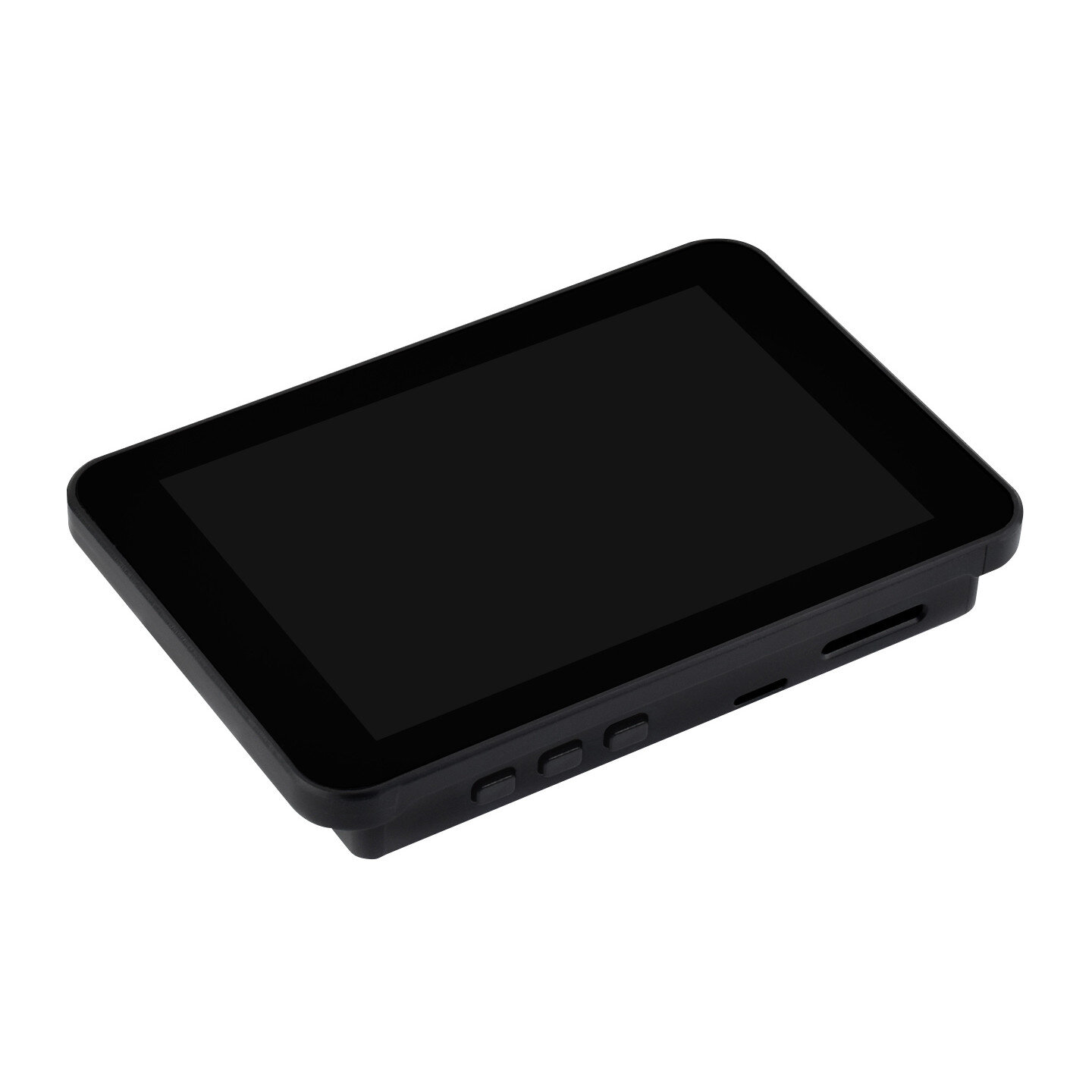

1 x ESP32-S3-Touch-LCD-3.5B-C with case and OV5640 camera
