You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +4475498702964 Types optional: C6 without touch, C6 with touch, S3 without touch, S3 with touch

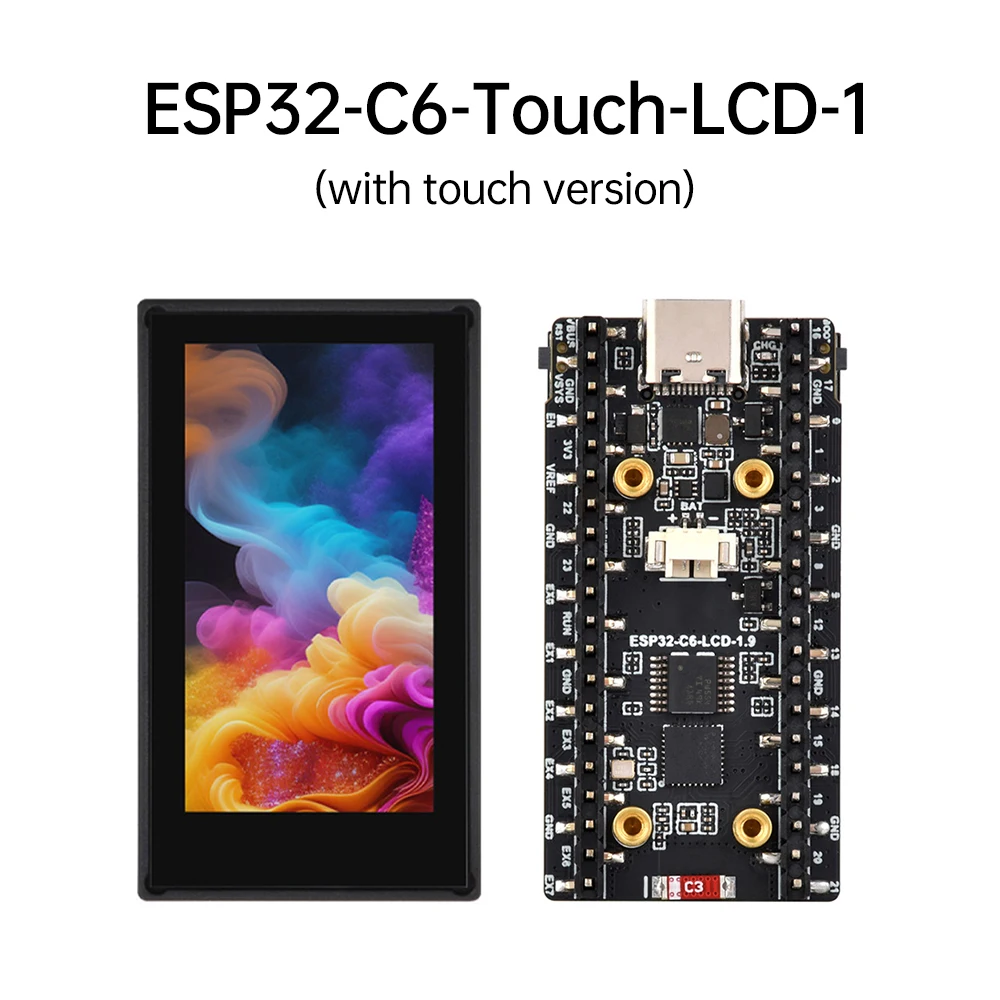

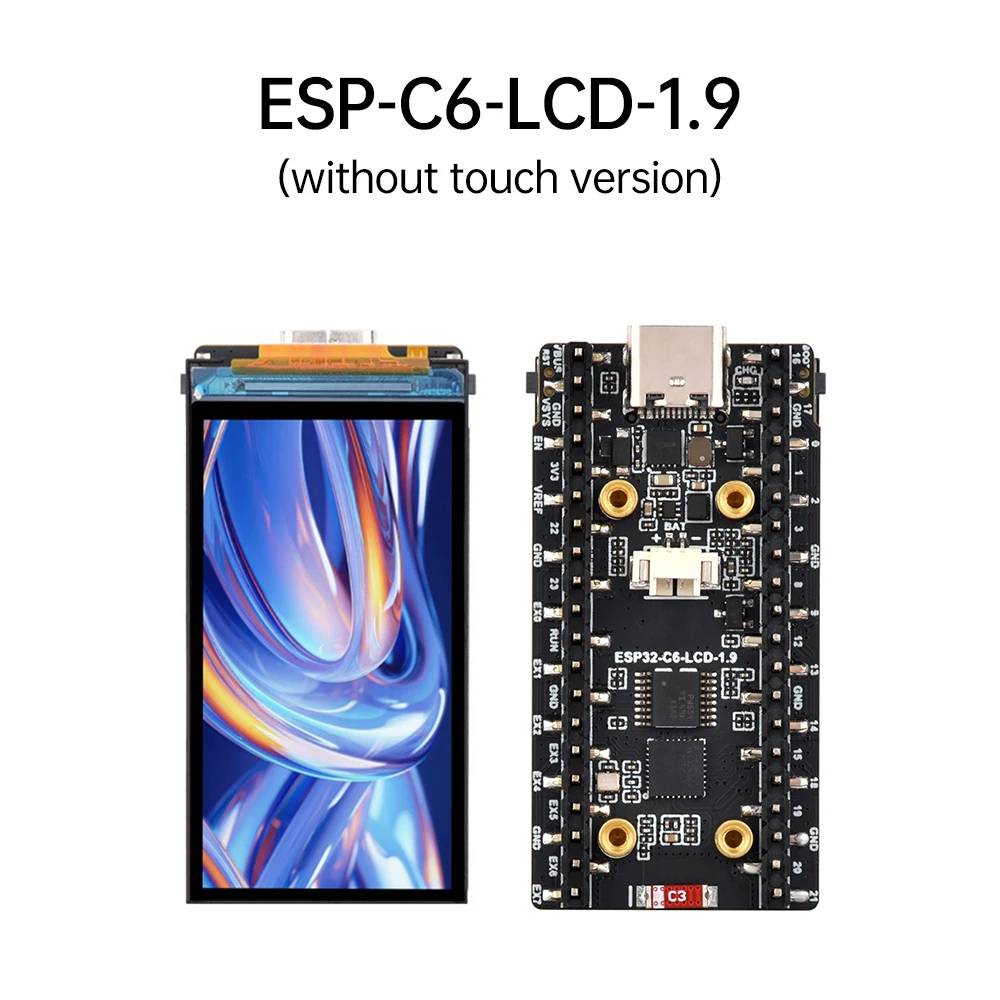

ESP32-C6:
This product uses ESP32-C6FH8 chip, supports 2.4GHz Wi Fi 6 and BLE 5 BT functions, stacks 8MB Flash, onboard 1.9-inch LCD display, and can smoothly run GUI interface programs such as LVGL. Onboard QMI8658 six axis sensor, Micro SD card slot, lithium battery charging and other peripheral resources, while reserving Pico compatible pin interface, strong compatibility and scalability, can quickly develop ESP32-C6 HMI and other applications.
Speicification:
1. Equipped with ESP32-C6 high-performance 32-bit RISC-V processor, with a clock speed of up to 160MHz
2. Supports 2.4GHz Wi Fi 6 (802.11 ax/b/g/n) and BT 5 (LE), onboard antenna
3. Built in 512KB HP SRAM, 16KB LP SRAM, and 320KB ROM, stacked with 8MB Flash
4. Onboard 1.9-inch LCD screen, 170 x 320 resolution, 262K color, capable of displaying color images clearly
5. Onboard QMI8658 six axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), capable of detecting motion posture and expanding applications
6. Onboard USB Type-C interface, can be used for power supply and download debugging, convenient for development and use
7. Onboard 3.7V MX1.25 lithium battery charging and discharging interface
8. Onboard Micro SD card slot, capable of external SD card storage for images or files
9. Onboard Pico compatible interface, introducing rich peripheral interfaces with strong compatibility and scalability
LCD screen specification:
Display panel: LCD
Display size: 1.9 inches
Display resolution: 170 x 320
Display color: 262K
Display brightness: 500cd/m u00b2
Contrast ratio: 900:1
Communication interface: SPI
Driver IC: ST789V2
Touch: Supports (only with touch version)
Touch IC: CST816 (with touch version only)
Features:
1. Equipped with ESP32-C6 RISC-V processor, with a main frequency of 160MHz, supporting Wi Fi 6 and Bt 5 functions.
2. Equipped with a 1.9-inch LCD screen and a resolution of 170 x 320262K color display, the image quality is clear and delicate.
3. Built in QMI8658 six axis sensor, supporting motion posture detection and expanding more application scenarios.
4. Onboard Type-C interface, Micro SD card slot, and lithium battery charging and discharging interface for convenient storage and power supply needs.
5. Compatible with Pico pin interface, rich peripheral resources, easy to quickly develop HMI and other applications.

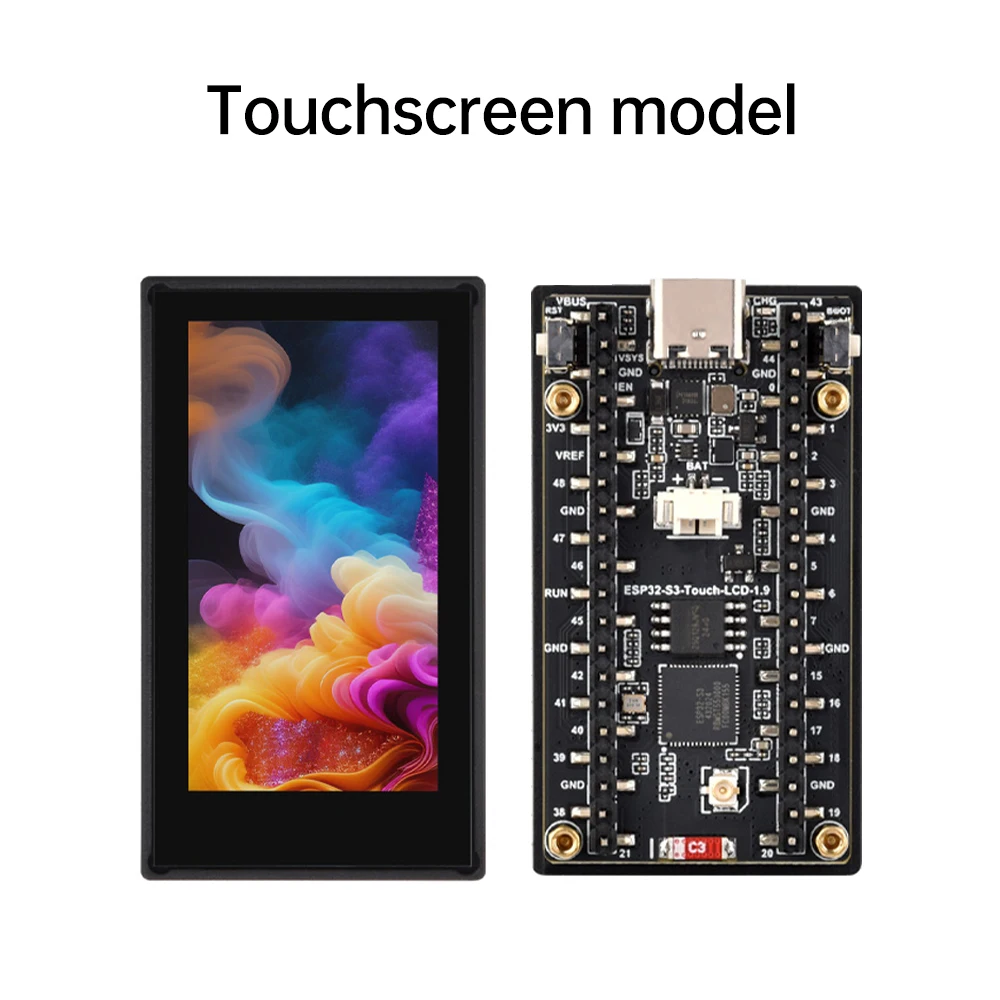

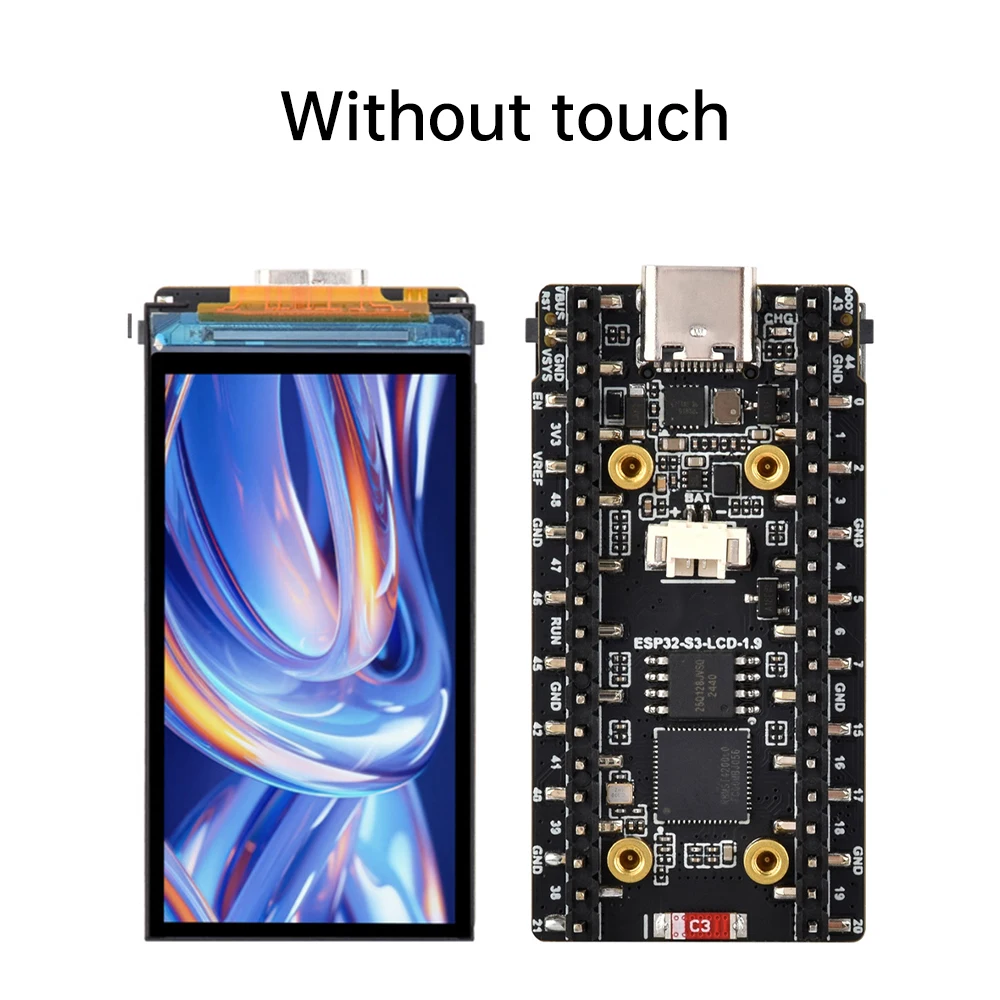

ESP-S3:
This product uses ESP32-S3R8 chip, supports 2.4GHz Wi Fi and BLE 5 BT functions, integrates large capacity Flash and PSRAM, onboard 1.9-inch LCD display, and can smoothly run GUI interface programs such as LVGL. Onboard QMI8658 six axis sensor, Micro SD card slot, lithium battery charging and other peripheral resources, while reserving Pico compatible pin interface, strong compatibility and scalability, can quickly develop ESP32-S3 HMI and other applications.
Specification:
1. Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual core processor, with a clock speed of up to 240MHz
2. Supports 2.4GHz Wi Fi (802.11 b/g/n) and BT 5 (LE), onboard antenna
3. Built in 512KB SRAM and 384KB ROM, stacked with 8MB PSRAM and external 16MB Flash
4. Onboard 1.9-inch LCD screen, 170 x 320 resolution, 262K color, capable of displaying color images clearly
5. Onboard QMI8658 six axis inertial measurement unit (3-axis acceleration, 3-axis gyroscope), capable of detecting motion posture and expanding applications
6. Onboard USB Type-C interface, can be used for power supply and download debugging, convenient for development and use
7. Onboard 3.7V MX1.25 lithium battery charging and discharging interface
8. Onboard Micro SD card slot, capable of external SD card storage for images or files
9. Onboard Pico compatible interface, introducing rich peripheral interfaces with strong compatibility and scalability
LCD screen specification:
Display panel: LCD
Display size: 1.9 inches
Display resolution: 170 x 320
Display color: 262K
Display brightness: 500cd/m u00b2
Contrast ratio: 900:1
Communication interface: SPI
Driver IC: ST789V2
Touch: Supports (only with touch version)
Touch IC: CST816 (with touch version only)
Features:
1. Equipped with ESP32-S3R8 dual core processor, with a clock speed of 240MHz, supporting Wi Fi and BT 5 functions.
2. Equipped with a 1.9-inch LCD screen and a resolution of 170 x 320262K color display, the image quality is clear and delicate.
3. Built in QMI8658 six axis sensor, supporting motion posture detection and expanding more application scenarios.
4. The onboard Micro SD card slot and lithium battery charging and discharging interface facilitate storage and power supply needs.
5. Compatible with Pico pin interface, rich peripheral resources, easy to quickly develop HMI and other applications.
Package Included:
1 x Development Board
