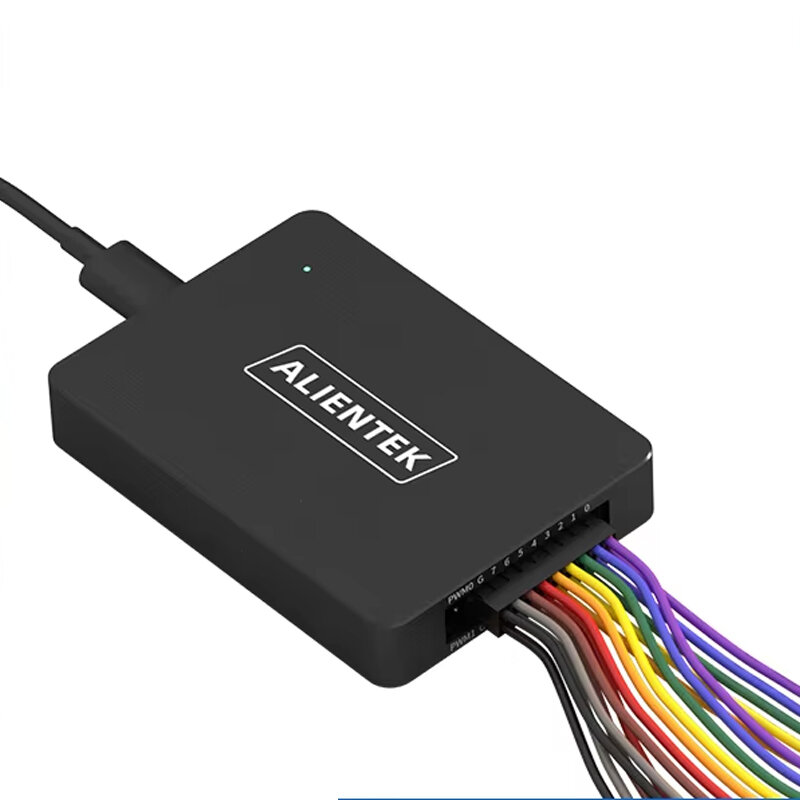

DL16/DL16 Plus LogicAnalyzer 16 Channels 1GHz Max Sampling Rate USB Type-C Protocol Decoding ARM FPGA Debugging Tool
1
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296

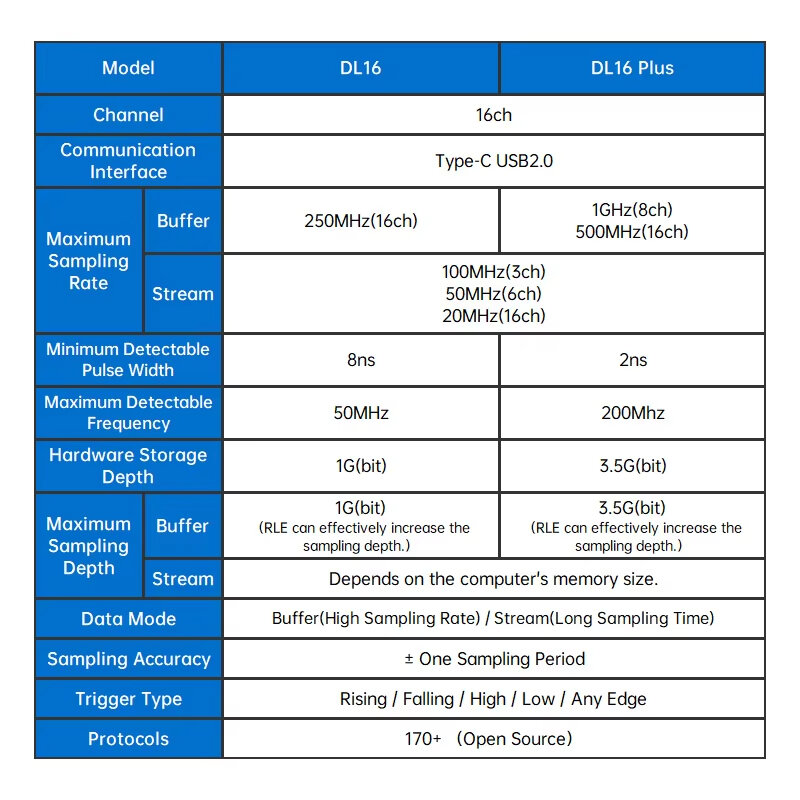

Specifications:
Model: DL16 / DL16 Plus
Channels: 16 channels
Communication Interface: Type-C USB 2.0
Maximum Sampling Rate:
DL16: 250MHz (16 channels)
DL16 Plus: 1GHz (8 channels), 500MHz (16 channels)
Minimum Detectable Pulse Width:
DL16: 8ns
DL16 Plus: 2ns
Maximum Detectable Frequency:
DL16: 50MHz
DL16 Plus: 200MHz
Hardware Storage Depth:
DL16: 1Gbit
DL16 Plus: 3.5Gbit
Trigger Type: Rising / Falling / High / Low / Any Edge
Protocols Supported: Over 170 (Open Source)
Input Voltage Range: -40V to +40V
Input Impedance: 250Ku03a9 / 15pF
Adjustable Threshold: -5V to +5V (0.1V step)
PWM Frequency Range: 1Hz to 20MHz (Fixed 3.3V) Dual Channels
Channel Interface: 2.54mm
Power Supply Voltage: 5V u00b1 0.2V
Power Supply Current: 250mA (@ 5V max)
Dimensions: 75mm x 53mm x 12mm
Operating Temperature: 0u00b0C to 70u00b0C
Features:
1.High Speed Data Acquisition:
DL16 Plus achieves an impressive maximum sampling rate of 1GHz, ensuring precise signal capture even in high-frequency applications.

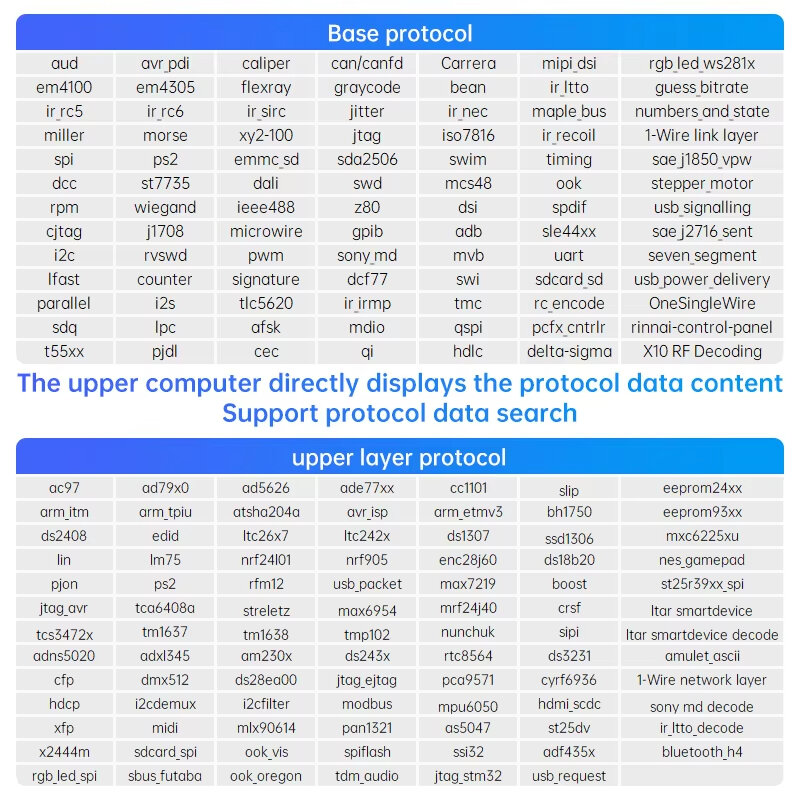

2.Extensive Protocol Support:
Compatible with over 170 open-source protocols, it supports a wide range of decoding needs for ARM, FPGA, and other debugging tasks.
3.Enhanced Storage Capacity:
Equipped with 3.5Gbit onboard storage in the DL16 Plus model for improved data handling, allowing extended and accurate sampling sessions.
4.Wide Voltage Range Input:
The analyzer accommodates input voltage from -40V to +40V, making it suitable for various testing environments and devices.
5.Compact and Portable Design:
Lightweight (12mm thick) and easy to transport, yet robust enough to handle intensive debugging in both laboratory and field setups.
Package Included:

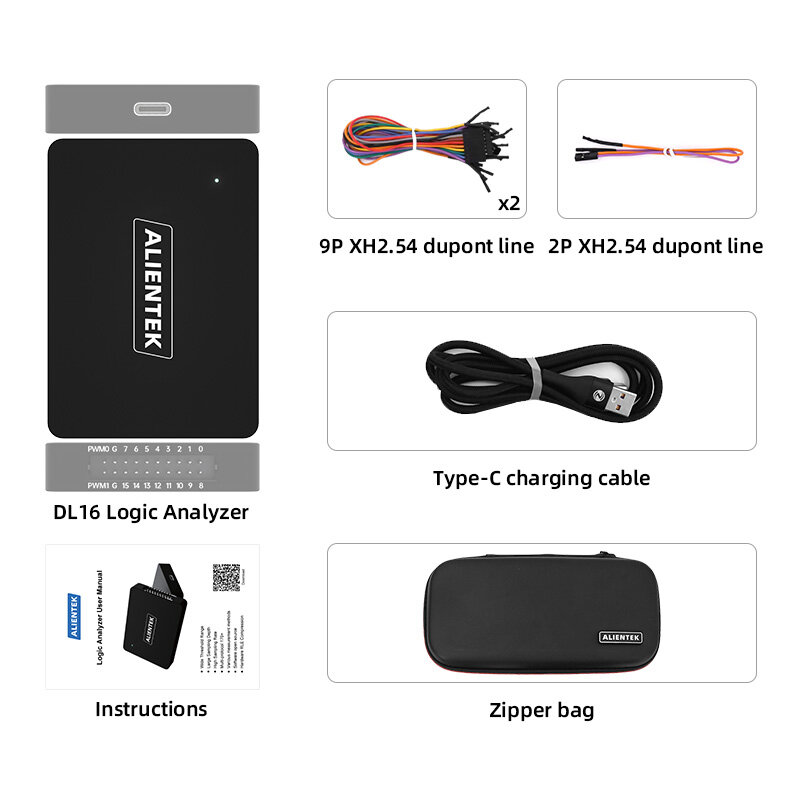

Type A:
1 x DL16 Analyzer
2 x 9P XH2.54 Dupont Line
1 x 2P XH2.54 Dupont Line
1 x Charging Cable
1 x Zipper Case
1 x User Manual
Type B:
1 x DL16 Plus Analyzer
2 x 9P XH2.54 Dupont Line
1 x 2P XH2.54 Dupont Line
1 x Charging Cable
1 x Zipper Case
1 x User Manual

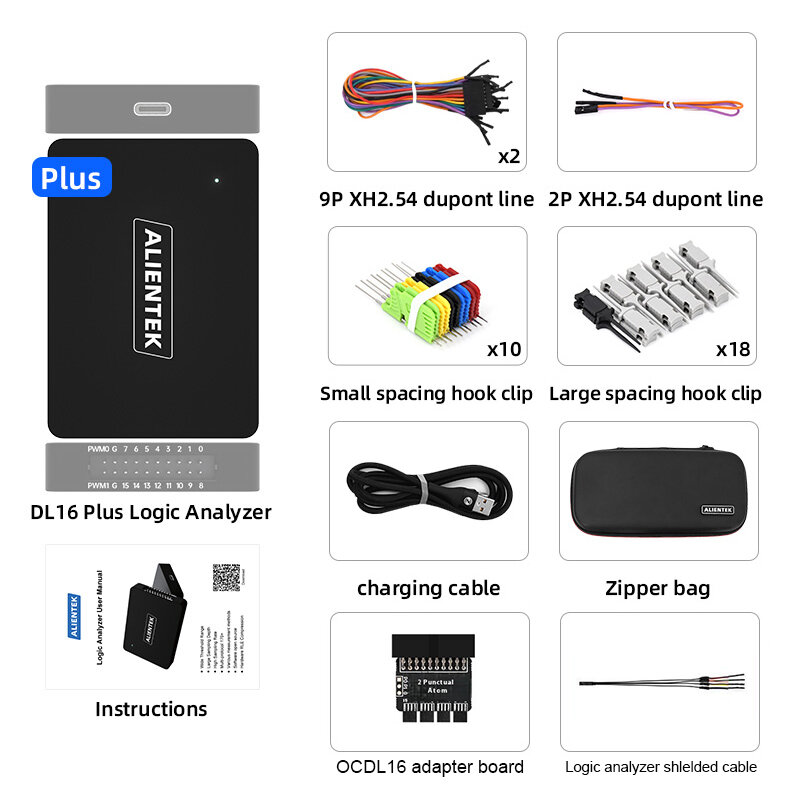

Type C:
1 x DL16 Plus Analyzer
2 x 9P XH2.54 Dupont Line
1 x 2P XH2.54 Dupont Line
10 x Small Spacing Hook Clip
18 x Large Spacing Hook Clip
1 x Charging Cable
1 x Analyzer Shielded Cable
1 x OCDL16 Adapter Board
1 x Zipper Case
1 x User Manual
