DALY YH YK YM Battery Management System 7-24S Li-ion LiFePO4 48V60V Smart Bluetooth Version BMS 30A-200A High Current Protection Module
83
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296Note: Li-ion battery type can only reach 20 strings. LiFePO4 battery type can reach up to 24 strings.

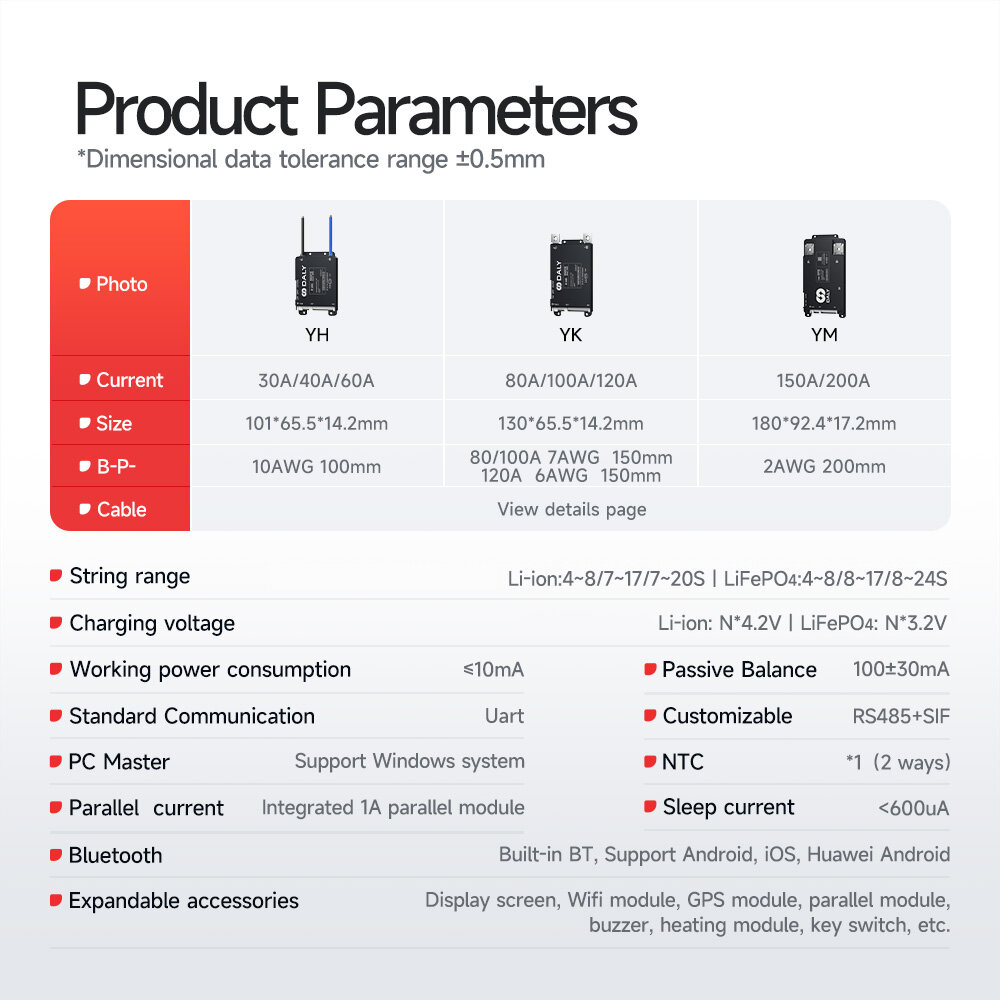

Specification:
Battery Type Compatibility: Intelligent recognition for Li-ion/LiFePO4 batteries

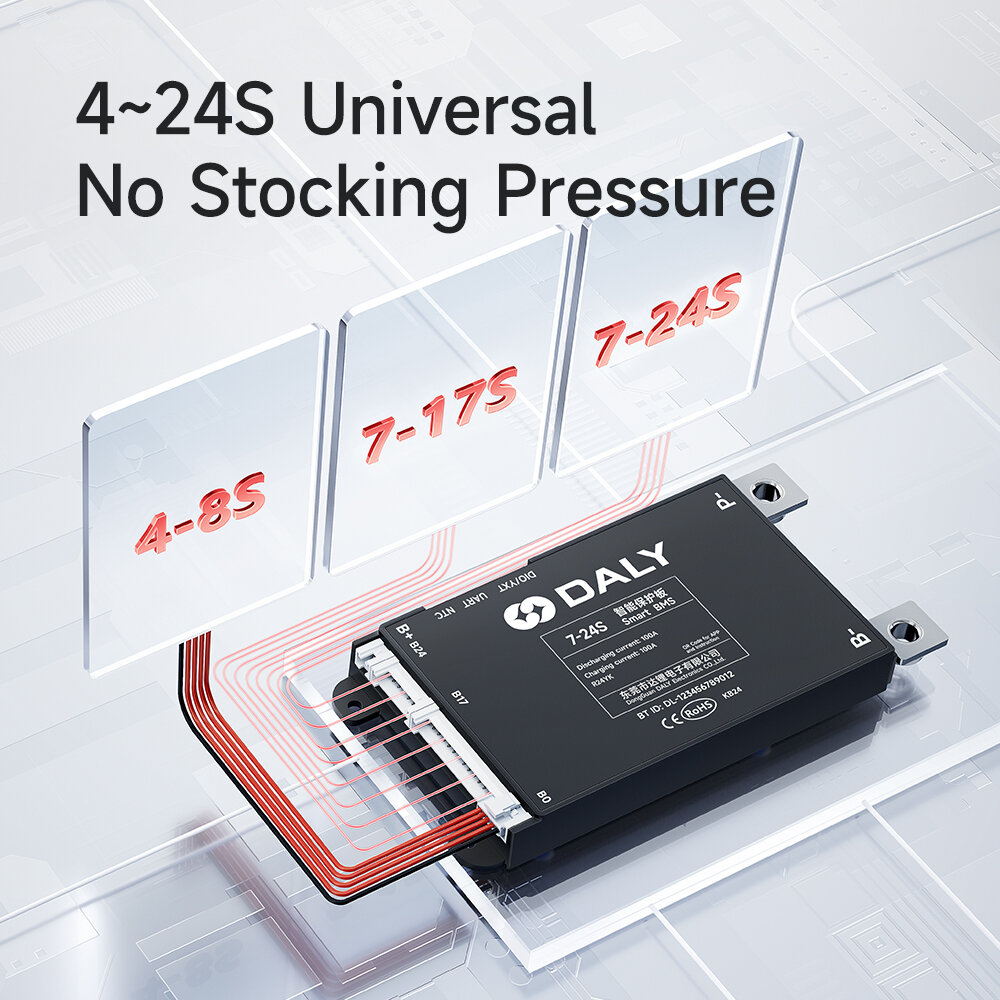

String Number Range: Supports 7S to 24S configurations
Charging Voltage:
Li-ion: N x 4.2V
LiFePO4: N x 3.2V

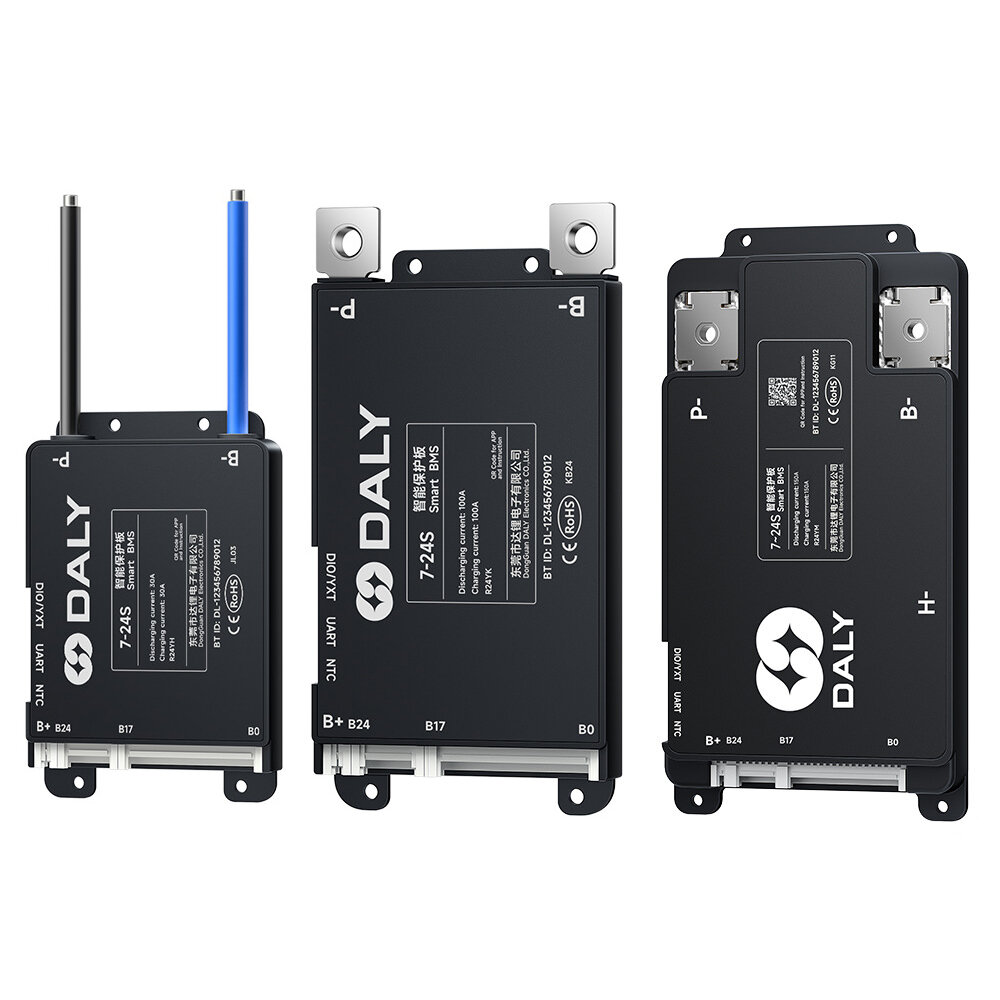

Type:

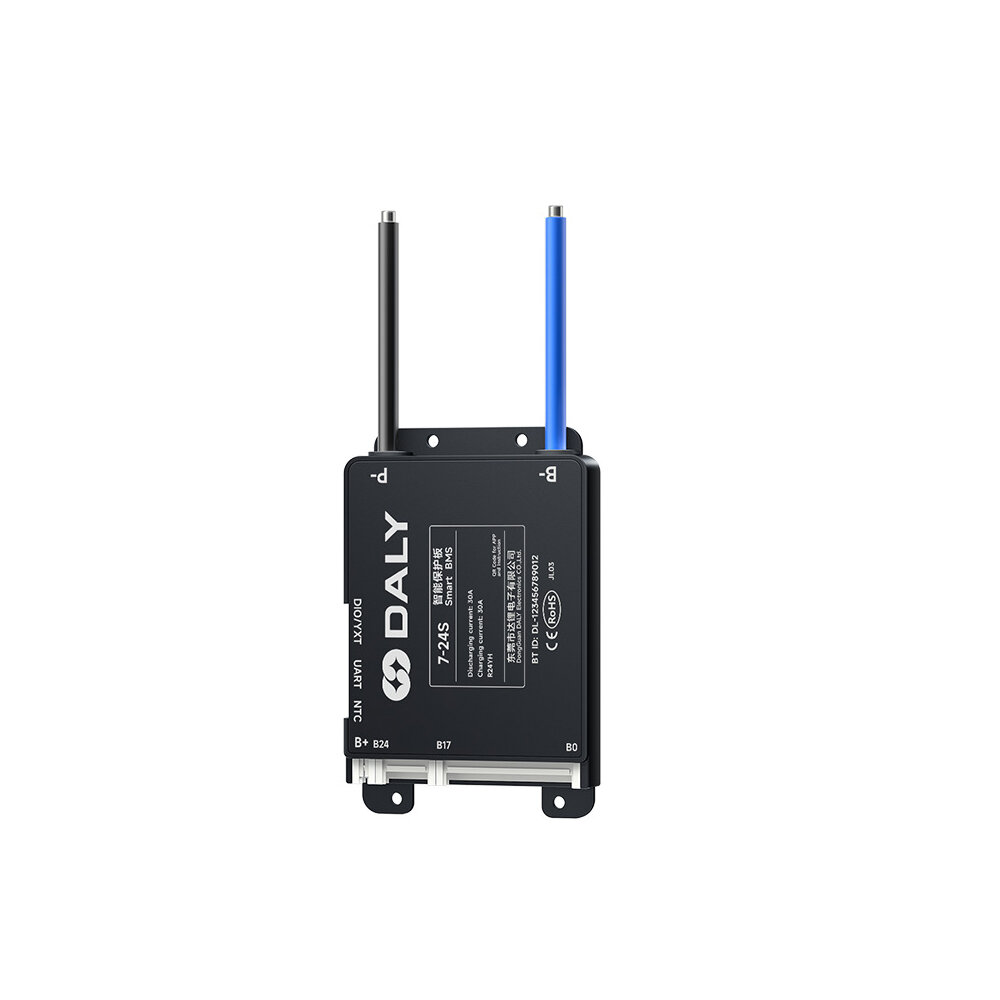

[7-24S LiFePO4 30A] , [7-24S LiFePO4 40A], [7-24S LiFePO4 60A]
Model: YH
Current: 30A/40A/60A
Size: 101x65.5x14.2mm
B-P-: 10AWG 100mm
Cable: 450mm
[7-24S LiFePO4 80A] , [7-24S LiFePO4 100A]
Model: YK
Current: 80A/100A
Size: 130x65.5x14.2mm
B-P-: 7AWG 150mm
Cable: 550mm

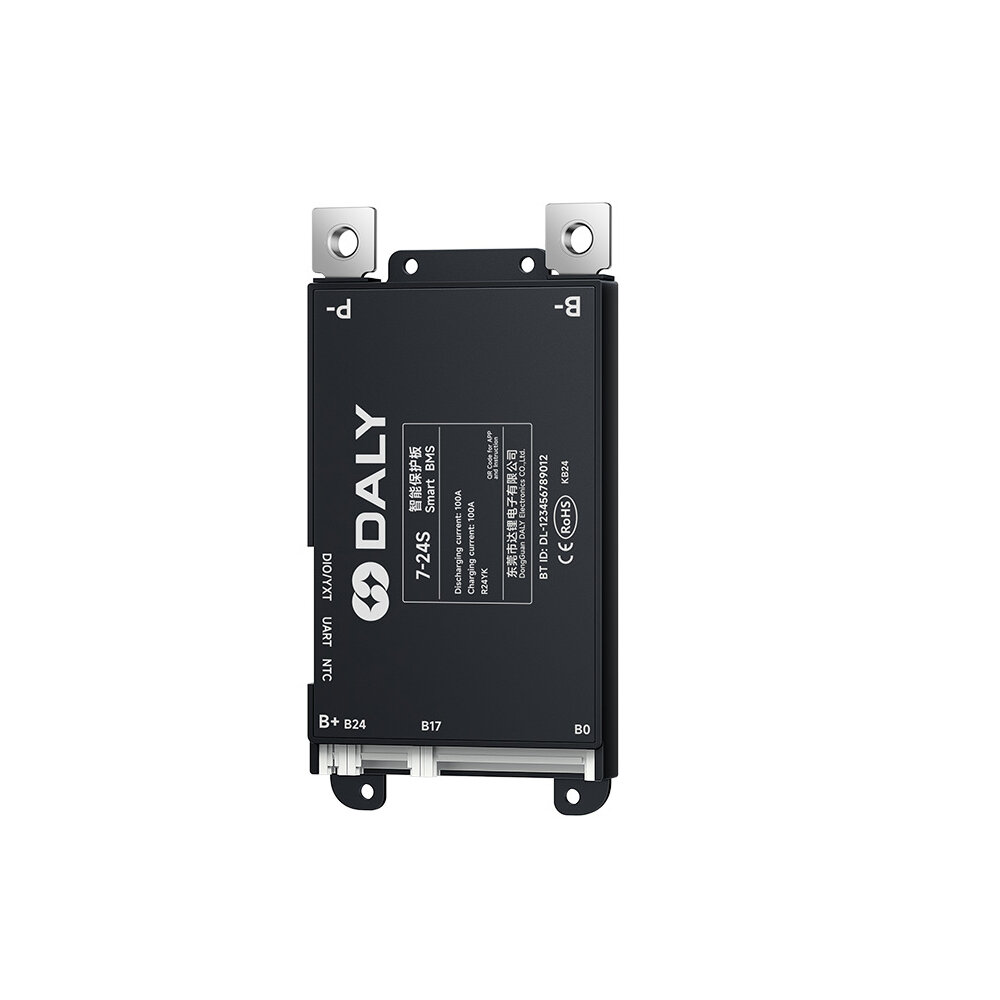

[7-24S LiFePO4 120A]
Model: YK
Current: 120A
Size: 130x65.5x14.2mm
B-P-: 6AWG 150mm
Cable: 550mm

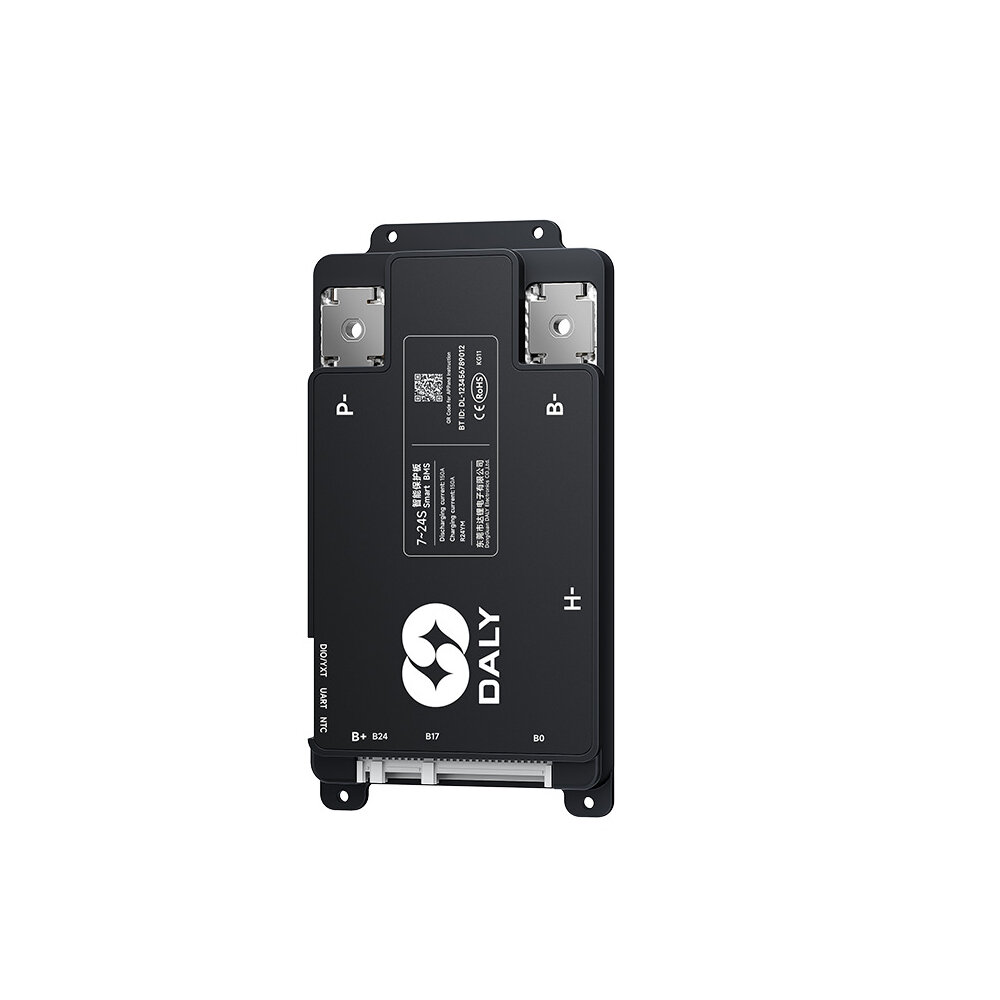

[7-24S LiFePO4 150A] , [7-24S LiFePO4 200A]
Model: YM
Current: 150A/200A
Size: 180x92.4x17.2mm
B-P-: 2AWG 200mm
Cable: 550mm
Features:
1. Wide Compatibility for Battery Types and Configurations
Supports both Li-ion and LiFePO4 batteries with intelligent recognition and compatibility across 7S to 24S configurations, ensuring versatile application for various energy storage needs.(Note: Li-ion battery type can only reach 20 strings. LiFePO4 battery type can reach up to 24 strings. )
2. High Current Options for Efficient Power Management
Available in a range of current capacities from 30A to 200A, this BMS offers tailored solution for diverse power requirements while maintaining a compact and thin design.
3. Precision Voltage Control to Optimize Charging
Delivers exact charging voltages based on the string configurationu20144.2V per cell for Li-ion and 3.2V per cell for LiFePO4 batteriesu2014to enhance overall system performance and safety.
4. Enhanced Safety with Heavy-Gauge Wiring
Equipped with robust wiring such as 10AWG to 2AWG based on current rating, ensuring secure and efficient power transmission for high-current operations.
5. Streamlined Thin Design for Space-Saving Applications
Constructed with a slim profile as small as 14.2mm thick, enabling integration into compact spaces while delivering reliable high-current performance.

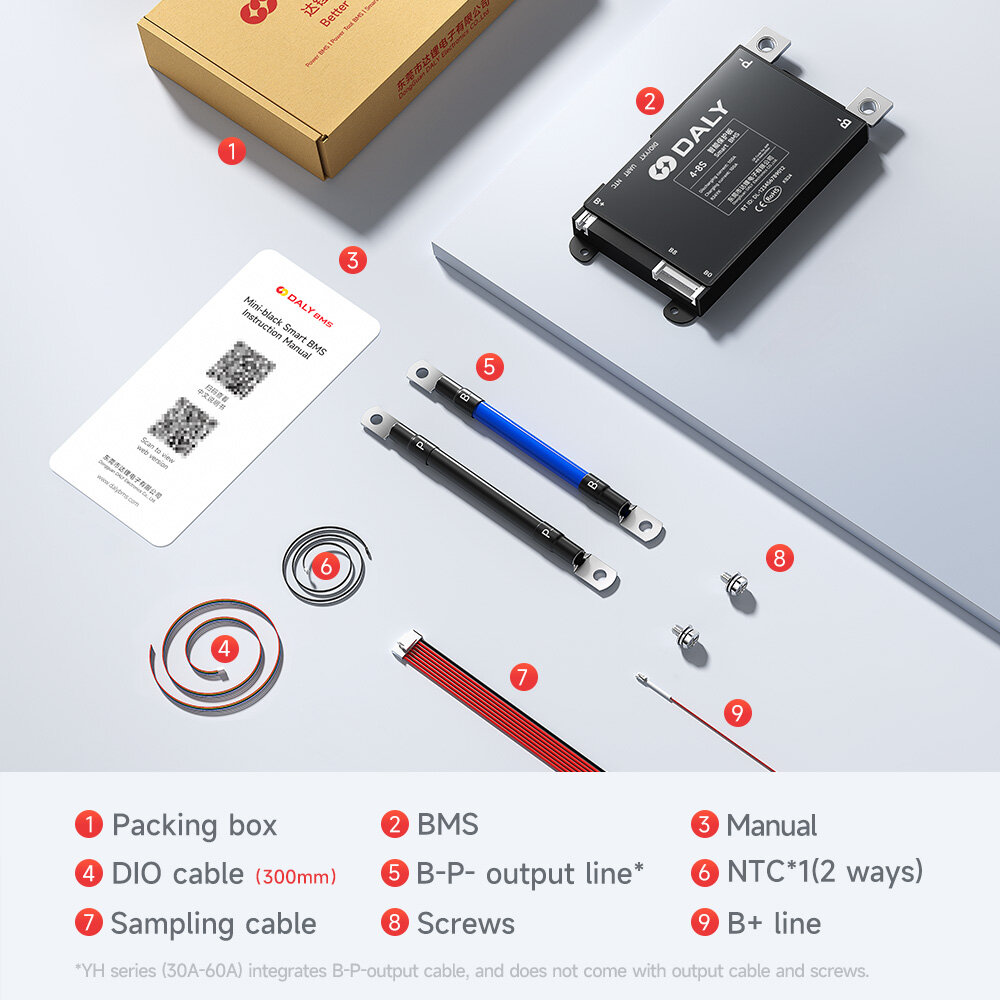

Package Included:
1 x Packing box
1 x Battery Management System (BMS)
1 x User Manual (Scan the QR code)
1 x DIO Cable (300mm)
1 x B-P- Output Line (varies based on model)
1 x NTC Cable
1 x B+ Line
1 x Sampling Cable
2 x Screws
