AV TOOLTOP OS-5C Five Channel Oscilloscope 1MHz Bandwidth 3MHz Sampling Rate USB Type-C Portable High Precision Waveform Analyzer WiFi Optional
17
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296
Specifications:
Screen: 4.3-inch IPS display, resolution 480*272
Channels: 5
Bandwidth: 1MHz
Maximum Sampling Rate: 3MHz for 3 channels / 1.5MHz for 4-5 channels
Input Impedance: 1Mu03a9/20pF
Input Mode: AC/DC
Maximum Measured Voltage: u00b110V (X10: u00b1100V)
Maximum Peak-to-Peak Voltage: 20V (X10: 200V)
Voltage Range:
PC Software/Mobile App: 2mV/div to 2V/div
Screen: 4mV/div to 4V/div
Time Base Range:
PC Software/Mobile App: 1u00b5s/div to 10800s/div
Screen: 1u00b5s/div to 4s/div
Recording Depth: 8M * 5 channels / Up to 90 hours
Waveform Modes: YT / XY / Roll
Vertical Resolution: 8 bits
Trigger Type: Rising Edge / Falling Edge
Data Display: Frequency, period, Vp-p, maximum, minimum, average, RMS, amplitude, duty cycle, pulse width
Languages: English / u4e2du6587 / Portuguu00eas / Espau00f1ol
Port Type: USB Type-C
Operating Voltage: 5V
Current Consumption: <2A
Battery: 3.7V/18650 / 2000mAh / Removable
Battery Standby Time: <3 hours
Signal Output Frequency: 1kHz
Wireless Support: Wi-Fi 2.4GHz or 5GHz (optional Wi-Fi version required)
Main Unit Dimensions: 150mm x 100mm x 32mm
Net Weight: 350g
Features:
1.Five Independent Channels: With five independent channels, the OS-5C enhances signal versatility and allows synchronized data recording on multiple sources, meeting the requirements of professionals and advanced learners.
2.High Sampling Rate of 3MHz: Supports high-resolution waveforms with sampling rates of up to 3MHz for three channels. Perfect for precise measurements in various projects.
3.Compact and Portable Design: Measuring only 150mm x 100mm x 32mm and weighing 350g, this oscilloscope offers a space-saving format ideal for on-the-go applications.
4.Multi-Platform Compatibility: Seamlessly connects via USB Type-C or optional Wi-Fi to PC software or mobile apps, offering real-time control and data analysis.
5.Removable Rechargeable Battery: Features a 2000mAh removable battery, enabling up to 3 hours of usage. Suited for tasks that demand reliable handheld operation.

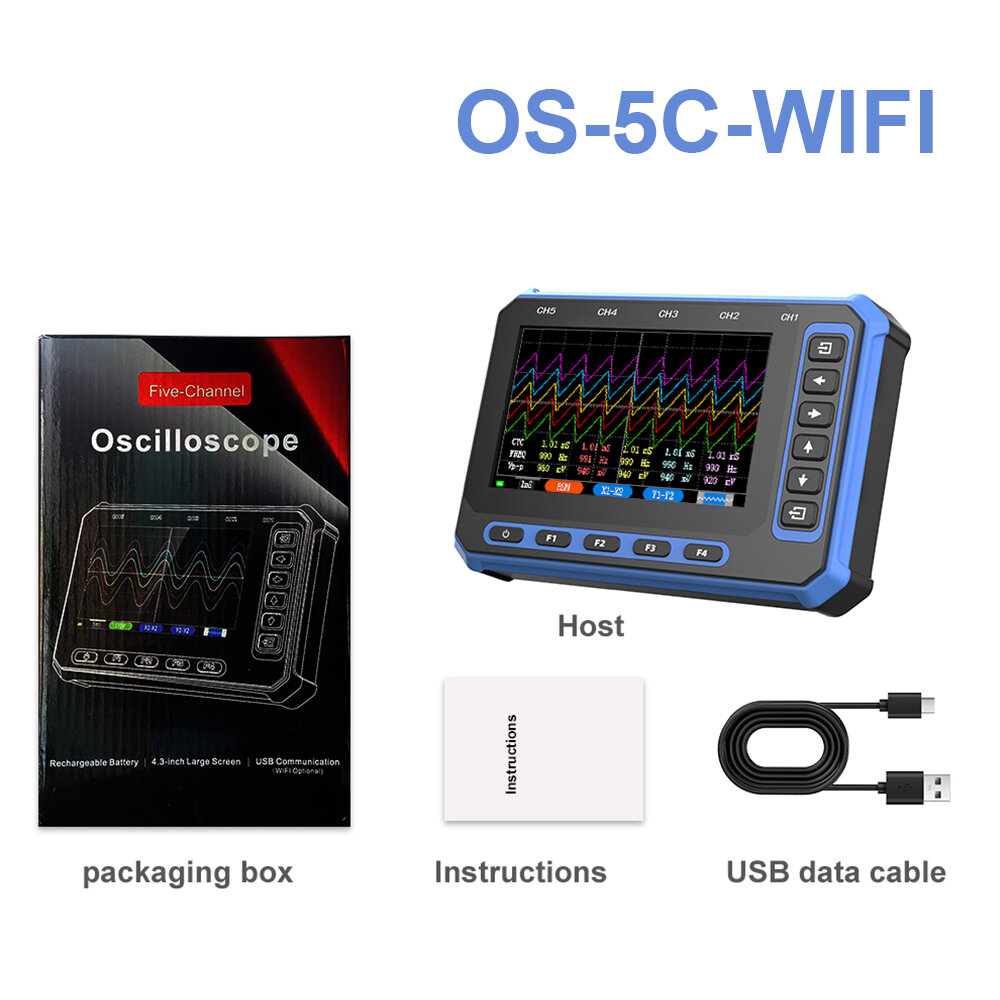

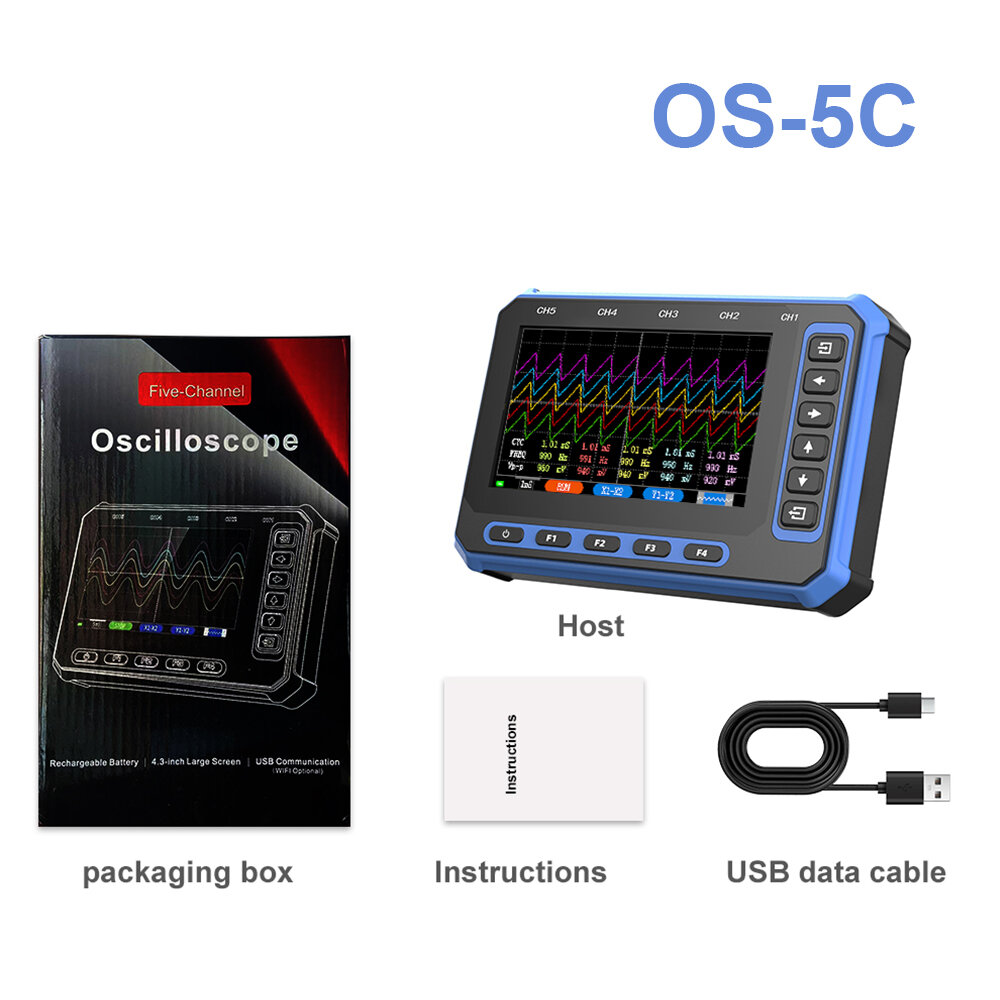

Package Included:
1 x Host Oscilloscope
1 x USB Data Cable
1 x User Manual
1 x Packaging Box
Optional:
5 x Oscilloscope Probes
