ATOMRC F405 NAVI Delux Module Flight Controller For FPV RC Airplane Fixed Wing Shock Absorption Support DJI Air Unit INAV
19
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296Specification:
Brand: ATOMRC
Model: F405 NAVI Delux
MCU: STM32F405RGT6
IMU: BMI270
Black Box: 16Mb
Servo BEC: 5V/6V/7.2V
VTX BEC: 9V
CAM BEC: 12V/5V
PWM Output: PWM*11
Uart: Uart+6
External USB-C Port: Buzzer/BOOT/Type C
LED: WS2812 LED Strip
Firmware: ArduPilot:ATOMRC F405 NAVI Delux; INAV:ATOMRC F405 NAVI Delux
Ammeter: 200A
Voltage Input: 12~30V (3~6S Lipo)
Mount Hole: 30u00d724x3 (mm)
Weight: 29g
Size: 50u00d731u00d717 (mm)
Feature:
1. Powerful MCU for Smooth Control: Integrated STM32F405RTG6 chip ensures high-speed processing and stable operation, ideal for INAV and ArduPilot firmware compatibility.
2. Built-in Bluetooth and WiFi Module: Equipped with Bluetooth module and WiFi functionality for convenient wireless parameter adjustments.
3. High Precision Sensors: Comes with BMI270 IMU and 200A current sensor for enhanced flight safety and precise telemetry readings.
4. Optimized Structural Design: Compact layered build with reduced heat dissipation interference for more efficient performance in tight installation spaces.
5. Versatile BEC Options: Supports multiple outputs including 5V/6V/7.2V servo BEC and 12V/5V camera BEC, accommodating diverse power needs.

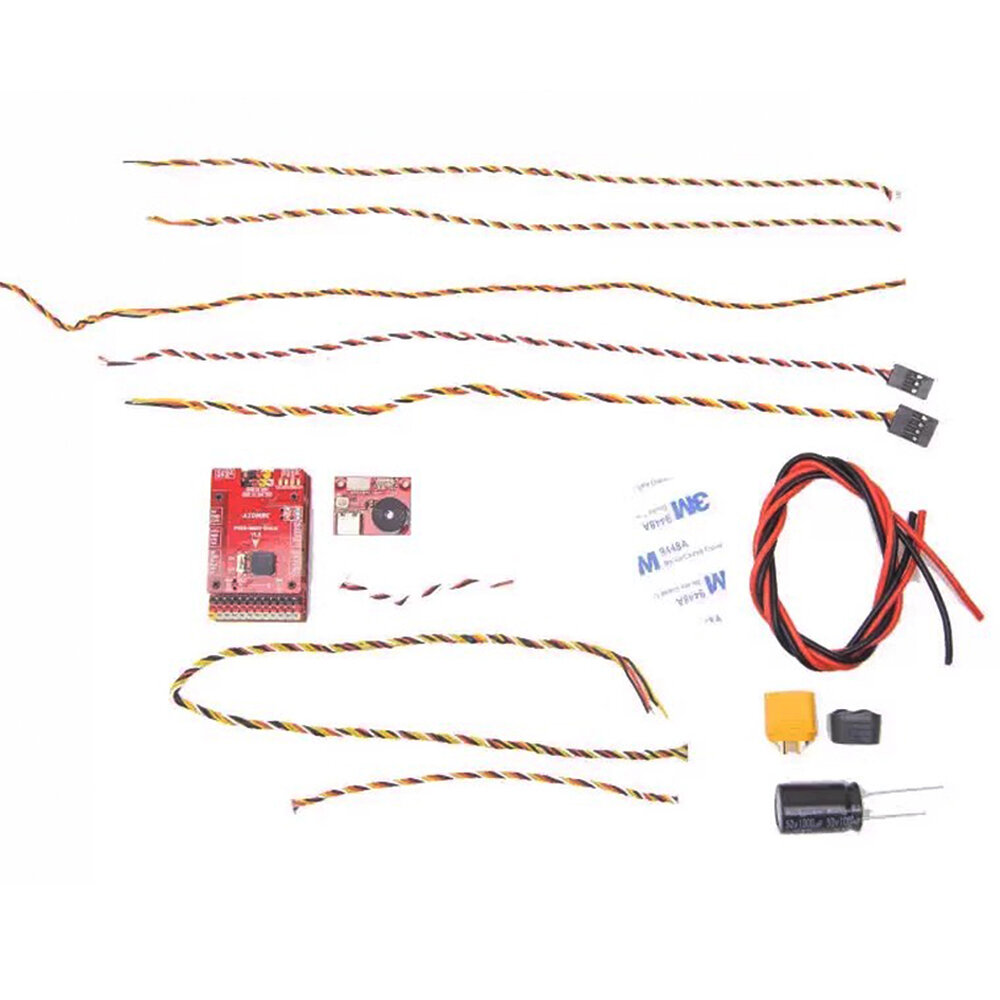

Package Included:
1 x F405 NAVI Delux V1.1
1 x F405 NAVI Delux PWR V1.1
1 x F405 NAVI Delux BLE V1.1
4 x M2*11 Copper Column
12 x 1.0 White Shock-Absorbing Pads
8 x M2*4.5*2.6 Flat Head Cross Screws
1 x F405 NAVI USB L=70mm
1 x F405 NAVI DJI L=400mm
1 x F405 NAVI GPS L=150mm
1 x F405 USB Small Board
1 x F405 USB Small Board 3M Adhesive
1 x F405 NAVI CAM 3PIN L=300mm
2 x F405 NAVI UART 4PIN L=300mm
1 x DuPont 4PIN L=300mm
1 x DuPont 3PIN L=300mm
1 x 16AWG Red and Black Power Cable L=300mm
1 x F405 NAVI Delux Flight Controller 3M Adhesive
1 x 50V 1000uf Capacitor
1 x XT60 Connector
