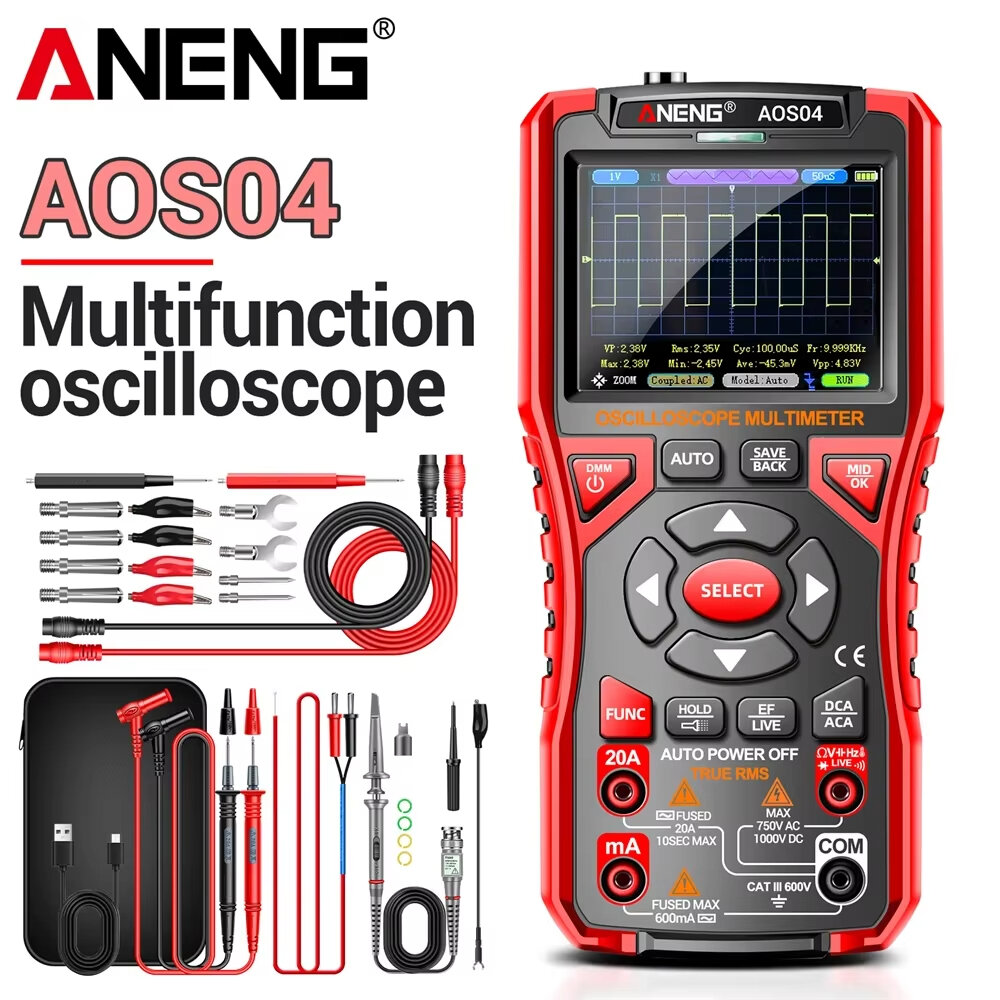

ANENG AOS04 Pro Digital Oscilloscope Smart Multimeter 50MS/s Sampling Rate 10MHz Bandwidth Waveform Storage NCV Detection USB Charging Portable
277
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296
Specifications:
DC Voltage Range: 0V-999.9V | Resolution: 1mV-100mV | Accuracy: ±(0.5%+3)
AC Voltage Range: 0V-750.0V | Resolution: 1mV-100mV | Accuracy: ±(1.0%+3)
DC Current Range: 0mA-20.00A | Resolution: 0.01mA-0.01A | Accuracy: ±(1.0%+3)
AC Current Range: 0mA-20.00A | Resolution: 0.01mA-0.01A | Accuracy: ±(1.2%+3)
Resistance Range: 0Ω-99.99MΩ | Resolution: 0.1Ω-10kΩ | Accuracy: ±(3.0%+5)
Capacitance Range: 0nF-99.99mF | Resolution: 0.001nF-0.01mF | Accuracy: ±(5.0%+5)
Frequency Range: 0Hz-9.999MHz | Resolution: 0.001Hz-0.001MHz | Accuracy: ±(0.1%+2)
Waveform Storage: 9 sets
Screen Display: VA reverse display
Material: ABS/Silicone
Power Supply: 3.7V/2500mAh rechargeable battery
Weight: 367g
Automatic Shutdown: Configurable (OFF/15/30/60/120 minutes)
Maximum Count: 9999 count
Features:
1.High Sampling and Bandwidth: Equipped with a 50MS/s sampling rate and 10MHz bandwidth, this device delivers precise and real-time waveform analysis for accurate measurements across various scenarios.
2.Dual Functionality: Combines a smart multimeter with a digital oscilloscope, enabling triple-display functionality for electrical parameters and waveform analysis in one tool.
3.User-Friendly Design: Lightweight, compact, and convenient handheld format with a silicone-protected shell for enhanced grip and portability during field work or operations.
4.Versatile Measurement Range: Supports NCV detection, capacitor testing, frequency measurement up to 9.999MHz, and resistance testing up to 99.99MΩ, meeting diverse testing needs for professionals and hobbyists alike.
5.Multilingual Interface: Offers both Chinese and English language options on the display, suitable for users from different regions and backgrounds.
Package Included:

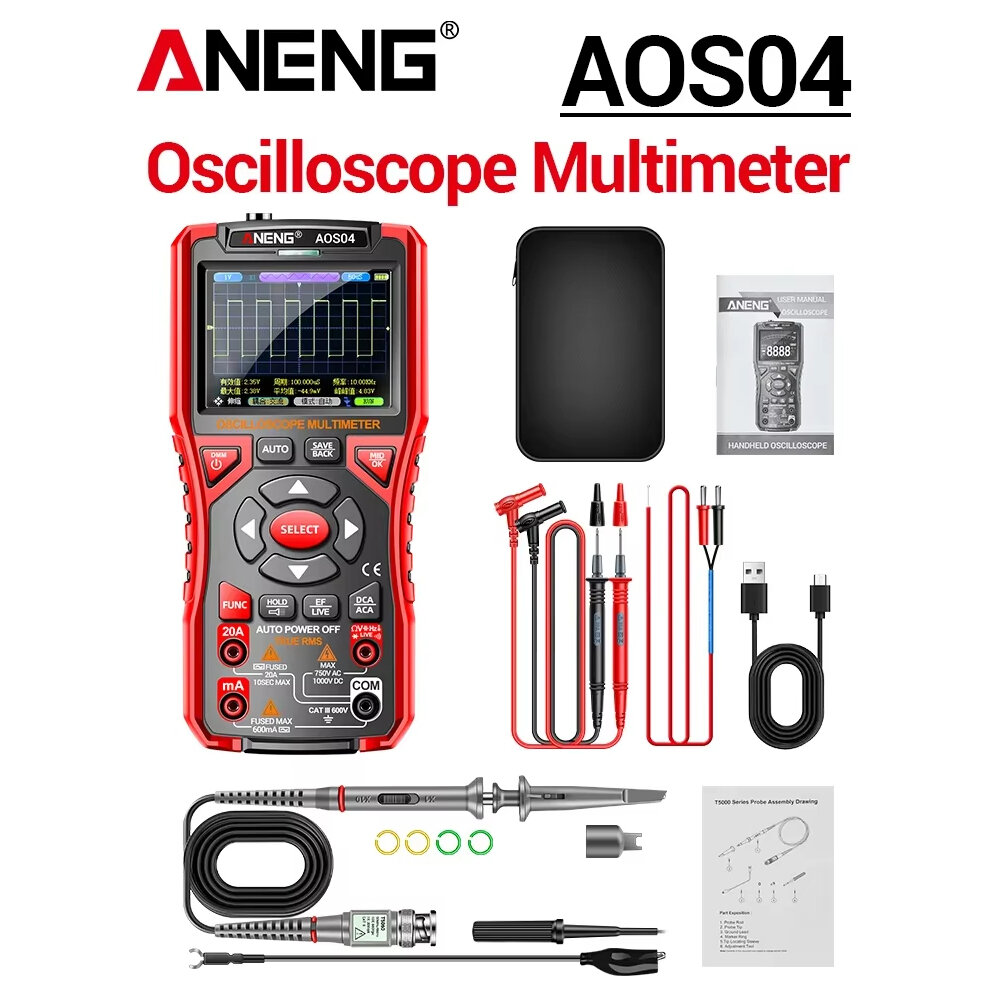

1 x ANENG AOS04 Set(Optional: Basic / Pro)
