4pcs RP-C10-ST RP-C18.3-ST Flexible Thin Film Pressure Sensor High Sensitivity Force Sensitive Resistor for Arduino Smart Home Industrial Automation
1
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296
Specifications:
RP-C10-ST:
Thickness: 0.4mm
Trigger force: 20g, default resistance is less than 200ku03a9
Pressure sensing range: 20g~2kg
Pressure action mode: static or dynamic (frequency within 10Hz)
Non-trigger resistance: greater than 10Mu03a9
Activation time: less than 0.01 seconds
Operating temperature: -40u2103~+85u2103
Hysteresis: +10%, (RF+-RF-)/FR+, 1000g force
Response time: <10ms

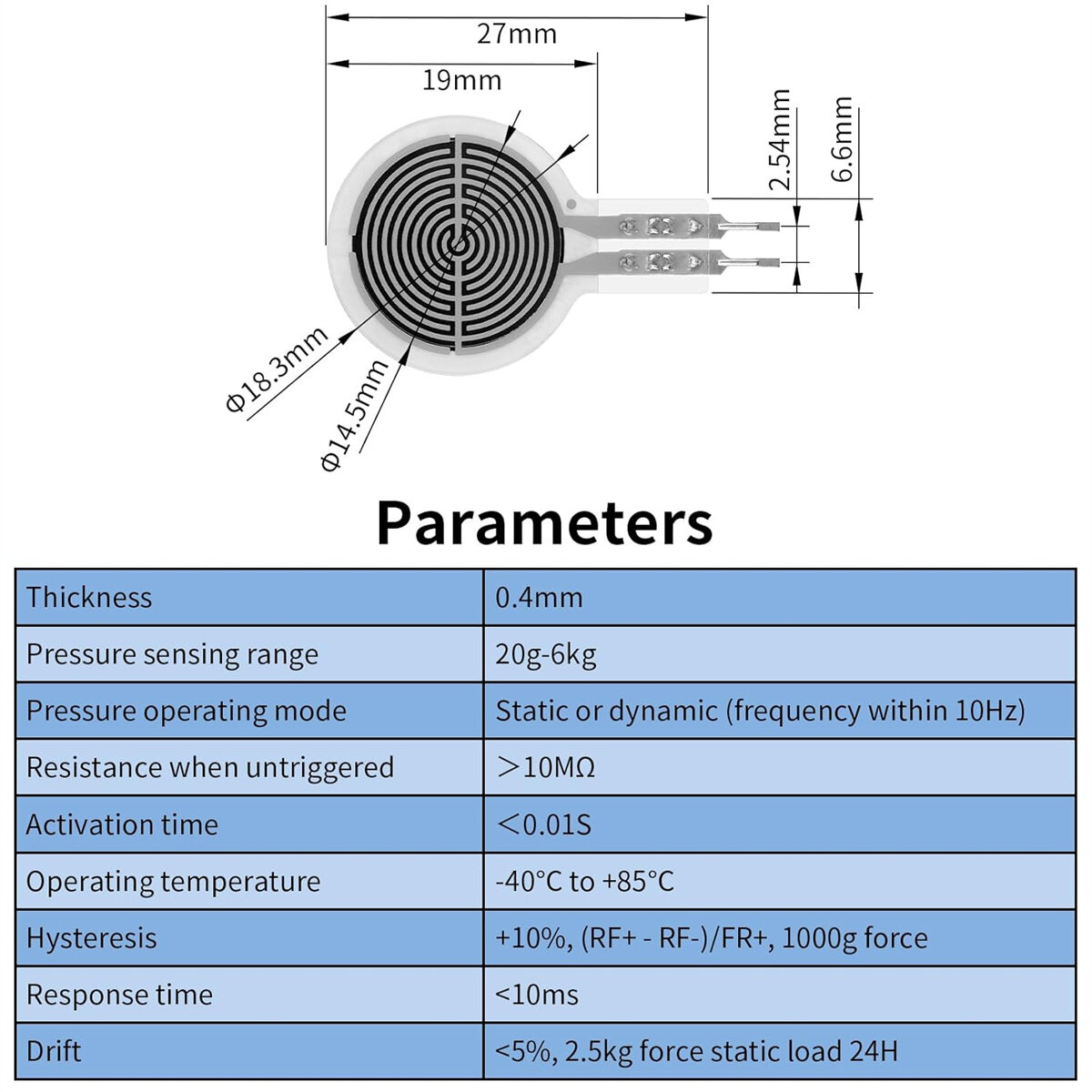

RP-C18.3-ST:
Thickness: 0.4mm
Pressure sensing range: 20g-6kg
Pressure operating mode: Static or dynamic (frequency within 10Hz)
Resistance when untriggered: >10Mu03a9
Activation time: <0.01s
Operating temperature: -40u00b0C to +85C
Hysteresis: +10%,(RF+- RF-)/FR+, 1000g force
Response time: <10ms
Drift: <5%, 2.5kg force static load 24H
Features:
1. The RP-C pressure sensor is a cutting-edge force-sensitive resistor that offers a fast response time of less than 10ms. With a slim profile of only 0.4mm, this thin-film pressure sensor is ideal for Arduino projects and other applications that require accurate pressure measurement in the range of 20g to 2kg.
2. The RP-C forces sensor is designed for over one million uses, ensuring stable performance with a resistance error of no more than 3%. Its high sensitivity, triggered at only 20g-force, makes it an ideal pressure sensor for Arduino enthusiasts and professionals.
3. The flexible design and static or dynamic pressure mode of this pressure sensor make it versatile. Whether for industrial use or DIY projects, the RP-C can accommodate static and dynamic pressures at frequencies up to 10Hz.
4. The default resistance of the RP-C pressure sensor is less than 200ku03a9, and its performance is stable and reliable. It operates perfectly in a temperature range of -40u00b0C to +85u00b0C, ensuring durability and accuracy in a variety of environments.
5. The RP-C pressure sensor is designed to be immune to electromagnetic interference (EMI) and electrostatic discharge (EDS), ensuring accurate and uninterrupted readings. Its hysteresis remains within +10% and exhibits minimal deviation after 24 hours of static loading of 1 kg.
Package Include:
4 x RP-C Pressure Sensor(RP-C10-ST/RP-C18.3-ST Optional)
