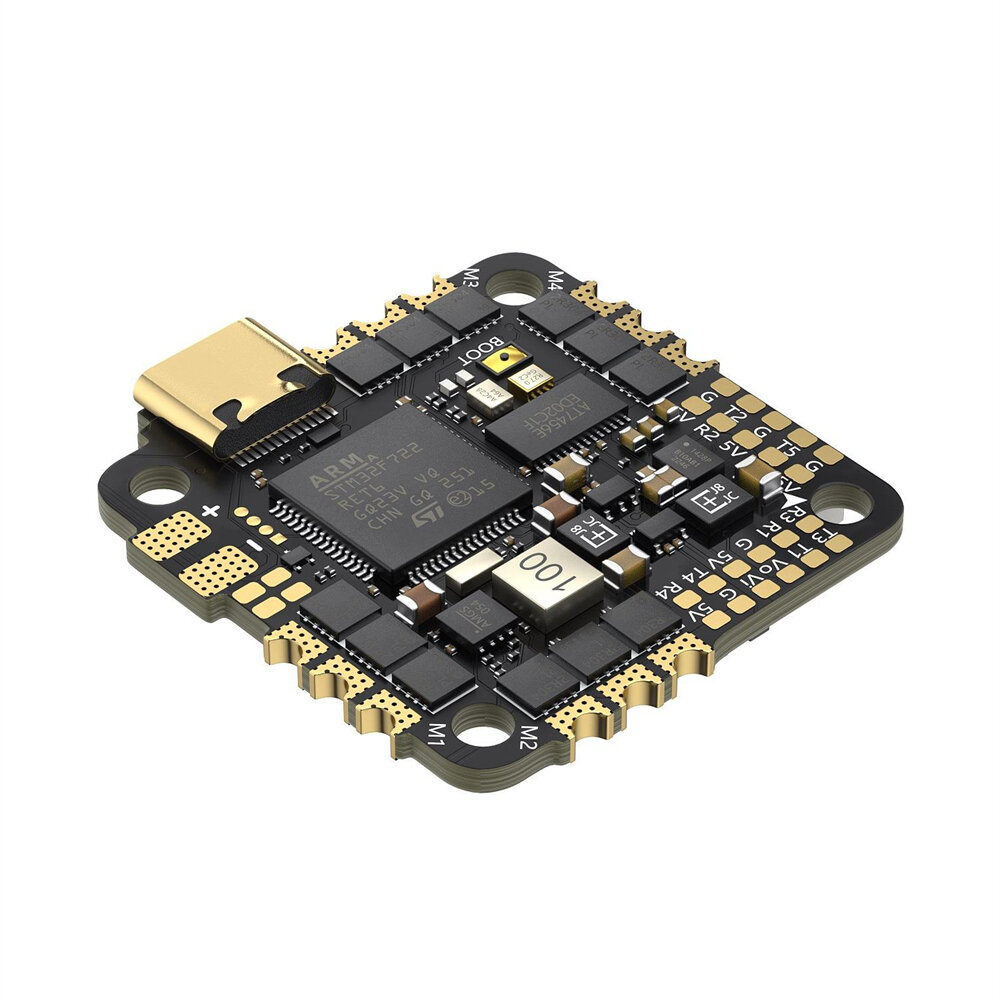

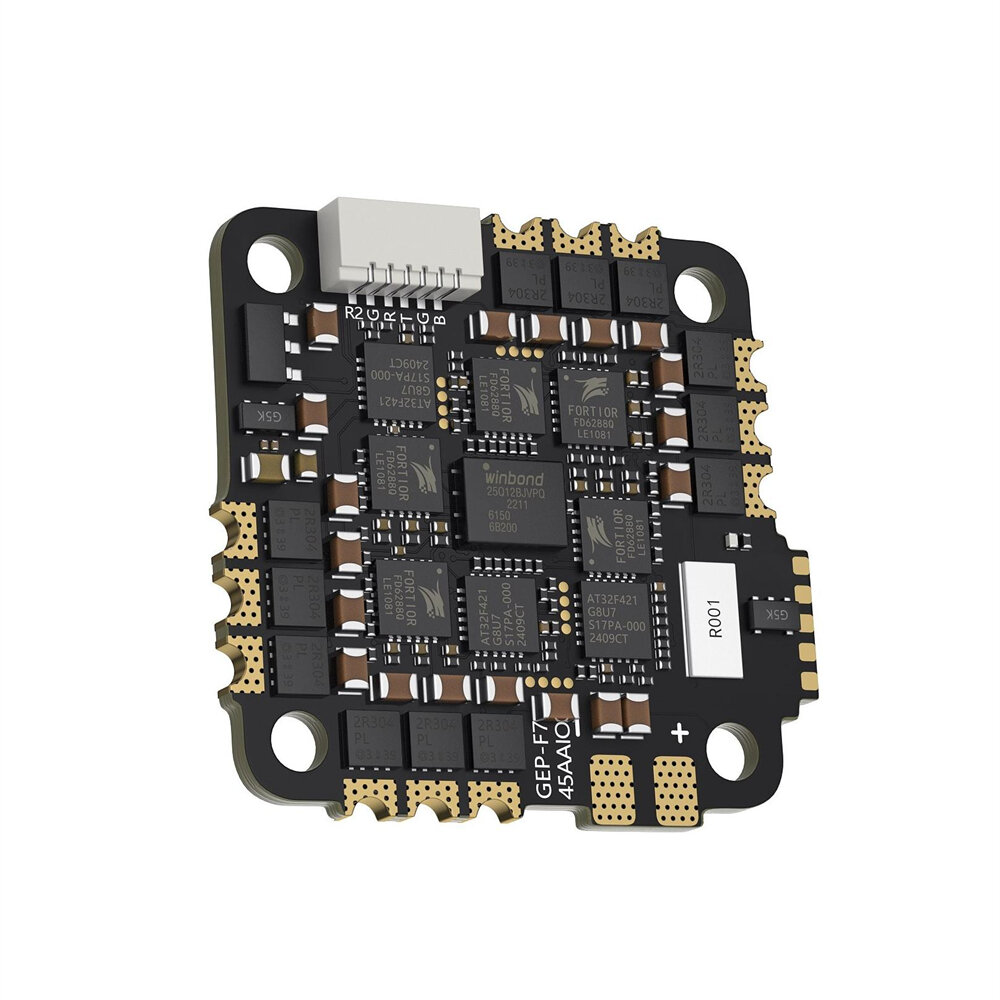

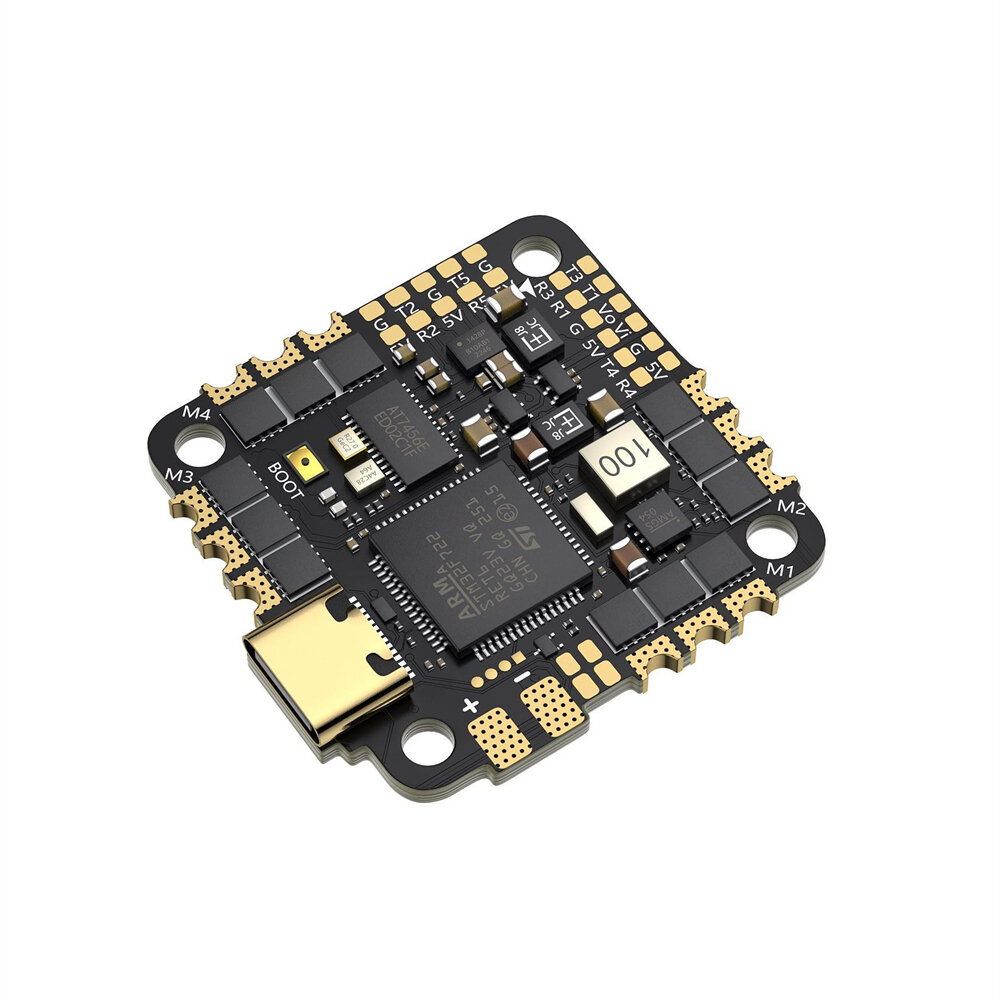

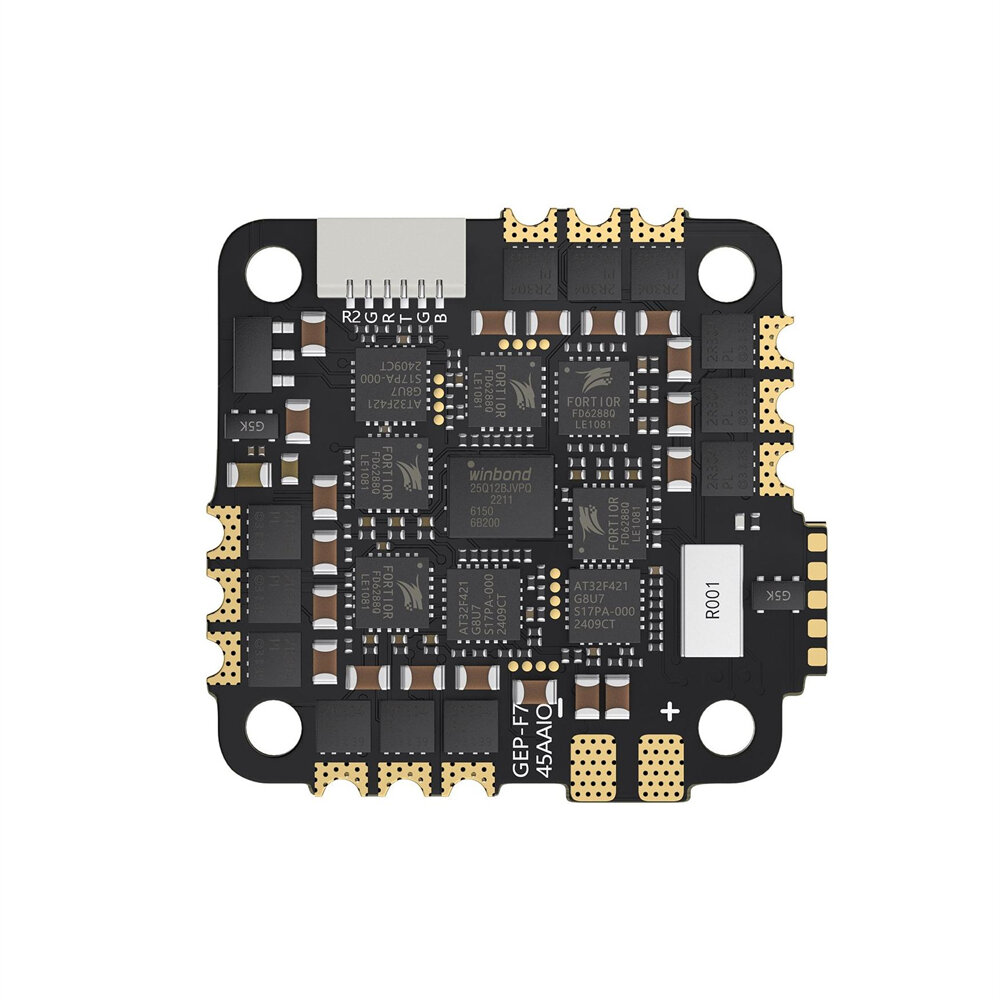

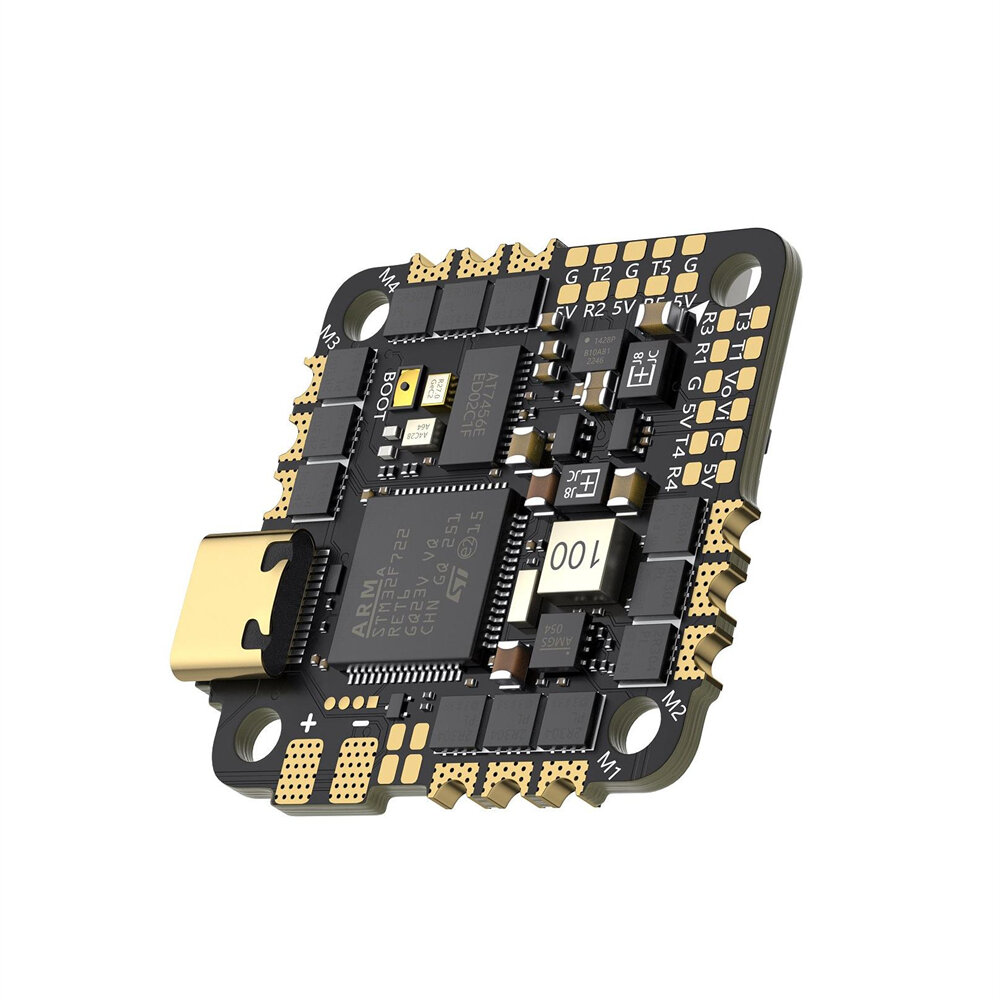

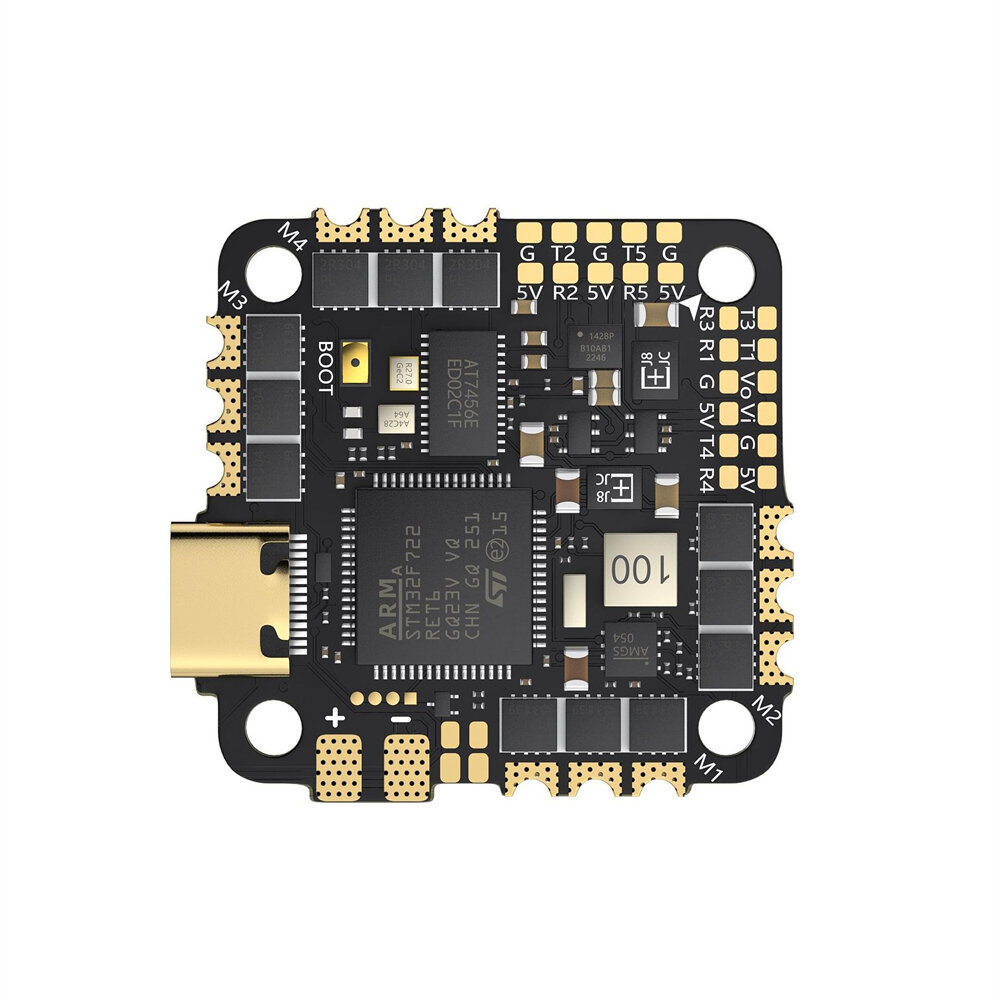

The TAKER F722 45A 32Bit AIO features the STM32F722 MCU paired with the ICM42688-P (SPI) gyro, delivering powerful performance and fast processing.
It offers 5 full UART ports to support various external devices. A dedicated 6-pin port on the bottom allows direct plug-in for HD VTXs, reducing soldering and simplifying installation.
The 32-bit ESC firmware provides smooth control. Supports 2-6S batteries input, 45A continuous current, and 55A burst (10s). It also supports OSD tuning, buzzer, LED, and more, all in a lightweight 9.2g package.
Feature:
- Smooth throttle response with 32-bit ESC firmware.
- Built-in barometer, compatible with INAV firmware.
- Equipped with 42688-P gyro for stable and reliable performance.
- Supports 2-6S battery input, 45A continuous current, 55A burst (10s).
- Direct plug-in support for HD VTXs, no soldering, and easy installation.
- Powered by STM32F722 MCU for faster processing.
- Integrated 16MB Blackbox for flight data logging.
- Supports OSD tuning, buzzer, LED, and more.
- Features 5 full UART ports for connecting various external devices.
Specification:
Brand: GEPRC
Item Name: TAKER F722 45A 32Bit AIO
MCU: STM32F722
IMU: ICM 42688-P (SPI)
Firmware Target: GEPRC_F722_AIO
Blackbox: 16Mb on-board flash memory
OSD: Betaflight OSD w/ AT7456E chip
Uart: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
Buzzer: YES
LED: YES
USB: Type-C USB
BEC Output: 5V@1A
ESC: 32Bit 45A
Continuous Current: 45A
Burst Current: 55A(10A)
Input Voltage: 2~6S (LIPO)
ESC Protocol: Dshot600, Oneshot, Multishot
Dimension: 35mm * 33.5mm
Mounting Hole Size: 25.5 mm * 25.5mm φM3 damping to M2 screw
Weight: 9.2g
Package Included:
1x TAKER F722 45A AIO
1x XT30-18AWG wire-7cm
1x 35V 220μF capacitor
1x SH1.0-6Pin to GH1.25-8Pin adapter cable
1x SH1.0-6Pin cable
8x M2x6.5mm FC dampening balls (black)
