25.5x25.5mm DarwinFPV FoldApe4 ELRS3.0 F411 Bluejay MPU6500 AIO F4 Flight Controller 1-3S 15A ESC for Long Range RC FPV Racing Drone
277
Shipping to: United States |
Express delivery: 7-12 business days |
Standard delivery: 15-25 business days
Guaranteed Safe Checkout
Free Gift
Shipping Policy
Return PolicyFree Gift
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Shipping Policy
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Return & Exchange Policy
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +447549870296
2.Refund Policy
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +447549870296Summary:

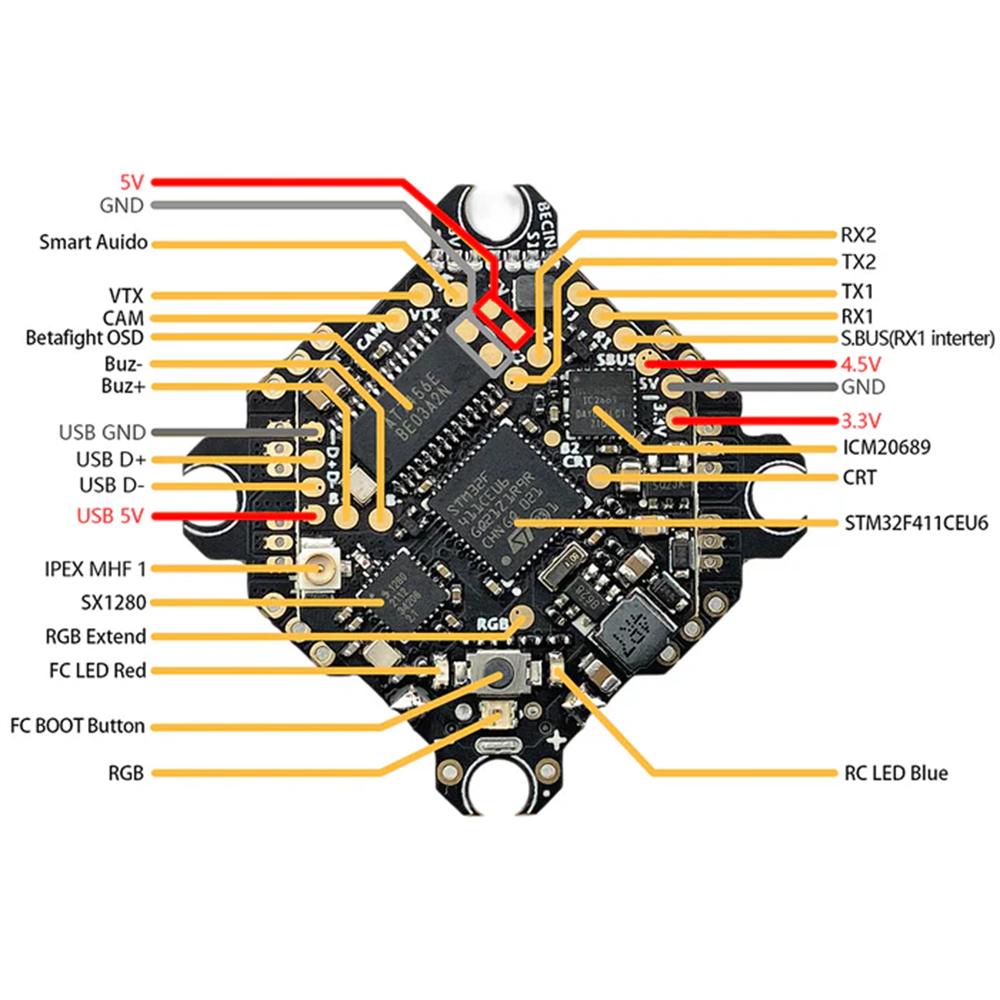

This is the updated version for Darwin AIO. We integrated the ELRS receiver on the FC to make it easier to apply to the mini Drone. ESC adopts Bluejay firmware and is compatible with 1-3S Lipo input, and the maximum current reaches 17A.FC provides 2 sets of Uarts interfaces and at the same time provides various external devices interfaces such as SBUS, Softserial, CTR, BUZZ, RGB and so on , which perfectly solves the problem of insufficient quantity of F411 Uarts.
Learn about ExpressLRS:
ExpressLRS is an open source Radio Link for Radio Control applications, all of you can find these projects on GitHub.
it is based on the fantastic Semtech SX127x/SX1280 LoRa hardware combined with an Espressif or STM32 Processor. Using LoRa modulation as well as reduced packet size it achieves best in c
lass range and latency. It achieves this using a highly optimized over-the-air packet structure, giving simultaneous range and latency advantages. It supports both 900 MHz and 2.4 GHz links, each with their own benefits. 900 MHz supports a maximum of 200 Hz packet rate, with higher penetration. Under 2.4GHz frequency bands,OpenTX system supports amazing 500Hz.
Specifications:
Brand: DarwinFPV
Model: F411 15A ELRS AIO
Input Voltage: 1-3S Lipo
FC Main Control Chip: STM32F411
Gyro: MPU6500
OSD: AT7456E
Black Box: None
Barometer: None
Bluetooth: None
Receiver: On board SPI ELRS 3.x Version 2.4G Receiver
BEC: 5V/2A
USB Interface: 1x Micro USB
Serial Port: UART1uff0cUART2
Soft Serial Port: None
RSSI: None
RGB: Onboard 1 xRGB
Buzzer: 1x BB-
FC Firmware: DARWINF4SX1280HD(BetaFlight)
ESC Main Control Chip: EFM8BB21 (8bit 48MHz)
Continuous Current: 4x15A
Peak Current: 4x17A (5S)
Support Throttle Protocol: Dshot 150/300/600
Galvanometer: None
Telemetry: None
ESC Firmware: S_H_50 (BlueJay)
ESC Power Cable: #20AWG /70mm
Mounting Dimensions: 25.5x25.5mm
Dimensions: 31x31x7mm

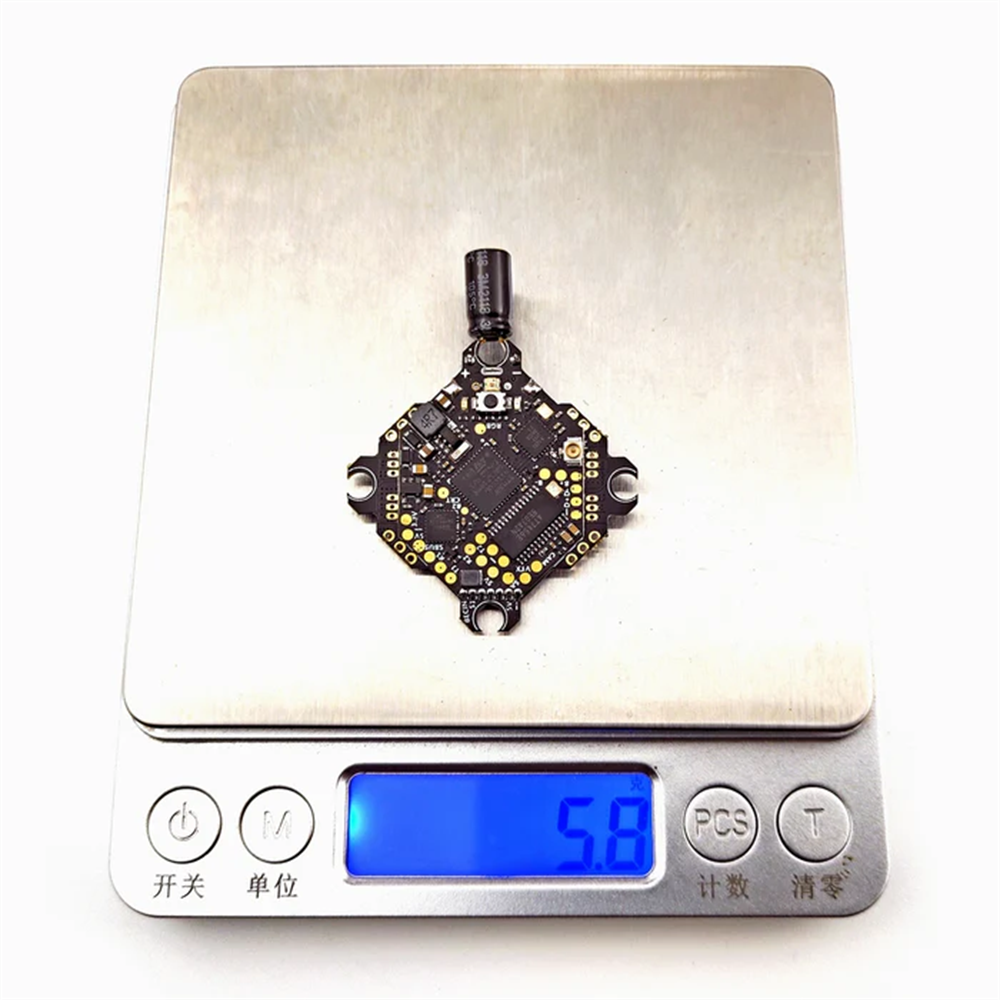

Weight: 5.4±2g
Packing List:
1 x DarwinFPV F411 15A ELRS AIO
5 x Motor socket (SH1.25 female)
1 x Power cord (#20AWG /70mm)
1 x XT30
5 x M2*6.6 shock absorber ball
1 x 2.4G RF113 IPEX1 86mm silver-plated antenna
1 x Spare screw package (M2*8)
1 x Sticker
